q FM antenna terminals (ANTENNA)
Used to connect FM antennas (vpage38).
w Speaker terminals (SPEAKERS)
Used to connect speakers (vpage23).
e Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors
(vpage33).
r AC inlet (AC IN)
Used to connect the power cord (vpage40).
t HDMI connectors
Used to connect devices equipped with HDMI connectors
(vpage30, 31, 33, 34).
y Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors
(vpage33).
u Video connectors (VIDEO)
Used to connect devices equipped with video connectors
(vpage33, 34).
i Network connector (NETWORK)
Used to connect this unit to the network (vpage39).
o PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier or an external
power amplifier (vpage24, 111).
Q0 Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors
(vpage33, 34).
NOTE
•Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.

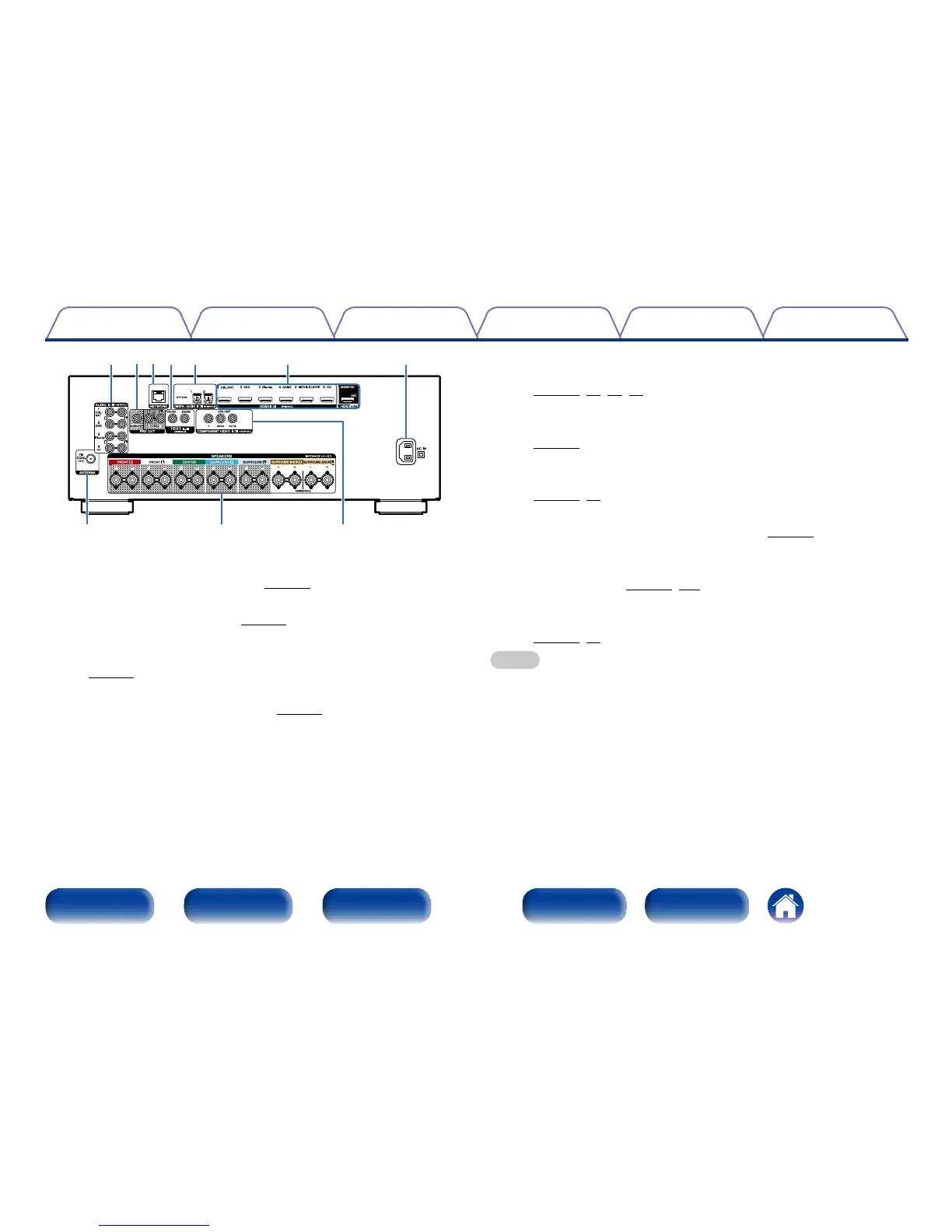

t rQ0
