6159930320_06_02/2017 - 13 -

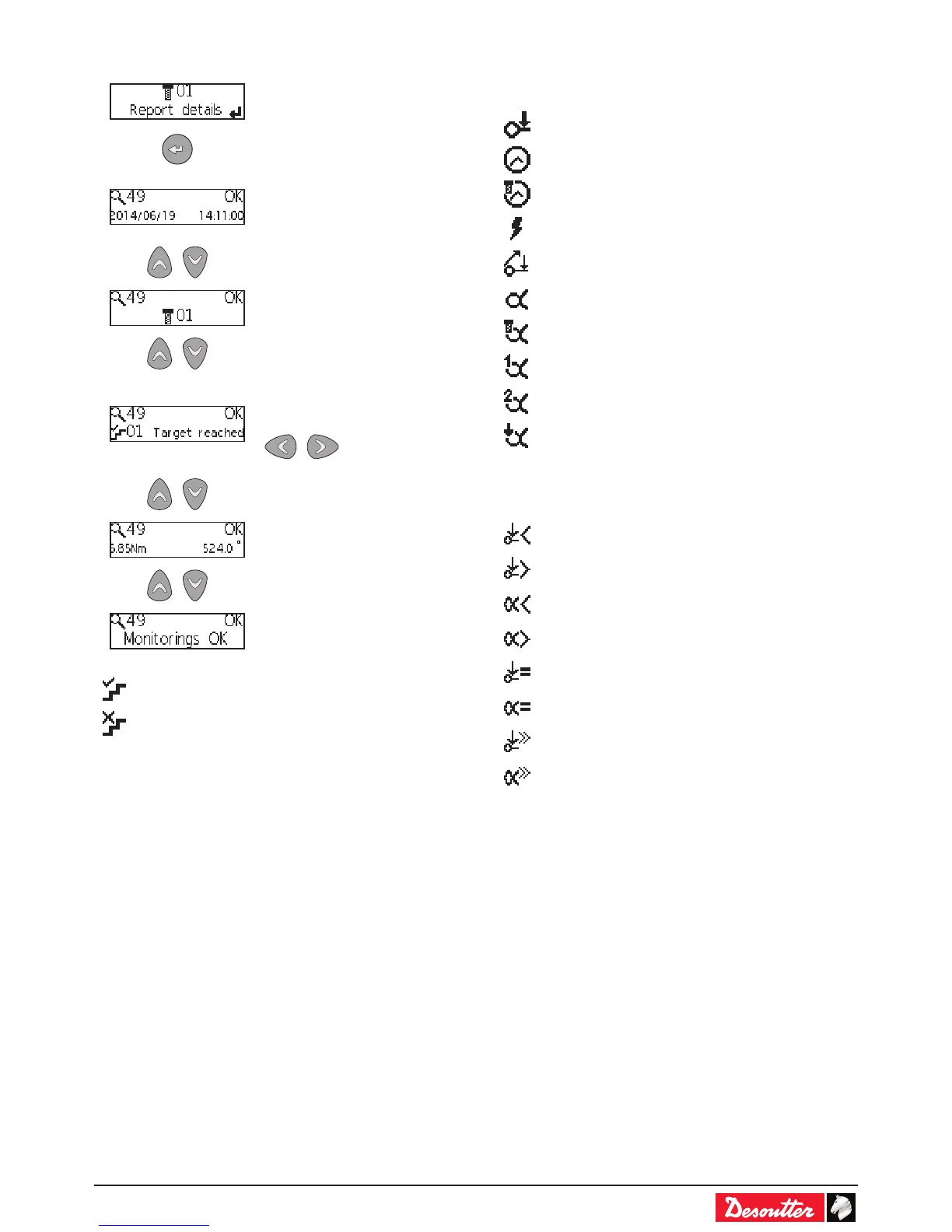

5.3 - Report details
- Result number
- Report status
- Date
- Time
- Pset number
- Step number
- Stop source
to display the
message when
too long.
The last step is done.
The Pset has stopped before the last step.
OK The report is successful.
NOK The operation has failed.
5.4 - Monitoring symbols
Monitorings OK
Torque
Time
Overall time
Current
Torque rate
Angle
Overall angle
Second part angle 1
Second part angle 2
Rundown angle
5.5 - Trend symbols
The torque is below the minimum torque.
The torque is above the maximum torque.
The angle is below the minimum angle.
The angle is above the maximum angle.
The torque is in the tolerance of the target torque.
The angle is in the tolerance of the target angle.
The torque is above the assembly torque limit.
The angle is above the assembly angle limit.
