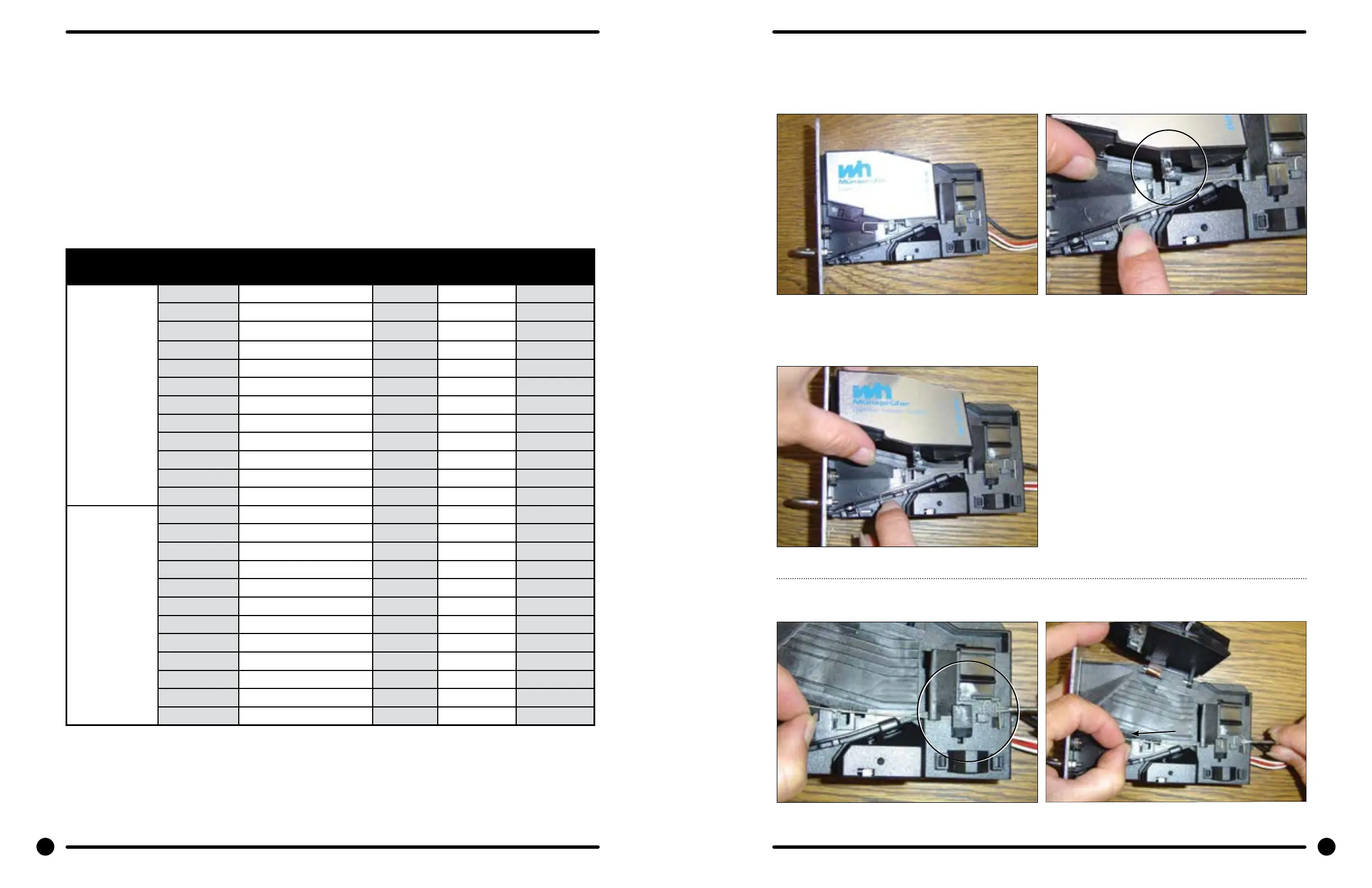

1. Instructions to open the ap of the coin selector
Maintenance Instructions
Electronic Acceptor
Original situation Move spring downwards to free the catch.
NOTE:
• Do not lift the spring
• Do not over bend the spring in any direction.
Open the ap of the coin selector.
2. Assembly instructions to change a spring
Lift the right end of the spring by means of a screw
driver.
Pull the spring approximately 3 mm to the left.
118 119
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
Electronic Acceptor Coin Drop
Setting the electronic coin acceptor switches
Some washer models come equipped with an electronic coin acceptor. Follow the instructions below for
setting the switches for the desired country and currencies.
1. The electronic coin acceptor has switch settings depending on the coins and country. See the table
below for available values of the left and right coin inputs for the available countries.
WARNING: turn power o before and leave power o when changing the switches of the
electronic coin acceptor.
2. Turn power back on and test coins to ensure proper operation.
NOTE: Coins and tokens in the left coin column will result in one pulse to the left coin input.
NOTE: The $1, 500¥, 50NT, and $10 coins in the right coin column will result in one pulse to
the right coin input, while the $2 coins will result in two pulses to the right coin input.
Note: Acceptance of multiple coins per country and multiple tokens is allowed. Only the down/
o setting for each coin and token is required to accept that coin or token.
Acceptor
P/N
Country Left Coin
Right
Coin
SWs 1-8 SWs 9-16
9021-028-001 Canada 25¢
↓↓↑↑↑↑↑↓ ↓↑↑↑↑↑↑↓
Canada $1
↑↑↓↓↓↑↑↓ ↓↑↑↑↑↑↑↓
Canada $2
↑↑↑↑↑↓↓↓ ↓↑↑↑↑↑↑↓
↓↓↑↑↑↑↑↓ ↑↓↑↑↑↑↑↓
↑↑↓↓↑↓↓↓ ↑↓↑↑↑↑↑↓
↓↓↑↑↑↑↑↓ ↑↑↓↑↑↑↑↓
↑↑↓↓↑↓↓↓ ↑↑↓↑↑↑↑↓
↓↓↑↑↑↑↑↓ ↑↑↑↓↑↑↑↓
Greenwald 118-1 Token
↑↑↑↑↑↑↑↓ ↑↑↑↑↓↑↑↓
Greenwald 118-5 Token
↑↑↑↑↑↑↑↓ ↑↑↑↑↑↓↑↓
U.S.A. 25¢
↓↓↑↑↑↑↑↓ ↑↑↑↑↑↑↓↓
U.S.A. $1
↑↑↓↓↑↑↑↓ ↑↑↑↑↑↑↓↓
9021-011-001 Australia 10¢
↓↓↑↑↑↑↑↓ ↑↓↑↑↑↑↑↓
Australia 20¢
↑↑↓↓↑↑↑↓ ↑↓↑↑↑↑↑↓
Australia $1
↑↑↑↑↓↓↑↓ ↑↑↓↑↑↑↑↓
Australia $2
↑↑↑↑↑↑↓↓ ↓↑↓↑↑↑↑↓
New Zealand 10¢
↓↓↑↑↑↑↑↓ ↑↓↑↑↑↑↑↓
New Zealand 20¢
↑↑↓↓↑↑↑↓ ↑↓↑↑↑↑↑↓
New Zealand $1
↑↑↑↑↓↓↑↓ ↑↑↑↓↑↑↑↓
New Zealand $2
↑↑↑↑↑↑↓↓ ↓↑↑↓↑↑↑↓
Hong Kong $5
↓↓↓↓↑↑↑↓ ↑↑↑↑↓↑↑↓
Hong Kong $10
↑↑↑↑↓↓↑↓ ↑↑↑↑↓↑↑↓
Greenwald 118-1 Token
↑↑↑↑↑↑↑↓ ↑↑↑↑↑↓↑↓
Greenwald 118-5 Token
↑↑↑↑↑↑↑↓ ↑↑↑↑↑↑↓↓
To Next Page
