Dexter Laundry WCAD Series User Manual

183
182 183
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
Notes
2
1
5
3
5
6
4

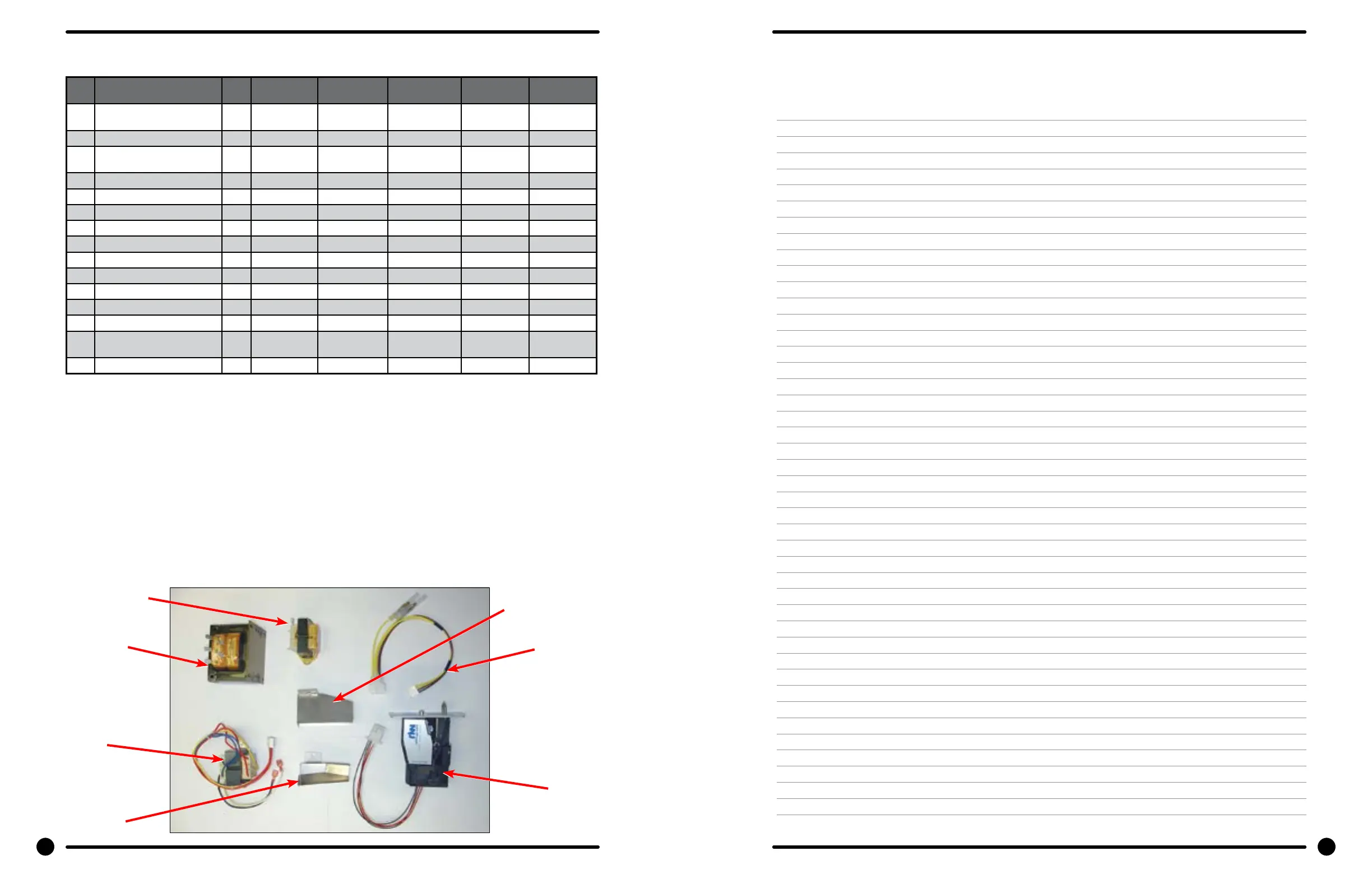

Transformers and Coin Handling -21 Models
KEY Part Description QTY WCAD-
20KCS-21
WCAD20KCS-
21SZ
WCAD30KCS-21
WCAD30KCS-
21SZ
WCAD-
40KCS-21
* Wire Assembly -Orange/
White
1 8220-001-235 8220-001-235 8220-001-235 8220-001-235 8220-001-235
* Wire Assembly -Blue 1 8220-001-338 8220-001-338 8220-001-338 8220-001-338 8220-001-338
* Label-Warning, Electronic
Coinacceptor
1 8502-730-001 8502-730-001 8502-730-001 8502-730-001 8502-730-001
* Lockwasher-Exttooth,#6 4 8641-582-005 8641-582-005 8641-582-005 8641-582-005 8641-582-005
1 Transformer-120/18vac 1 8711-015-001 8711-015-001 8711-015-001 8711-015-001 8711-015-001
2 Transformer, Control 1 8711-004-002 8711-004-002 8711-004-002 8711-004-002 8711-004-002
3 Transformer, Secondary 1 8711-009-002 8711-009-002 8711-009-002 8711-009-002 8711-009-002
4 Acceptor-Coin,Electronic 1 9021-011-001 9021-011-001 9021-011-001 9021-011-001 9021-011-001
5 Chute-Coin 1 9119-031-001 9119-031-001 9119-030-001 9119-028-001 9119-028-001
* Wiringlabel-Schematic 1 9506-405-001 9506-409-001 9506-413-001 9506-415-001 9506-423-001
* Wiringlabel-Diagram 1 9506-406-001 9506-410-001 9506-414-001 9506-414-001 9506-424-001
* Screw-Hx 10bx1/4 7 9545-008-001 9545-008-001 9545-008-001 9545-008-001 9545-008-001
* Screw-Hx ,8bx1/4 6 9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001
6 Harness-Electronic Coin Ac-
ceptor
1 9627-845-001 9627-845-001 9627-845-001 9627-845-001 9627-845-001
* Controlsassembly -Trough 1 9857-150-007 9857-157-009 9857-151- 013 9857-151-014 9857-152-007
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
