Dexter Laundry WCAD Series - Page 93

Double Load 20lb Coin N on-Express: 230/50/1 Voltage

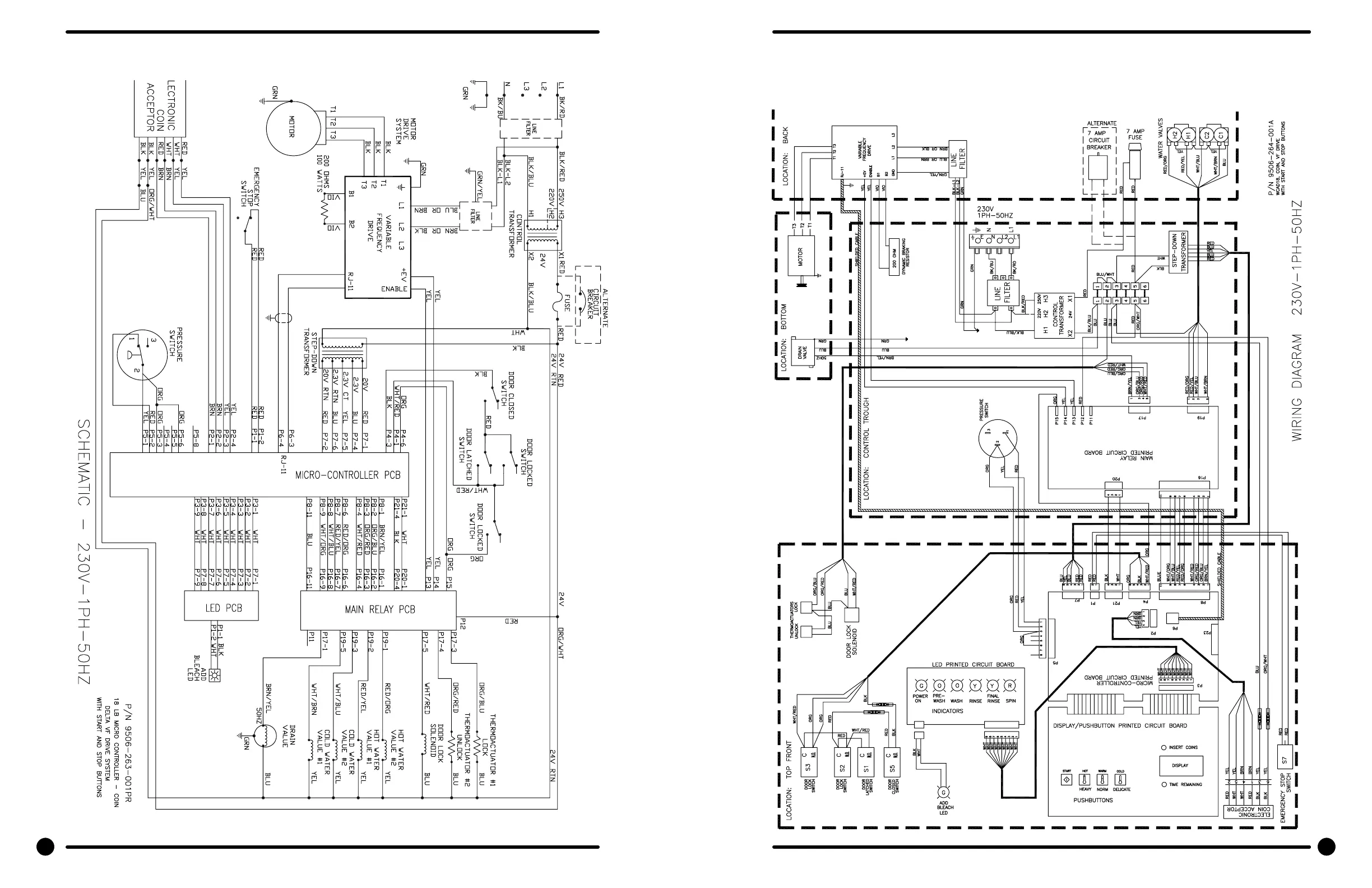

Schematic
Double Load 20lb Coin Non-Express: 230/50/1 Voltage
Diagram
184 185
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
