Dexter Laundry WCAD Series - Page 94

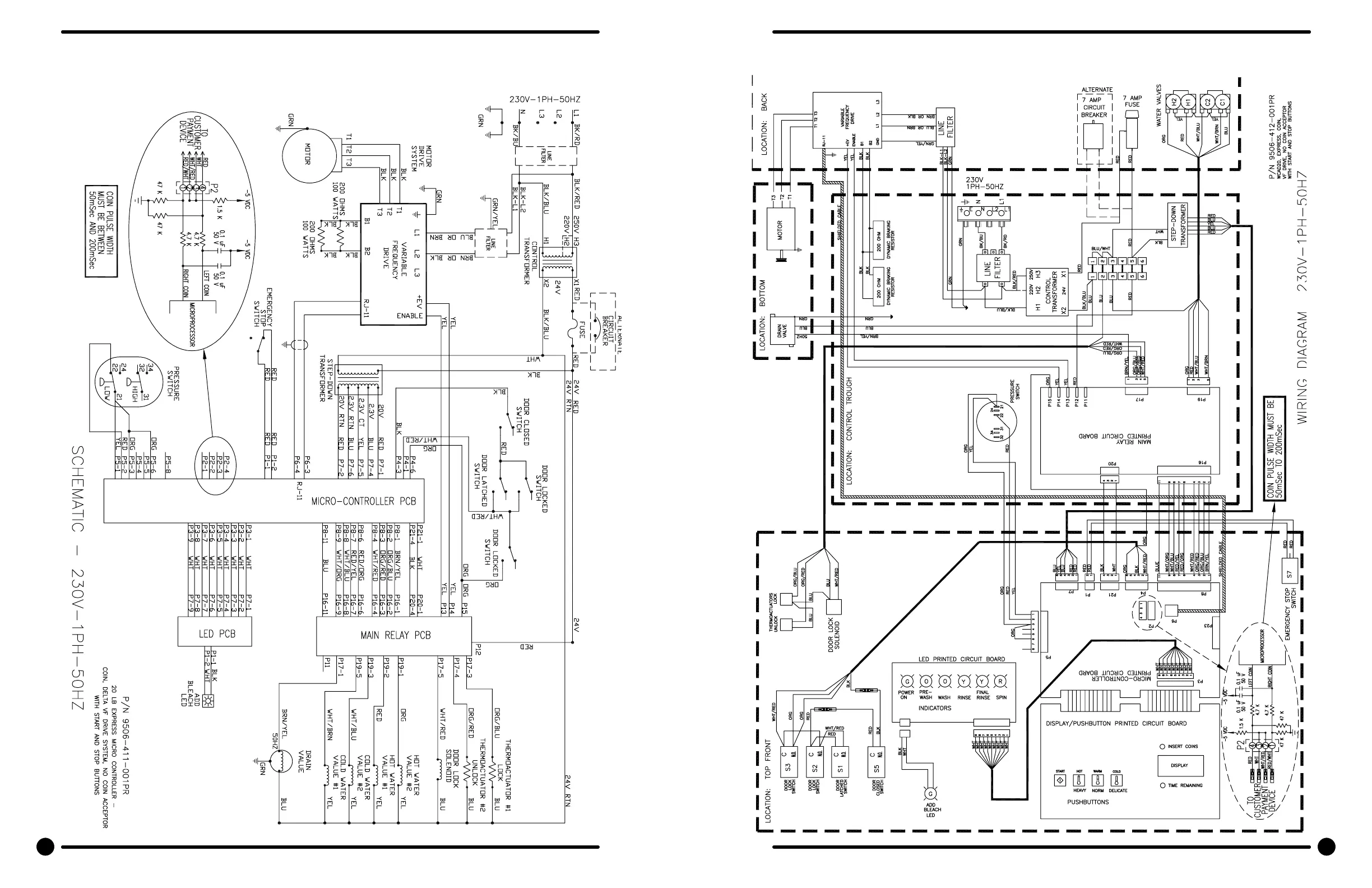

Double Load 20lb Express: 230/50/1 Voltage Schematic Double Load 20lb Express: 230/50/1 Voltage Diagram
186 187
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
