10.1.2.5 Watches - Logic Monitor
With the
Logic View
window you can monitor all logics of the currently loaded DXConfig device.
For clearness, you can create several views including logics. Click to generate a new view, deletes a view and with
you can rename it. All views are available in the
Logic Monitor Set
list.

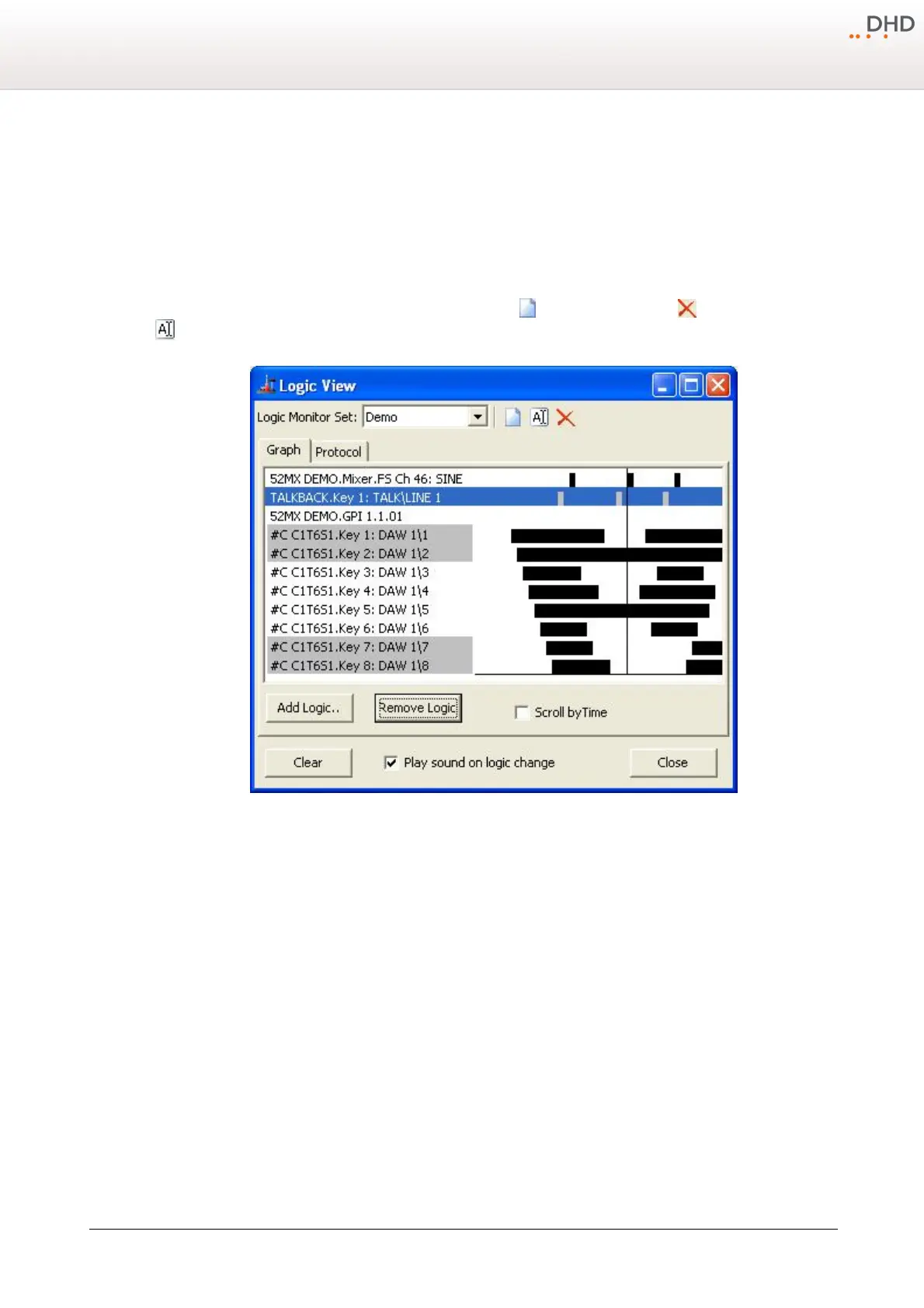

Logic states, shown in a timeline.
The
Graph
tab shows all logics in a time line. Click
Add Logic
to open the
Logic Sources
window and to add a
new logic to the view.
Remove Logic
deletes the selected logic from the list. On the left hand side of the window you
can find the labels of all inserted logics. The graphical view next to these labels shows the state of the logics at different
times. The intervals of the on/off periods are not related to the time, but to each other. For example you can see that
DAW
1\1
was activated first, afterwards
DAW 1\2
was activated and so on. All labels with a grey background are currently
active.
If you select the
Scroll by Time
check box, the history is not shown and you will only see, which logics are currently
active. Moreover, it is possible to clear the history and to activate a sound that signalises the change of logic states.
Instead of the graphical view, you can choose the
Protocol
tab. Here, you can find the changes of the logic states and
the absolute time the changes did occur.
