8 Connecting modules to the XS Core
The control module and I/O boxes have to be connected to the APC ports of the 52/XS Core 52-1804. It is important to
connect the peripheral modules to the correct APC port.
Important
Use always shielded CAT5 or CAT6 ethernet cables (at least S/UTP, F/UTP or SF/UTP) to connect
these modules to the XS core.

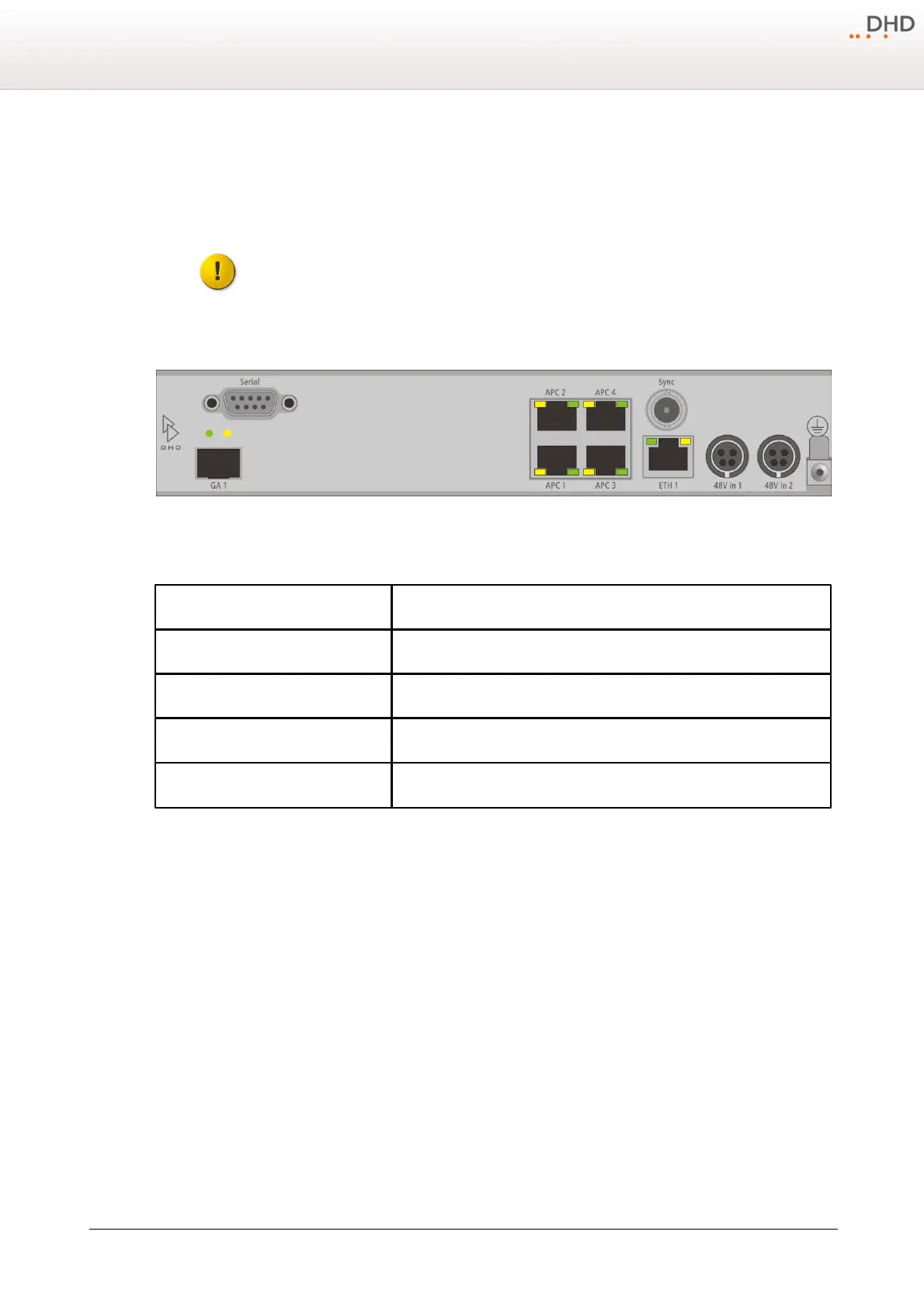

Rear view of 52-1804
In the following table you can find the assignment of the control module, I/O boxes and DeviceLinks to the APC ports.
Name of the APC port
52-1804
APC 1
52-1104 52/DX control module
APC 2
I/O box 3 / DeviceLink 3
APC 3
I/O box 2 / DeviceLink 2
APC 4
I/O box 1 / DeviceLink 1
