area
option
description
IOModule-X.
<port>
General
Purpose
Inputs (GPI)
Type of
Signal
Shows the general signal type of the port.
Enter Label
Enter a distinctive name for the selected input.
IOModule-X.
<port>
General
Purpose
Inputs
(GPO)
Type of
Signal
Shows the general signal type of the port.
Enter Label
Enter a distinctive name for the selected input.
Select
Source
You can assign a logic sources to the selected GPO.
Click the
Source
button, the
Logic sources
window opens. Select a logic source, and
click
Assign
.
10.5 Console
On the
Console
page you can configure keys, TFT views and the OLED display on the central module.

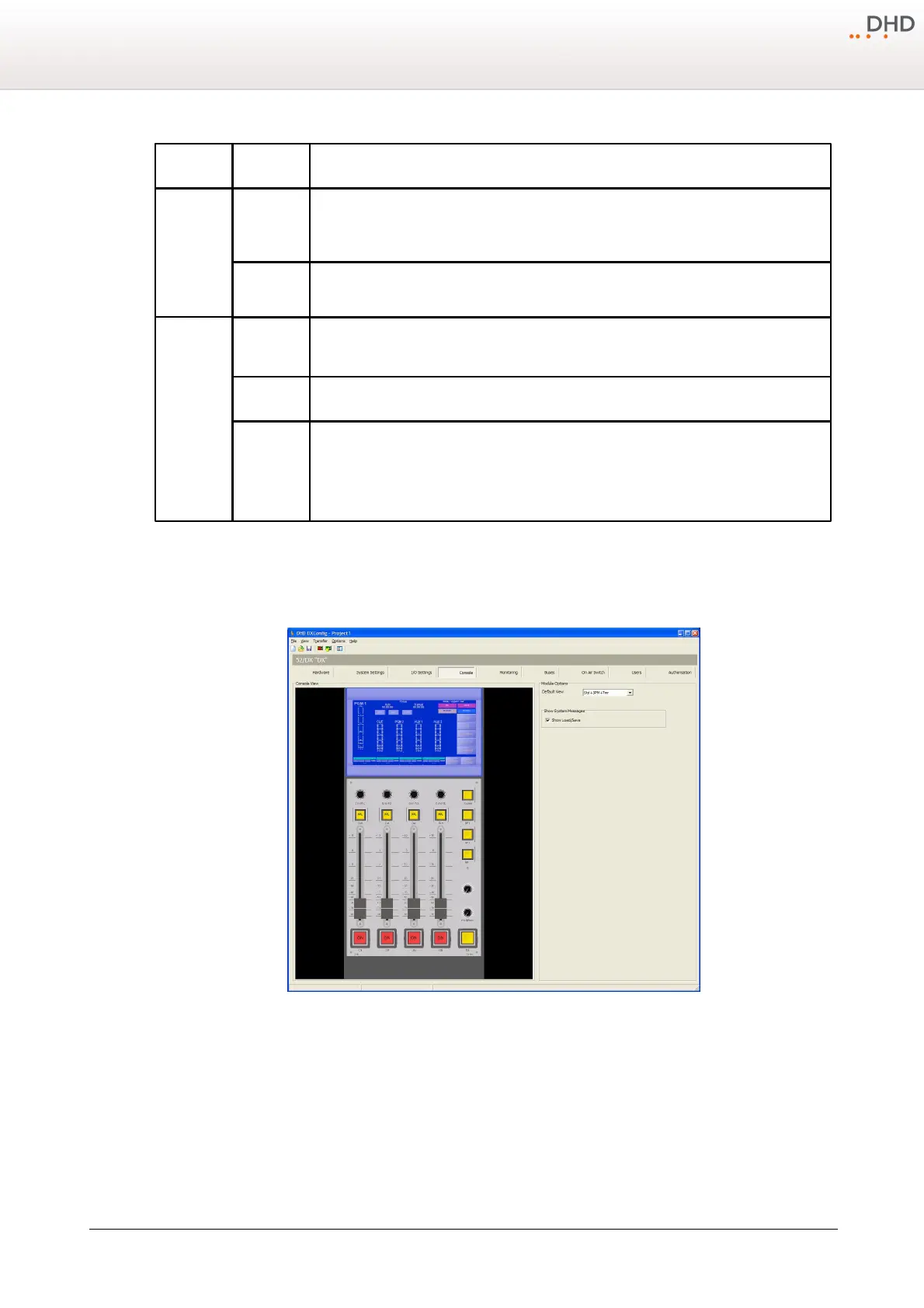

DXConfig Software - Console
To configure an element, select it in the
Console View
area. Its options are shown in the area to the right of the
Console View
area.
