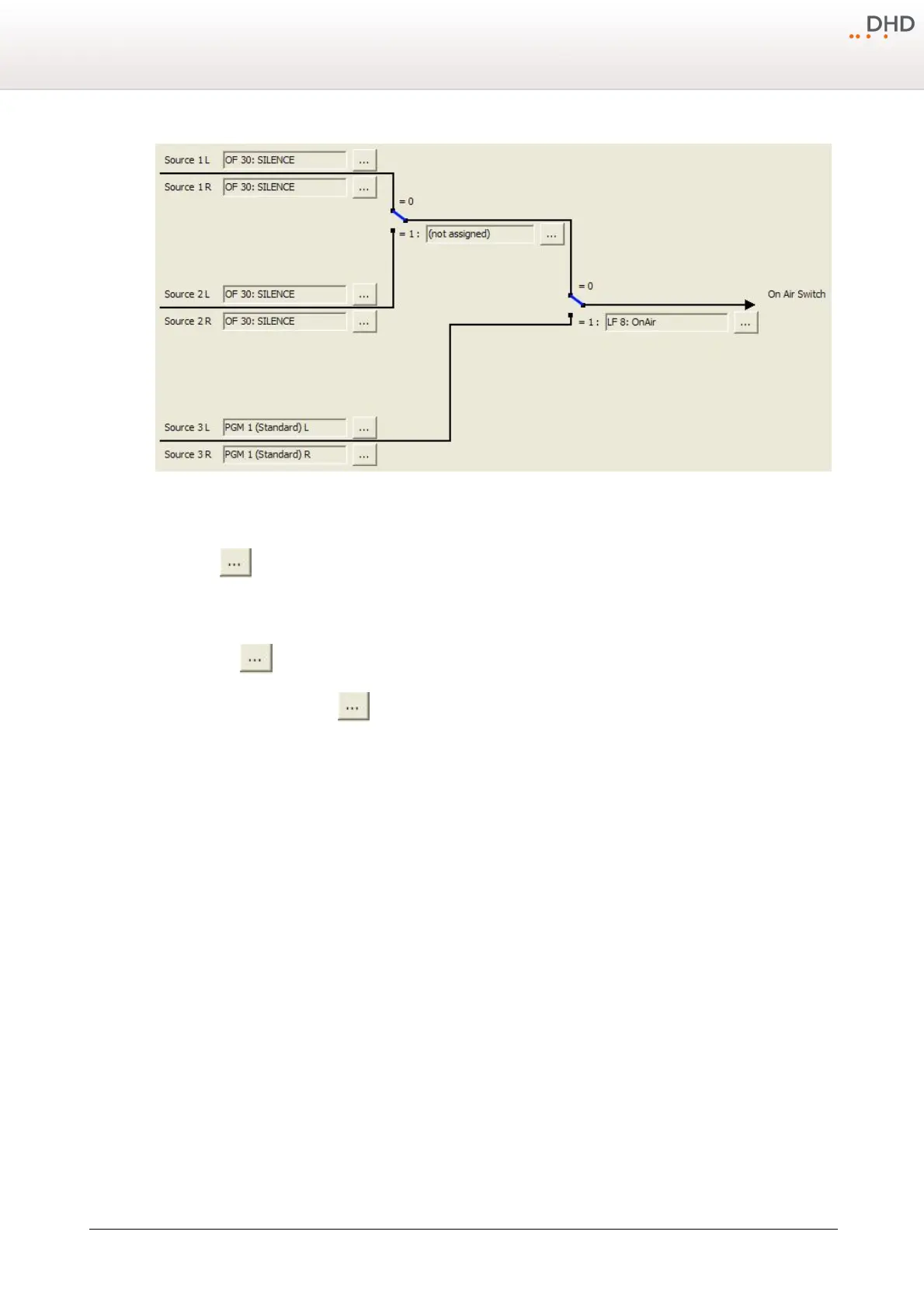

On-Air Switch configuration
To configure the On-Air switch, follow these steps:
1. Click the -button next to the
Source 1L
box, the
Audio Sources
window opens.
2. In the
Audio Sources
window, select a source and click
Assign
. Alternatively you can double-click on the source
or drag it to the
Source
box. The source is now assigned to the On-Air switch.
3. Repeat steps 1 and 2 for the
Sources 1R, 2L, 2R, 3L
and
3R
.
4. The main switch on the right-hand side is assigned by default to the
OnAir
Logic Function. To change the logic
source, click and select another logic source from the
Logic Sources
window.
5. The switch between
Source 1
and
Source 2
has no default logic source and you have to select a logic source if
Source 2
will be used. Click and select another logic source from the
Logic Sources
window.
The main switch with its default logic source OnAir is already preconfigured in the 52/DX-System. To switch between
Source 3
and
Source 1
(or
Source 2
) follow these steps:
1. On the TFT/Touch Display, on the main page, tap on
add. Settings
.
2. Tap on the
Unlock
button, the button turns orange. Now it is possible to change the
Signal Switch
state.
3. Tap on the
ON AIR
button. The
ON AIR
button turns red.
Source 3
is now selected.
In the
On Air Switch Signal
area, you can assign the On Air Switch Signal to the
Selector List 1
and
Selector List 2
. You can find these lists on the
Selector
view of the TFT/Touch Display.
The Label and color for the corresponding TFT buttons can be changed in the
TFT Keyoptions
area.
