Micronics C400 System Board Manual

Micronics C400 System Board

Back Panel Connections

Chapter 2: Configuring the Micronics C400

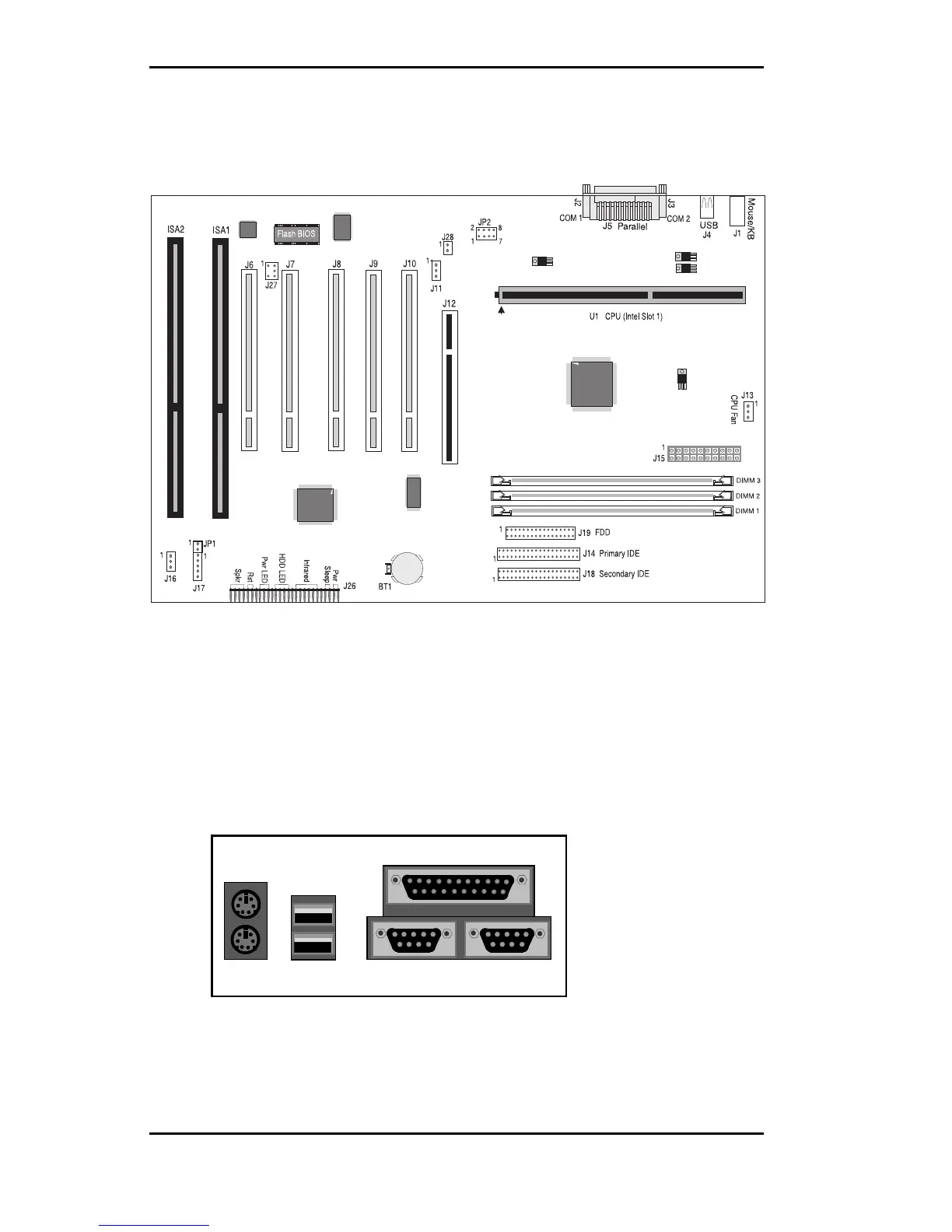

Figure 2-1: Micronics C400 System Board Diagram

Figure 2-2: Back Panel Connections

(Intel Venus I/O Shield Compatible)

Parallel Port (Printer)

USB 1

USB 2

COM 1

COM 2

PS/2

Mouse

PS/2

Keyboard
