Micronics C400 System Board Manual
Chapter 3: Installing the Micronics C400
23

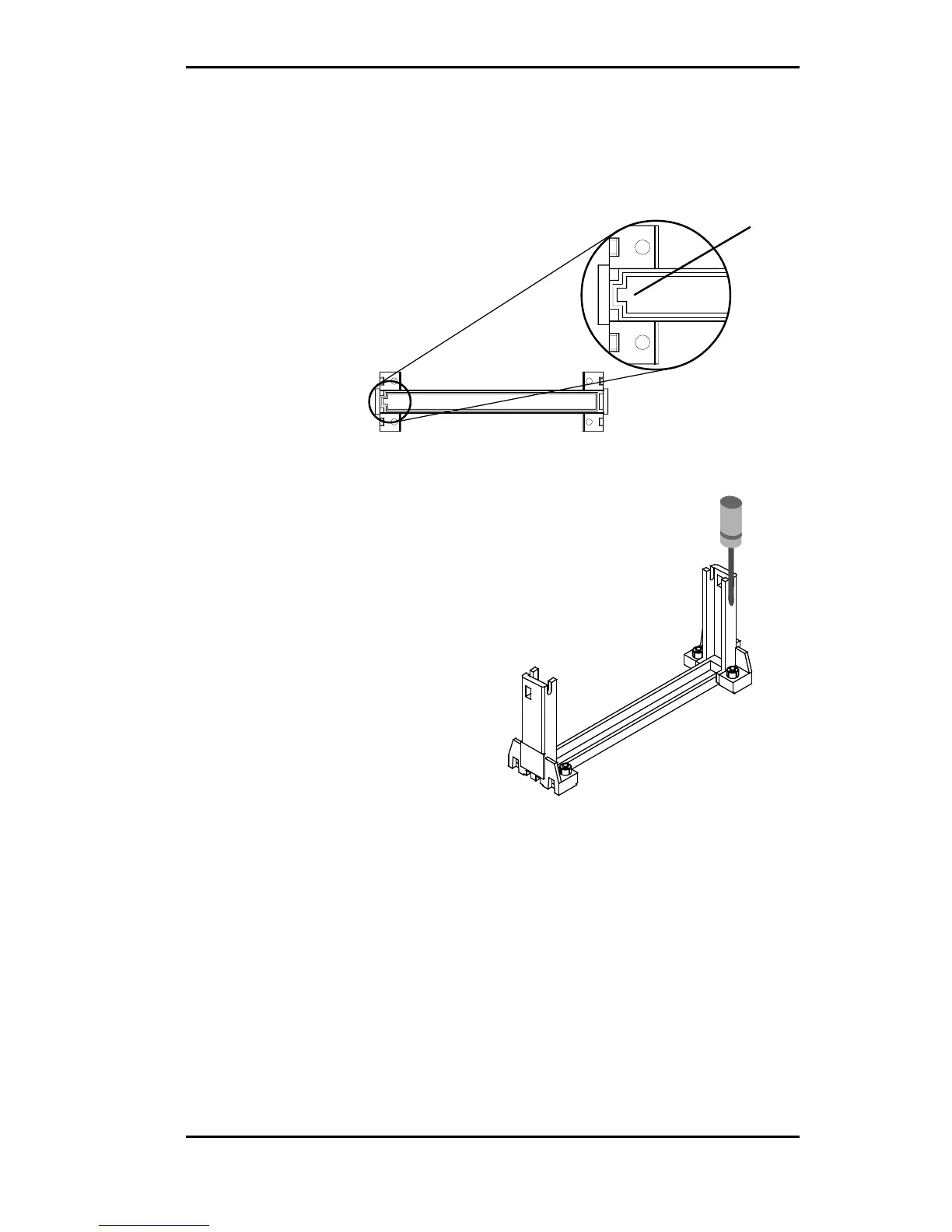

2. Place the Retention Base over the Slot 1 connector
and insert it down into the Support Bridges with
studs. Note the “Keyed” location of both Slot 1 and
the Retention Base.
3. Using a screwdriver, tighten all four
sides of the Retention Base.
Installing a CPU
Follow the steps below to install the Pentium II processor:
1. Locate the Slot 1 connector (refer to Figure 2-1).
2. If you are installing the boxed version of the Pentium
II processor, follow the instructions in the section
“CPU Installation (Boxed version).”
3. If you are installing the optional Heat Sink Support,
continue to step 4; if not, go to step 5.
Retention Base
Keyed
To Next Page
