Operating instructions, SM-110/-111
Servicing and maintenance
48
8
1
2
3
4
5
6
8
7
3
4
5
2
6
8

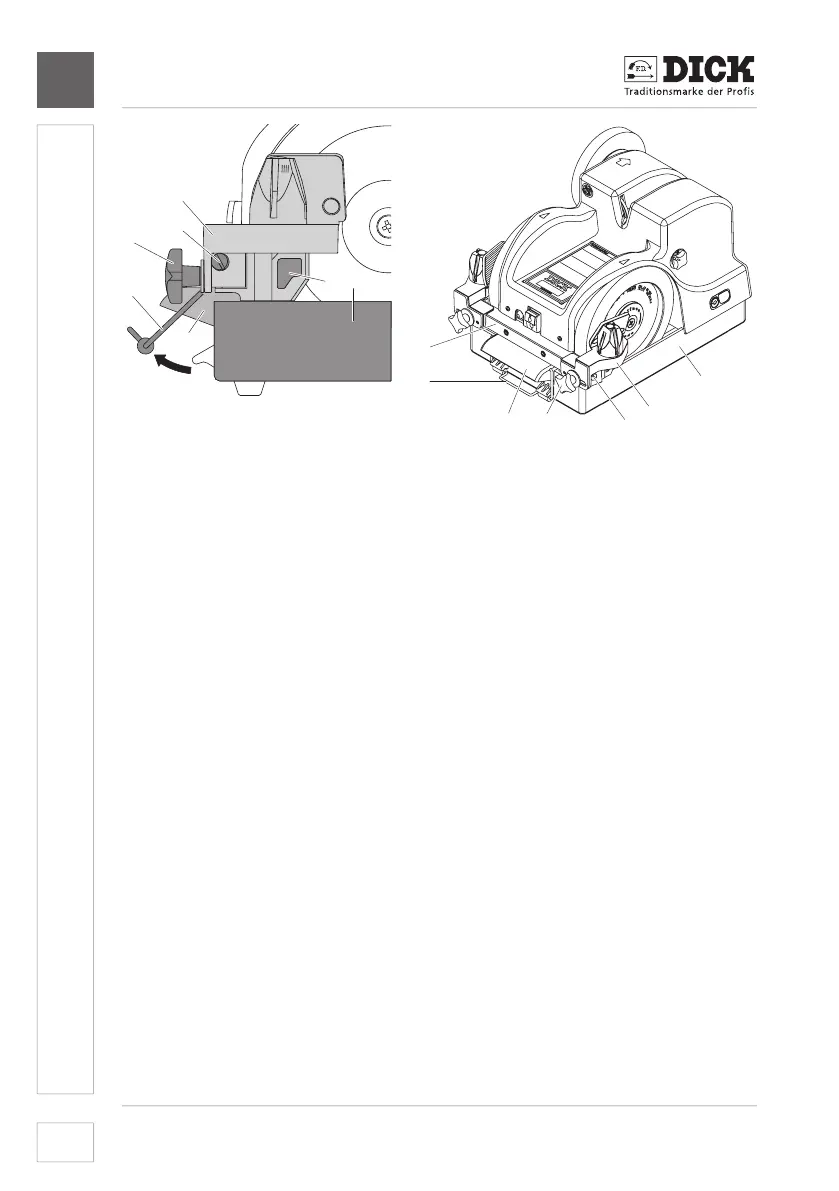

Image 28 – Replacing water stripping brush
[28-1] Water stripping brush
[28-2] Knife guide
[28-3] Clamp
[28-4] Handles for lifting out the machine
[28-5] Water tank
[28-6] Screw plug
[28-7] Guidance
[28-8] Star handle screw and washer
1. Open both clamps [28-3].
2. Lift the machine out of the water tank [28-5] by the two handles [28-4].
3. Remove the screw plug [28-6] on the front side of the guide [28-7].
4. Remove the star knob screw and washer [28-8].
5. Pull off the knife guide [28-2].
