Operating instructions, SM-110/-111
Servicing and maintenance
49
8
15°
3
2
1

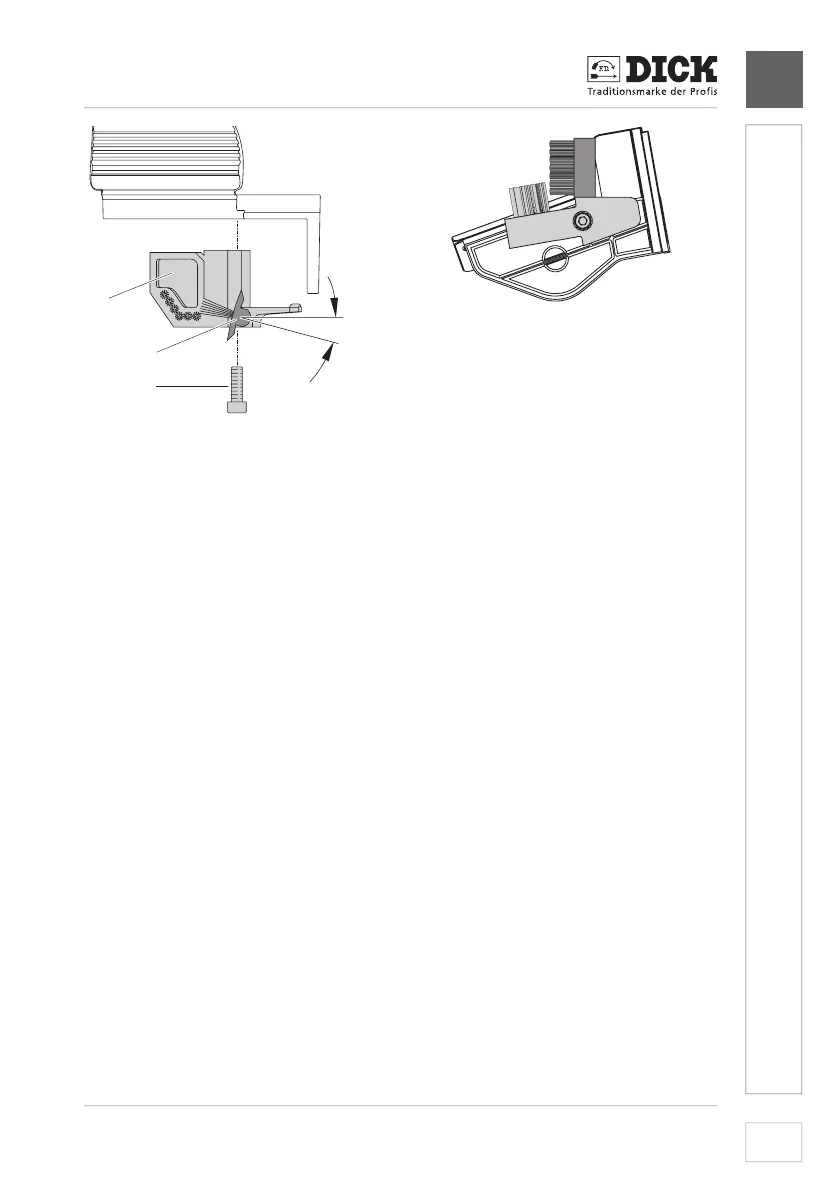

Image 29 – Replacing water stripping brush
[29-1] Brush unit
[29-2] Screw
[29-3] Brush position between 0 and 15°
[29-4]Deectionroller
6. Unscrew the screw [29-2] with enclosed Allen key (size 4).
7. Replace the complete brush unit [28-1] and [29-1].
➾ Pay attention to the right brush position [29-3], between 0 and 15°.
➾ If necessary, correct the brush position by turning it.
8. Reassemble the knife guides [28-2] in reverse order. Screw in the screw
plugs [28-6] on the face ends of the guide [28-7].
9. In order to ensure good and safe knife guidance, place knife guides as
close as possible to the grinding wheels without touching them (see 6.4.1
Adjusting the knife guides (grinding angle))
10. Insert the mains plug.
11. Switch on the machine and test run it for one minute. In case of unusual
behaviour, switch off the machine immediately and check all individual
parts for proper condition and assembly.
