Configuration from the Web interface
35
The Home page
When the web interface is opened, the Home page is displayed. The information listed on this page
may vary based on product and supported features.

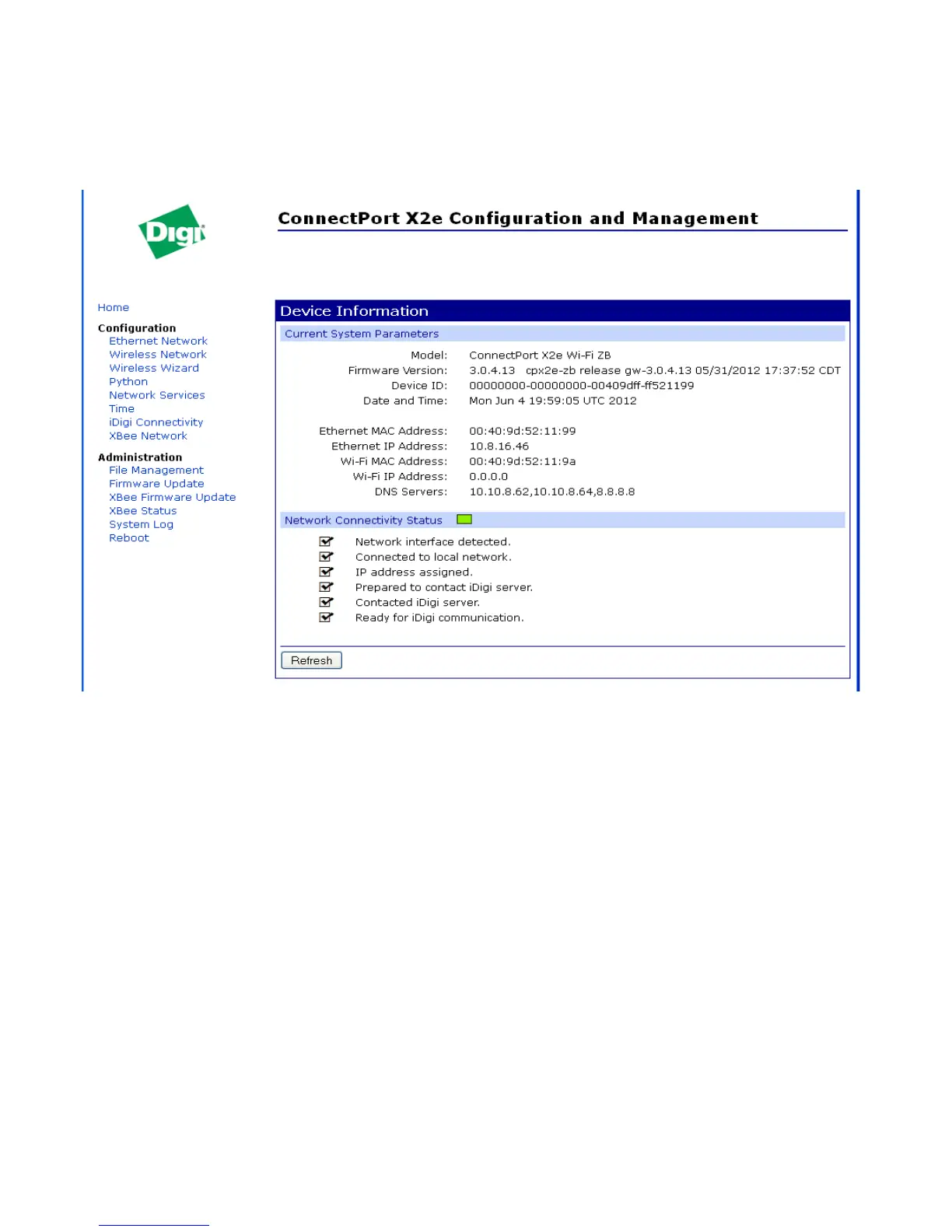

Device Information
The Device Information section of the Home page summarizes current system parameters and
network connectivity status.
The Network Connectivity Status LED and information displayed indicates the readiness of the
ConnectPort X2e ZB to communicate in a network and with the iDigi server. See the description of
the status LEDs beginning on page 17 and "Troubleshooting" on page 69 for information on the
LED and the various network connectivity status conditions listed.
Refresh button
Clicking Refresh refreshes the Home page. This refresh operation is necessary because things like
system time and network connectivity status are not dynamically updated when the state changes
on the device. This refresh operation also updates device status information.
