Digi XBee User Manual

Hardware Mechanical drawings
XBee/XBee-PRO® S2C ZigBee® RF Module
23
Mechanical drawings

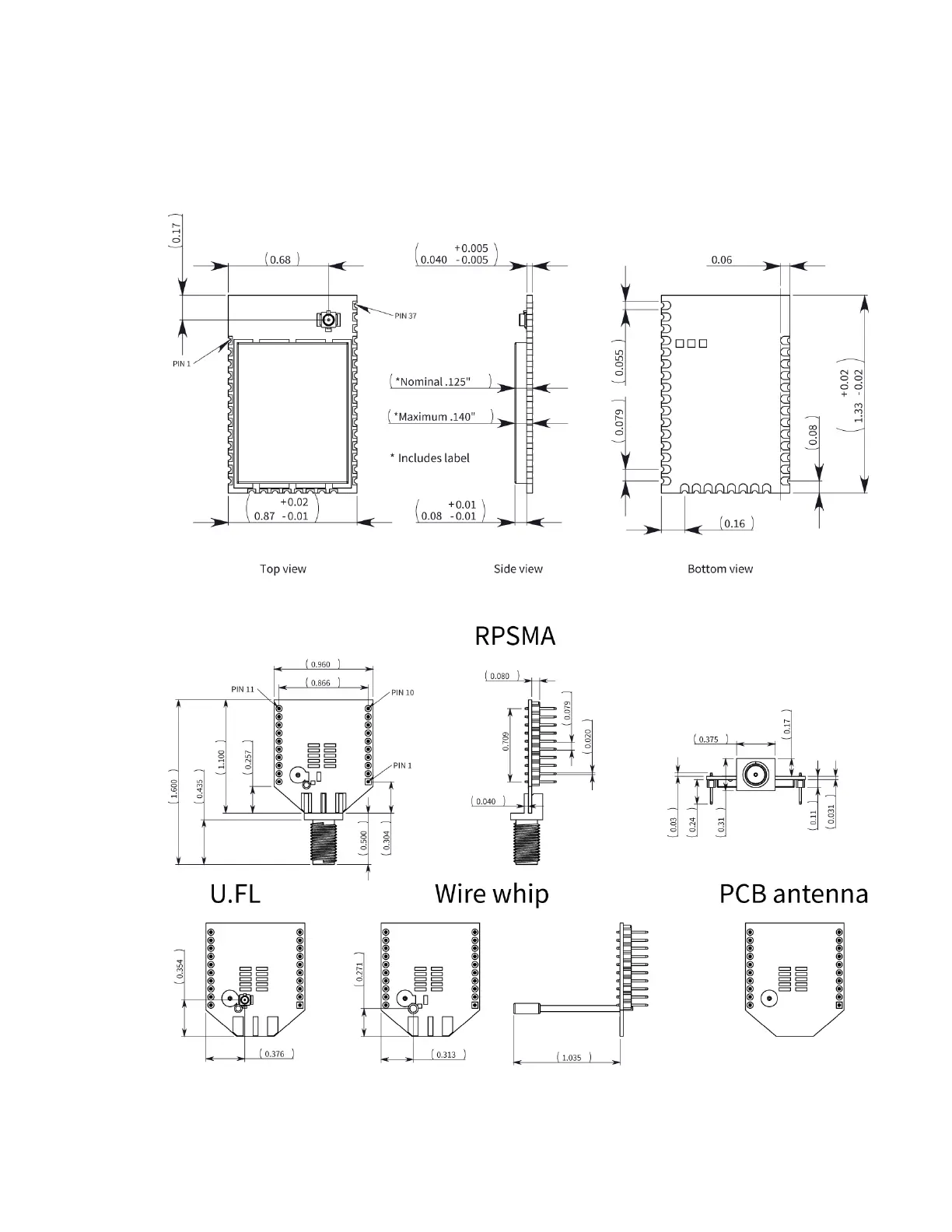

The following mechanical drawings of the XBee/XBee-PRO ZigBee RF Modules show all dimensions in
inches. The first drawing shows the XBee/XBee‐PRO surface-mount model (antenna options not
shown).
The drawings below show the XBee through-hole model
The drawings below show the XBee-PRO through-hole model.

Digi XBee Specifications

General

Operating Frequency	2.4 GHz
RF Data Rate	250 kbps
Model	XBee S2C
Category	Control Unit
Operating Voltage	2.1 to 3.6V DC
Operating Temperature	-40 to +85 °C
Interface	UART
Dimensions	24.38 x 27.61 x 9.14 mm
