Digi XBee User Manual

Regulatory information South Korea
XBee/XBee-PRO® S2C ZigBee® RF Module
292

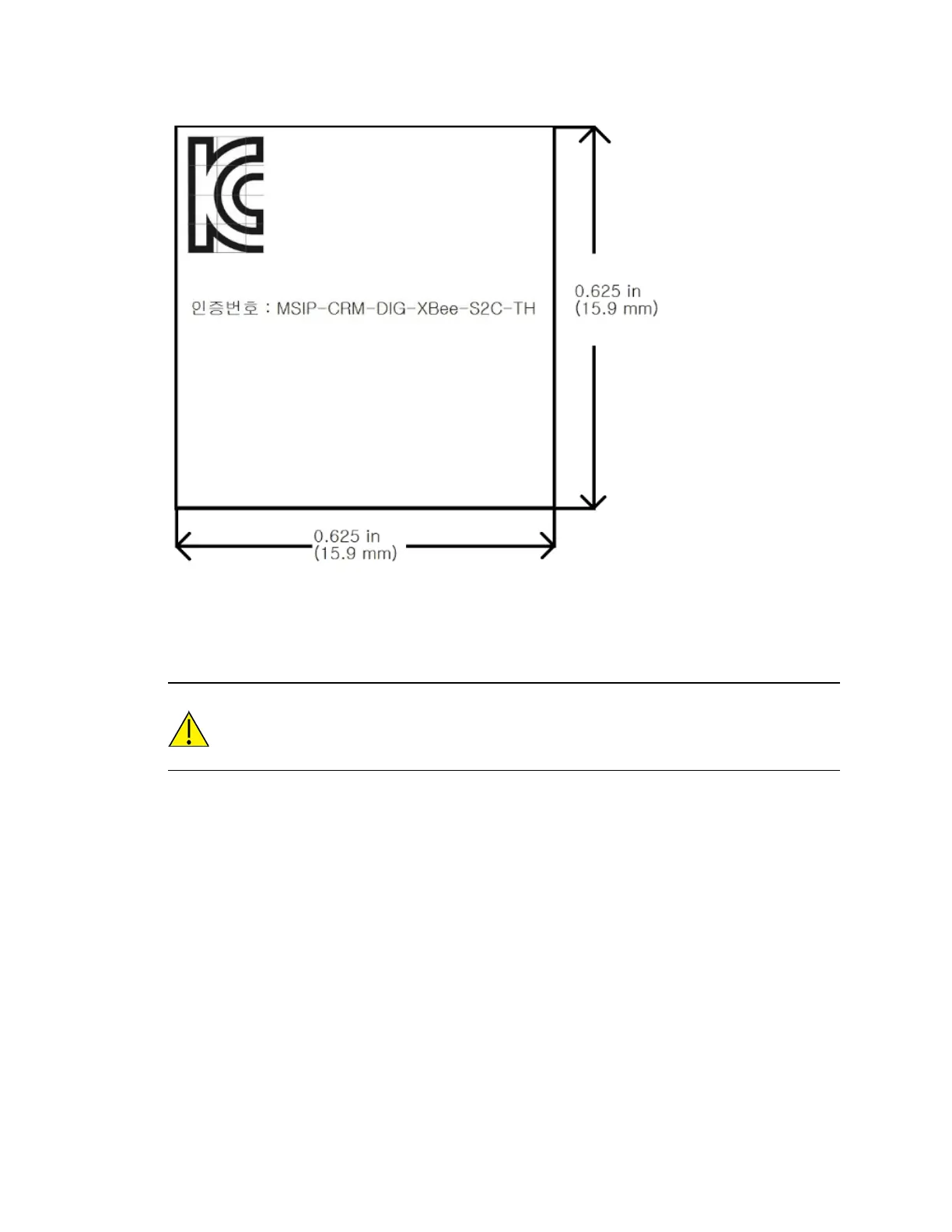

The KCC logo must be at least 5 mm tall.
The text shown on the label is:
인 증 번 호 : MSIP-CRM-DIG-XBee-S2C-TH
For the surface-mount version, the label will overlay the existing product label.
CAUTION! By placing a label over the existing label, the certifications for Europe (CE),
Australia, New Zealand (RCM), and Japan will no longer apply.
Recommended label material: Abraham Technical TELT-000465.
The label size is: 15.9 mm x 20.3 mm (0.625 in x 0.8 in)
The complete label information is as follows:

Digi XBee Specifications

General

Operating Frequency	2.4 GHz
RF Data Rate	250 kbps
Model	XBee S2C
Category	Control Unit
Operating Voltage	2.1 to 3.6V DC
Operating Temperature	-40 to +85 °C
Interface	UART
Dimensions	24.38 x 27.61 x 9.14 mm
