route record transmission is unicast along the many-to-one route until it reaches the data collector.
As the route record traverses the many-to-one route, it appends the 16-bit address of each device in
the route into the RF payload. When the route record reaches the data collector, it contains the
address of the sender, and the 16-bit address of each hop in the route. The data collector can store
the routing information and retrieve it later to send a source routed packet to the remote as shown in
the following images.

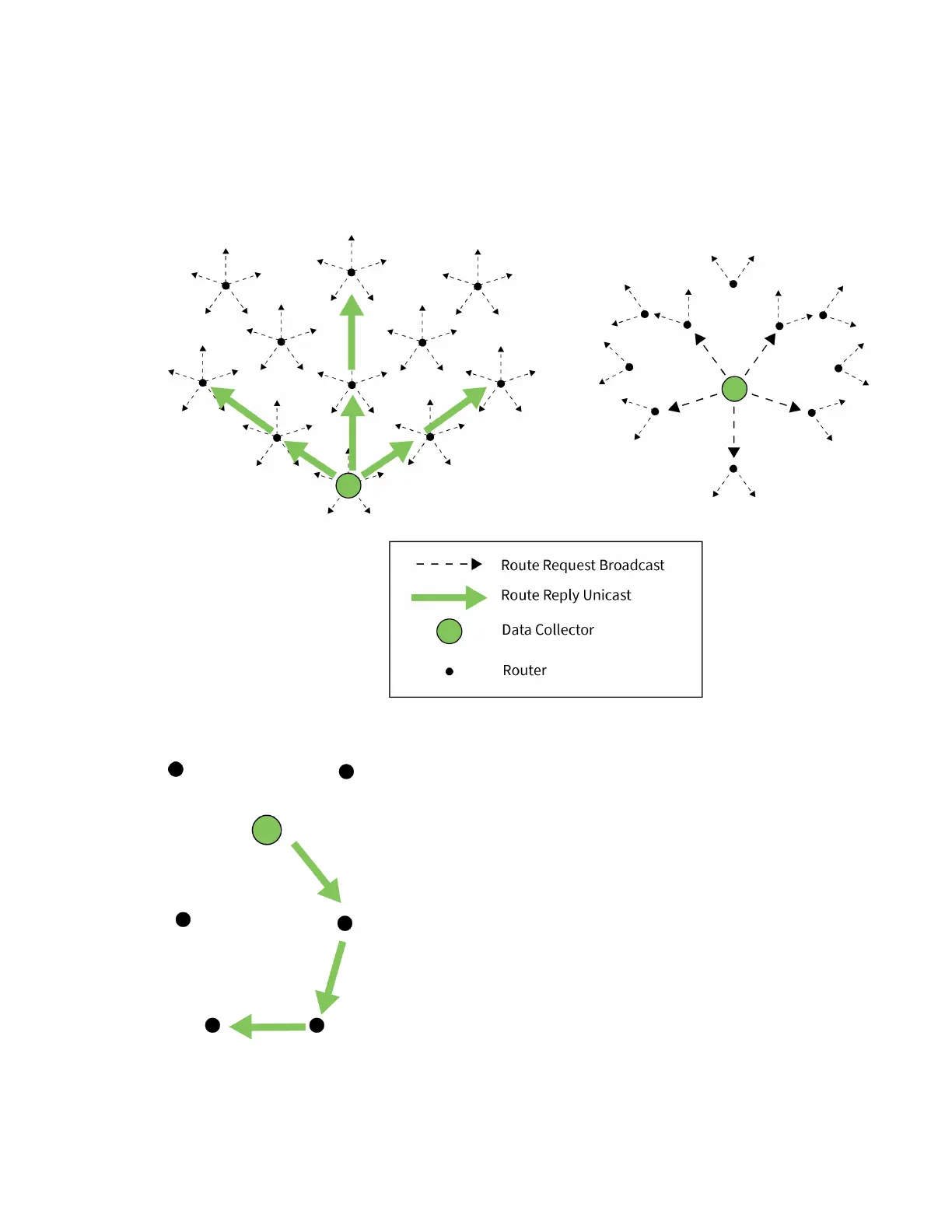

The data collector sends a many-to-one route request broadcast to create reverse routes on all
devices.
A remote device sends an RF data packet to the data collector. This is prefaced by a route record
transmission to the data collector.

Digi XBee Specifications

General

Operating Frequency	2.4 GHz
RF Data Rate	250 kbps
Model	XBee S2C
Category	Control Unit
Operating Voltage	2.1 to 3.6V DC
Operating Temperature	-40 to +85 °C
Interface	UART
Dimensions	24.38 x 27.61 x 9.14 mm
