Digital Dream DDCS V3.1 User Manual

Page -26Digital Dream Standalone Motion Controller DDCS V3.1 DDCS V3.1 Users Manual

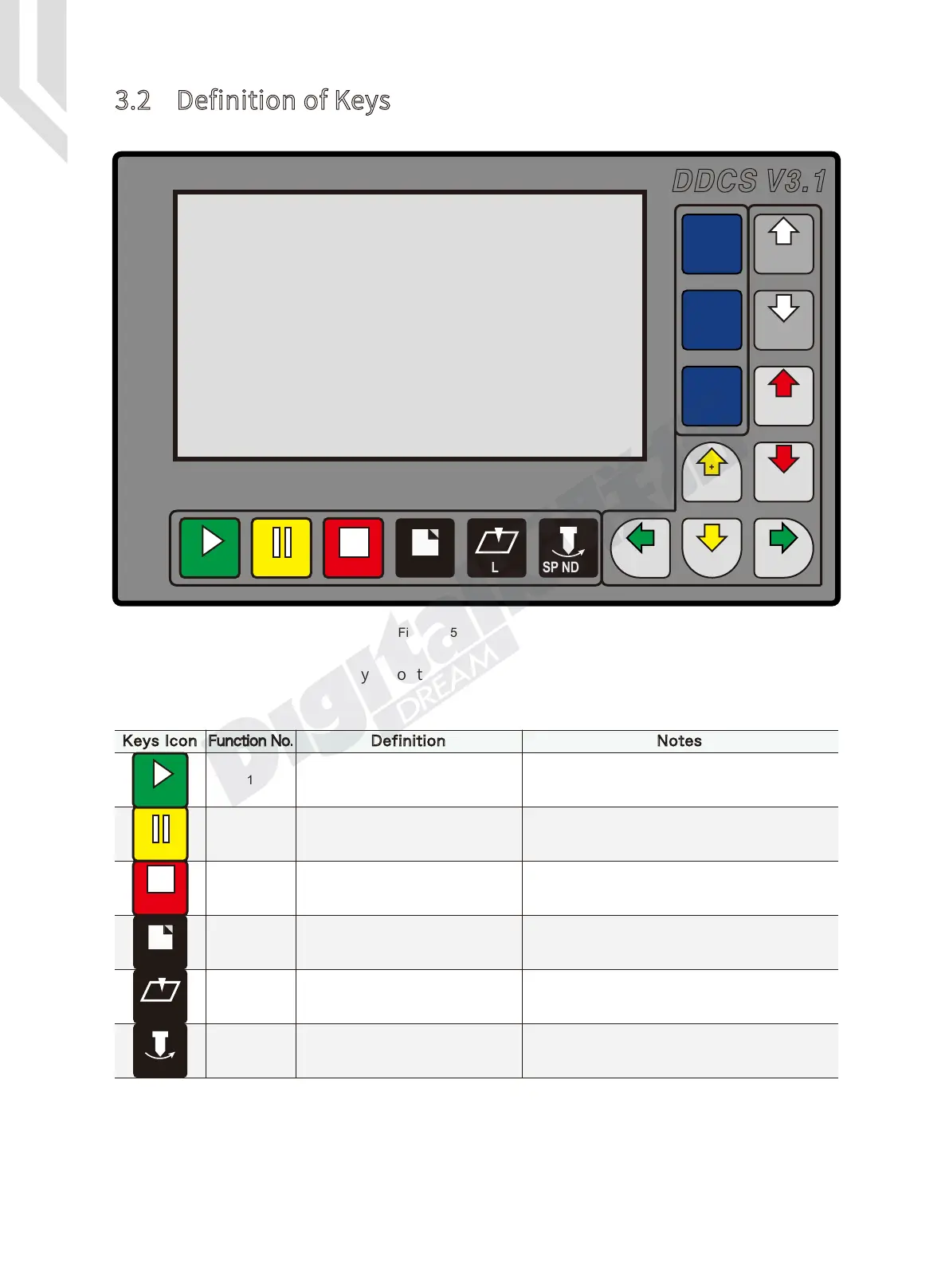

The Figure 3-5 shows the key layout of the DDCS. The Controller DDCS has 17 keys. Please
see table 3-1 for reference.
Figure 3-5 Keys Layout
3.2 Definition of Keys
TOOL PATH
PAGE RRESETPAUSESTART SPINDLE
Mode
Shift
Tab
X-
GOTO 0
Y
-
ZERO
X+
X
Y
+
Y
HOME
Z
-
ENTER
Z
+
Z
CANCEL
A
+
A
SELECT
A
-
PROBE
MODIFY
DDCS V3.1
Keys Icon Function No. Definition Notes
1
1
Start operation
After loading the G code file, please press this key
to start the operation. In case of Pause Status,
press this key to continue the processing operation.
Pause operation Press this key to Pause the operation.
1 Reset and E-STOP
If Reset is blinking, press this key to activate the
controller. Press this key to stop processing urgently.
1 Page switch
Toolpath display switch
Switch through File Management Page, Processing
Main Page and Parameter Configuration Page.
1
Switch the display between Coordinate Display or
Tool Path Tracking display.
1 Spindle manual start/close
Press this key to manually switch the spindle on or
off. Can not be used if Reset is blinking and while
processing an operation (Busy)
TOOL PATH
PAG E R
RESET
PAUSE
START
SPINDLE
