Digital Dream Standalone Motion Controller DDCS V3.1 DDCS V3.1 Users Manual
Page -31
For the keyboard operation keys,beside copy paste and delete,users can also operate it as
following functions:
F3 Edit：Edit a G Code file;
F4：Can name a file;
INS NEW：Create a new .nc file.
Before starting the G-code the user must set the tool to the correct height and Zero the Z
axis.

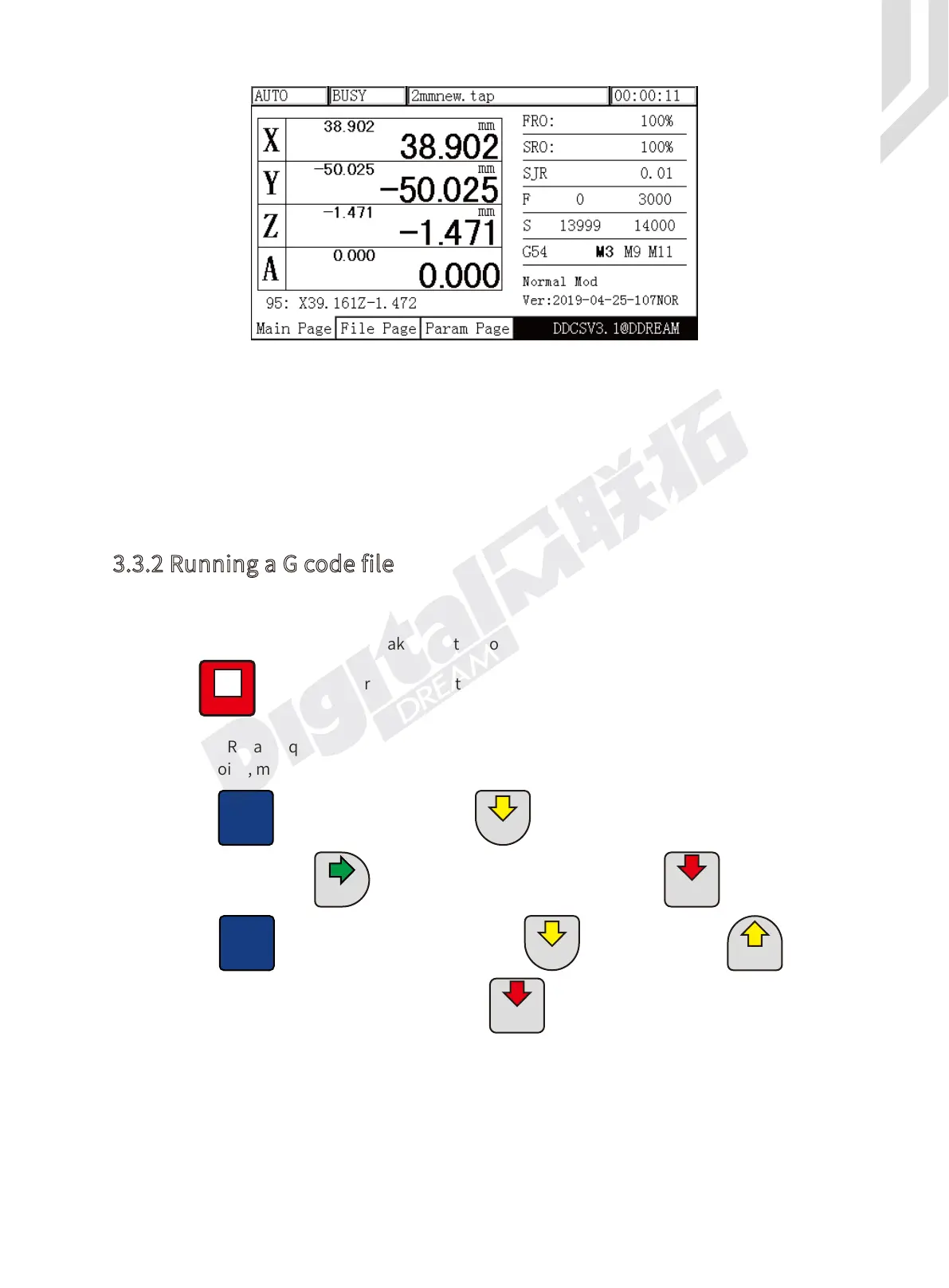

Figure 3-13 After loading the file 2mmnew.tap the file name will be displayed
Before loading the G code file, make sure the controller is in READY. If RESET is blinking, just
press the key and ensure the operation status column displays READY.
Now set ZERO as requested.For example, if the G code file defines the work piece center as
the XY ZERO point, move the cutter to that position.
3.3.2 Running a G code file
3.3.2.1 Start running G code
Click the button again and then click the button. Now click to
select Y Axis and an EDIT WINDOW will open. Click to Zero Y.
Click the button and then click the button. The Operation Window will give
you several options. Click and an EDIT WINDOW will open. Click to Zero X.
Y
-
ZERO
Y
-
ZERO
X+
X
Y
+
Y
HOME
Z
-
ENTER
HOME
Z
-
ENTER
Shift
Shift
RESET
