Digital Dream DDCS V3.1 - Appearance, Structure and Size of Product

Page -5Digital Dream Standalone Motion Controller DDCS V3.1 DDCS V3.1 Users Manual
The DDCS V3.1 is a small box that can fit in a window of a small control box or control cabi-
net. Four locking hooks fix this controller from the frame. The dimension you find in Figure 1-1
and Figure 1-2.
The front panel is 191mm*128mm*5mm；
The main body is 191mm*128mm*37mm；
To mount the unit in an equipment cabinet, cut the hole182.5mm*59mm
1.3 Appearance, Structure and Size of Product
5 mm
128 mm
191 mm
182.5 mm
59 mm
37 mm
175 mm
110 mm

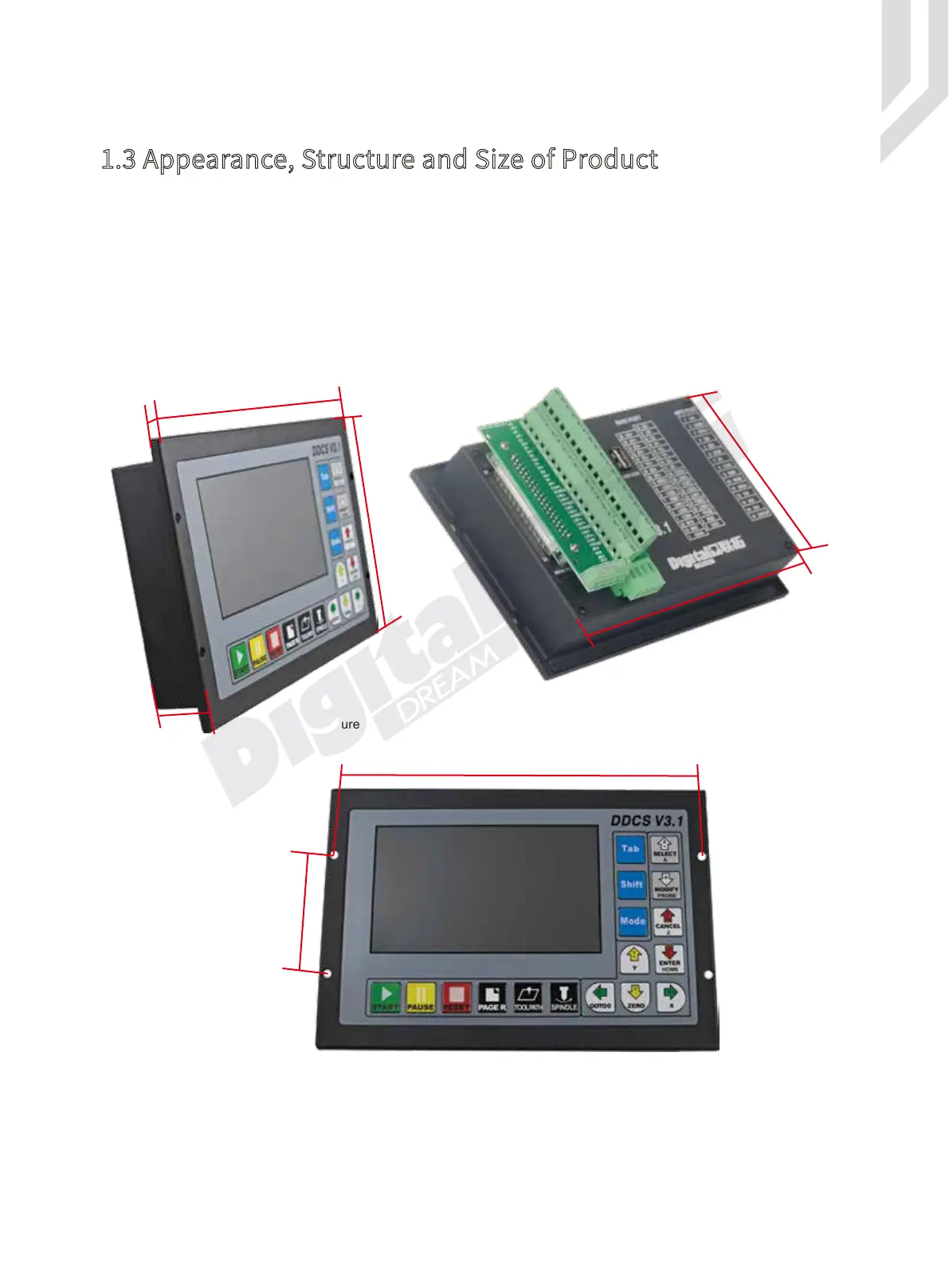

Figure 1-1 DDCS V3.1 Front and back view and dimensions
Figure 1-2 DDCS V3.1 Rear view and dimensions
