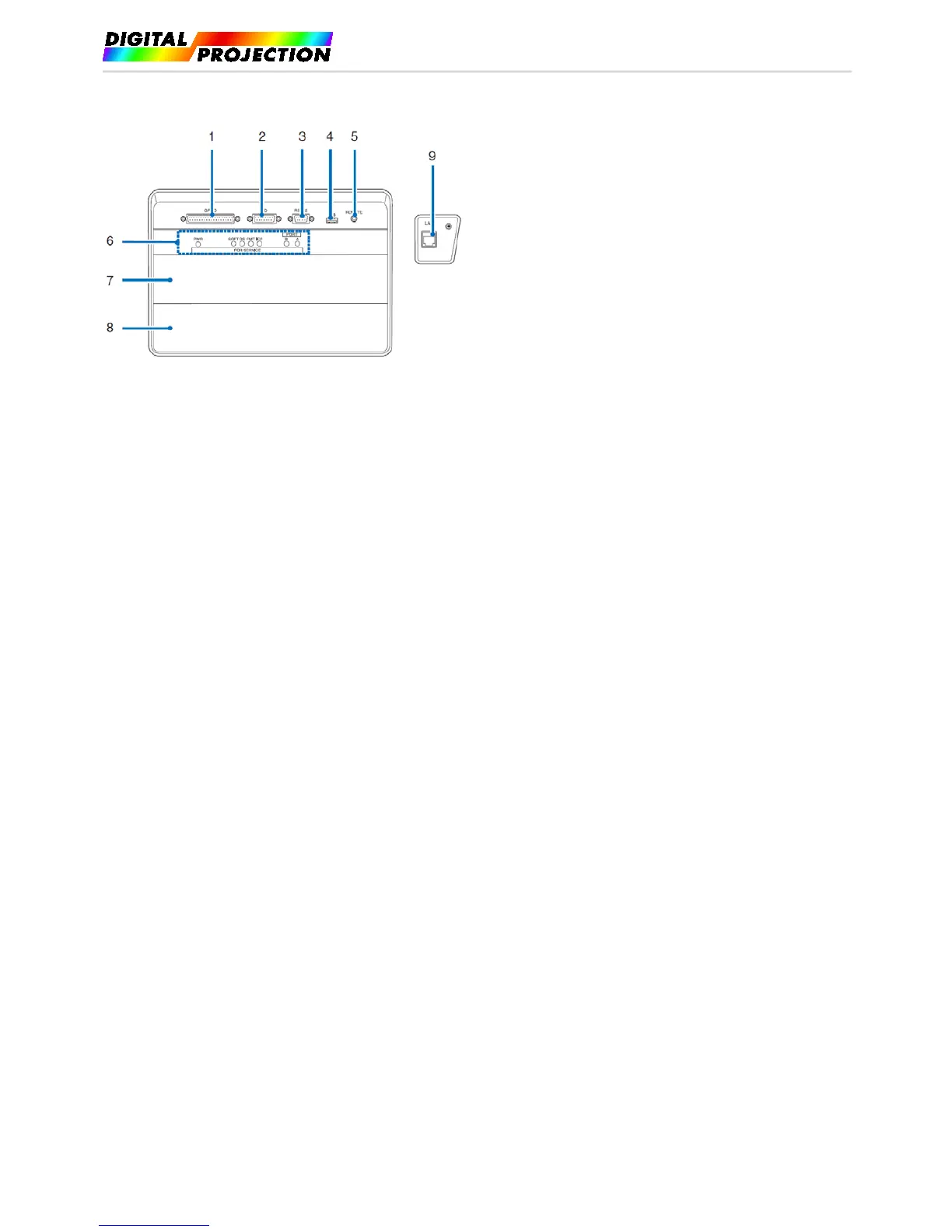

1.3.4. Connection terminals
1. External control terminal (GP I/O) (D-sub 37P)
The terminal for externally controlling the projector or connecting a 3D image system to the projector. (See page 74)
2. 3D terminal (3D) (D-sub 15P)
The terminal for connecting a 3D image system to the projector. (See page 79)
3. PC control terminal (RS-232) (D-sub 9P)
The terminal for operating the projector from a PC via an RS-232C or for service personnel to set data for the projector.
Connect the
projector and the PC with a commercially available RS-232C straight cable.
4. USB port (USB) (type A)
The port for the projector maintenance.
5. Service terminal (REMOTE) (Stereo mini)
This terminal is used for service purpose only.
6. Device management indicator
The indicator for displaying the projector status. Used by service personnel during maintenance.
7. Slot B
Not used in this projector.
8. Slot A
The slot is used for an image media block (IMB) or optional products (page 80). Contact your dealer/distributor for an installation of optional
products.
Refer to the IMB instruction manual for details on IMB.
9. Ethernet port (LAN) (RJ-45)
The port for interfacing with an image signal server or controlling the projector from a PC via a network. Connect the projector and the PC with
a commercially available Ethernet cable (10/100/1000Base-T).
