INSIGHT 4K LASER User Manual
2.3. Connecting the image input terminals
The video input ports that can be used with each board are as follows. Refer to the instruction manual of the IMB or signal input board for details on
connecting the video input ports with external equipment.
NP-90MS01
HDMI input port
SDI input port
x 1
x 2
NC-80LB01-B
NC-80DS01-B
HD-SDI input terminal
DVI-D input terminal
x 4
x 2

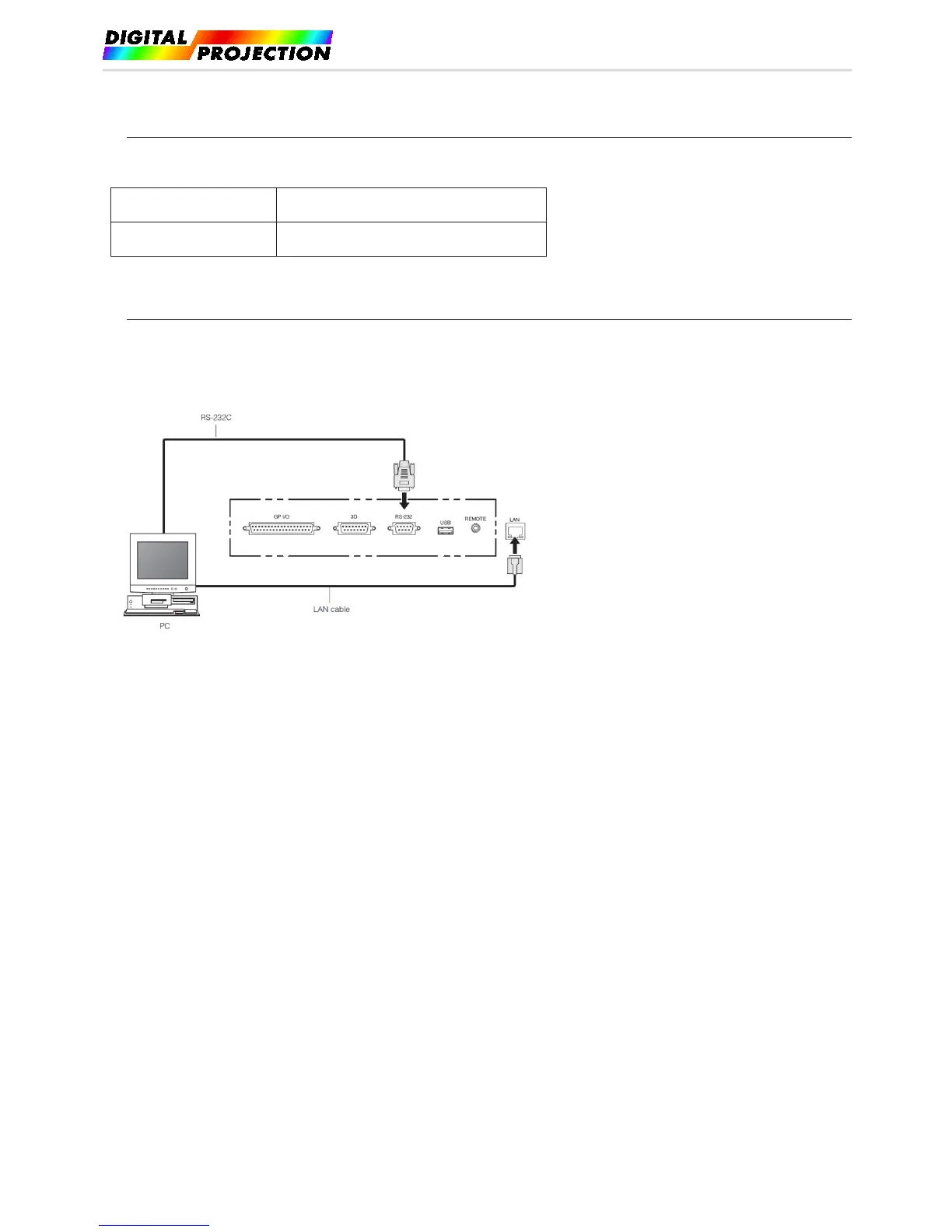

2.4. Connecting the various control terminals
For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).
PC control terminal (RS-232) --------------- Use this terminal when controlling the projector in serial connection from a PC.
LAN port (LAN) -------------------------------- Use this port when controlling the projector in LAN connection from a PC.
