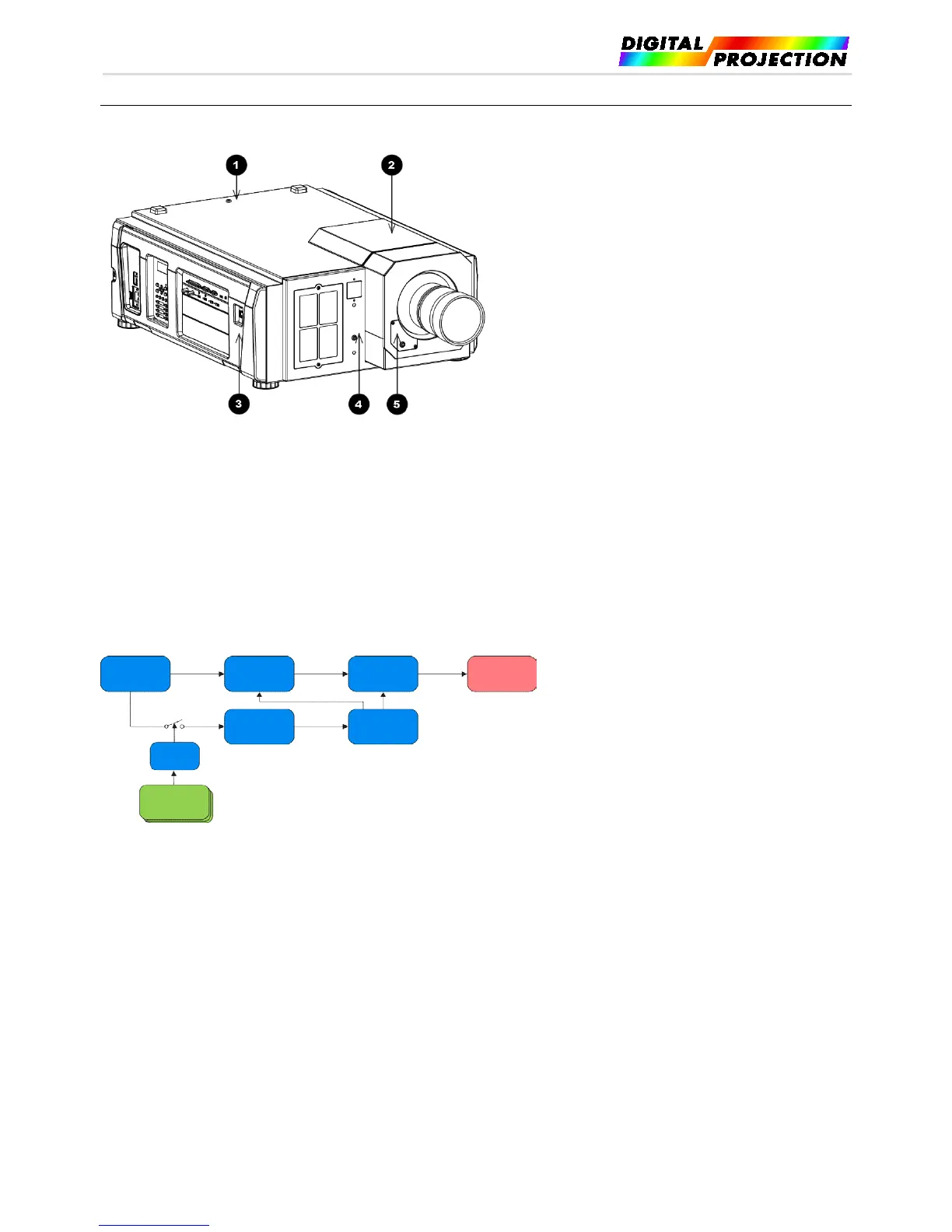

Interlock switches
Five interlock switches installed at the main frame, inside the cover, will power-off the system individually when activated.
Location
1
Will be activated when the top cover is removed.
2
Will be activated when the l
ens is removed.
3
Will be activated when the side cover is removed.
4
x2. Will be activated when the front cover is removed.
5
Will be activated when the lens access cover is removed.
Interlock switch control block diagram
POWE
DC-DC
Laser
Laser
DC-DC
Micro-
Interloc
Page 5 of 65
