【6-8】
NGINE

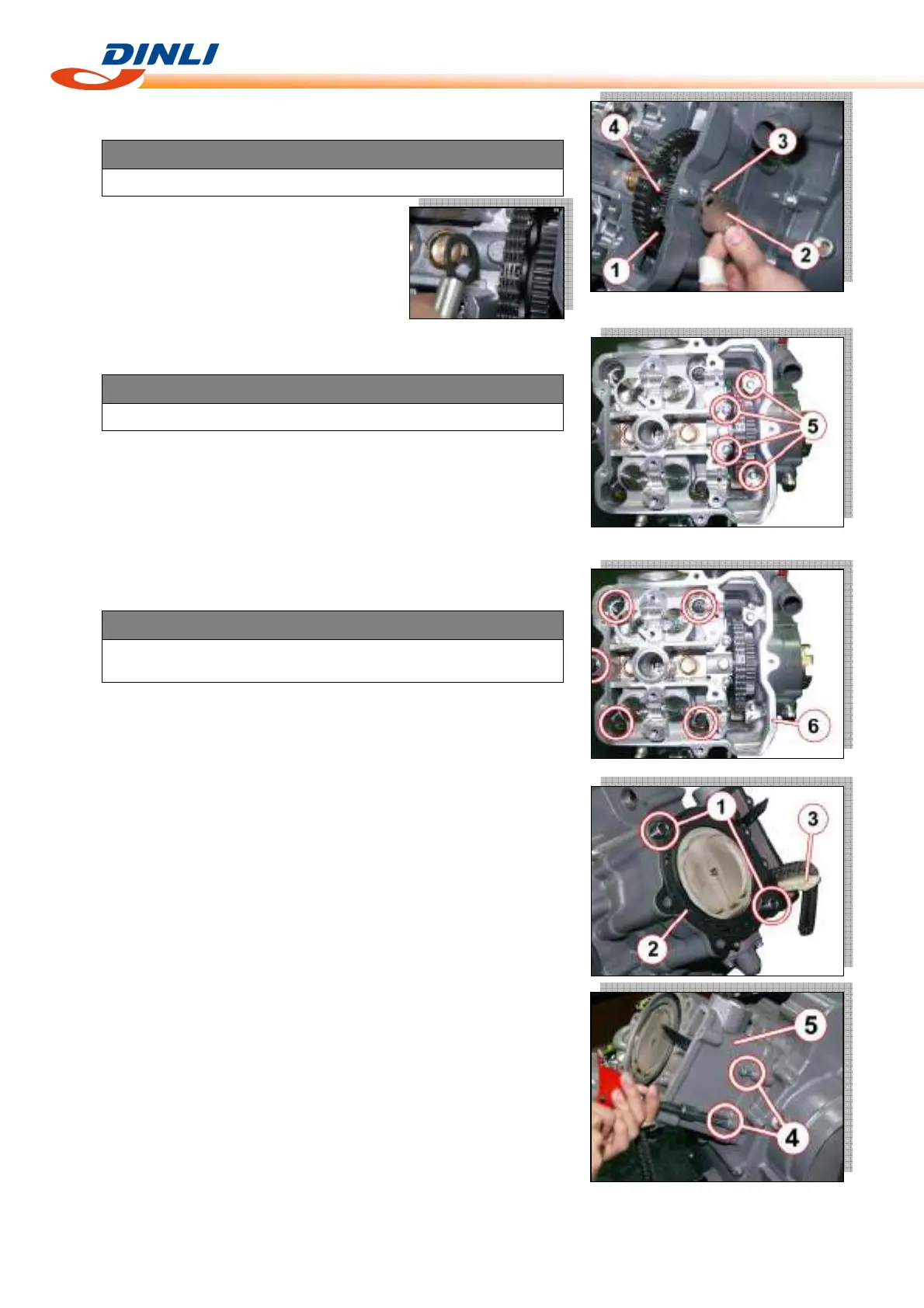

● Remove the cam driver gear [1] by removing the shaft cover [2],
shaft [3] and the spacer [4].
● Remove the cylinder head bolts (M6) [5].
● Remove the cylinder head bolts (M10) and washers.
● Remove the cylinder head [6].
● Remove the dowel pins [1] and cylinder head gasket [2].
● Remove the cam chain guide [3].
● Remove the cylinder nuts [4].
● Remove the cylinder [5].
NOTE
Be careful not to drop the spacer [4] into the crankcase.
NOTE
Loosen the cylinder nuts.
NOTE
When loosening the cylinder head bolts, loosen each bolt little by
little diagonally.
