【6-11】
NGINE

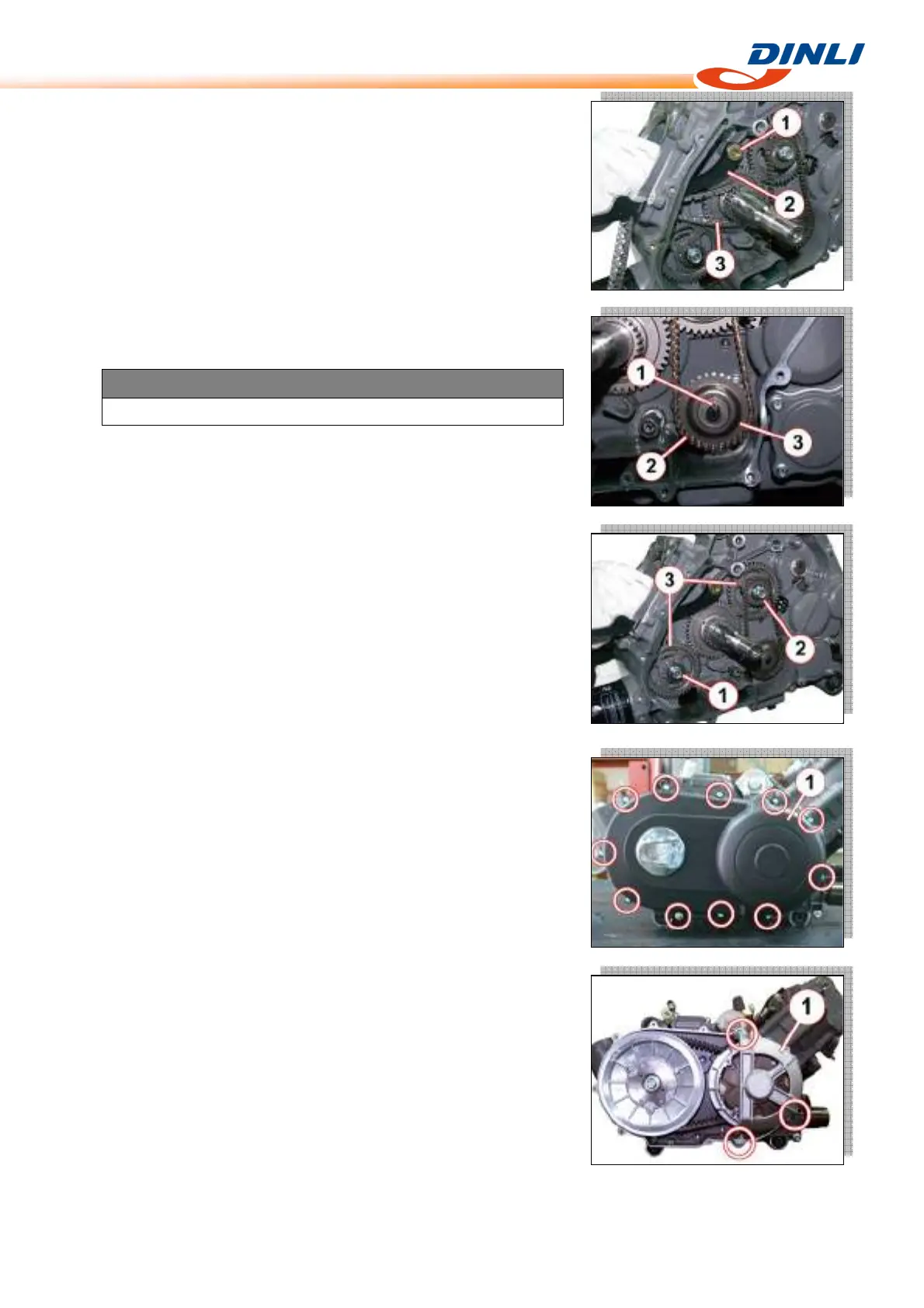

● Remove the cam chain tensioner bolt [1], cam chain tensioner [2].
● Remove the cam chain [1].
● Remove the snap ring [1].
● Remove the oil pump drive chain [2] and oil pump driven gear [3].
● Remove the oil pump bolts and the oil pump.
● Remove the balancer shaft driven gear bolts with the special tool.
● Remove the water pump drive gear [1] and oil pump driven gear
[2].
● Remove the balancer shaft driven gears [3].
● Remove the clutch cover [1] and gasket.
● Remove the movable drive face cover [1].
NOTE
Be careful not to drop the snap ring [1] into the crankcase.
