Operating Instructions RF-2000
13

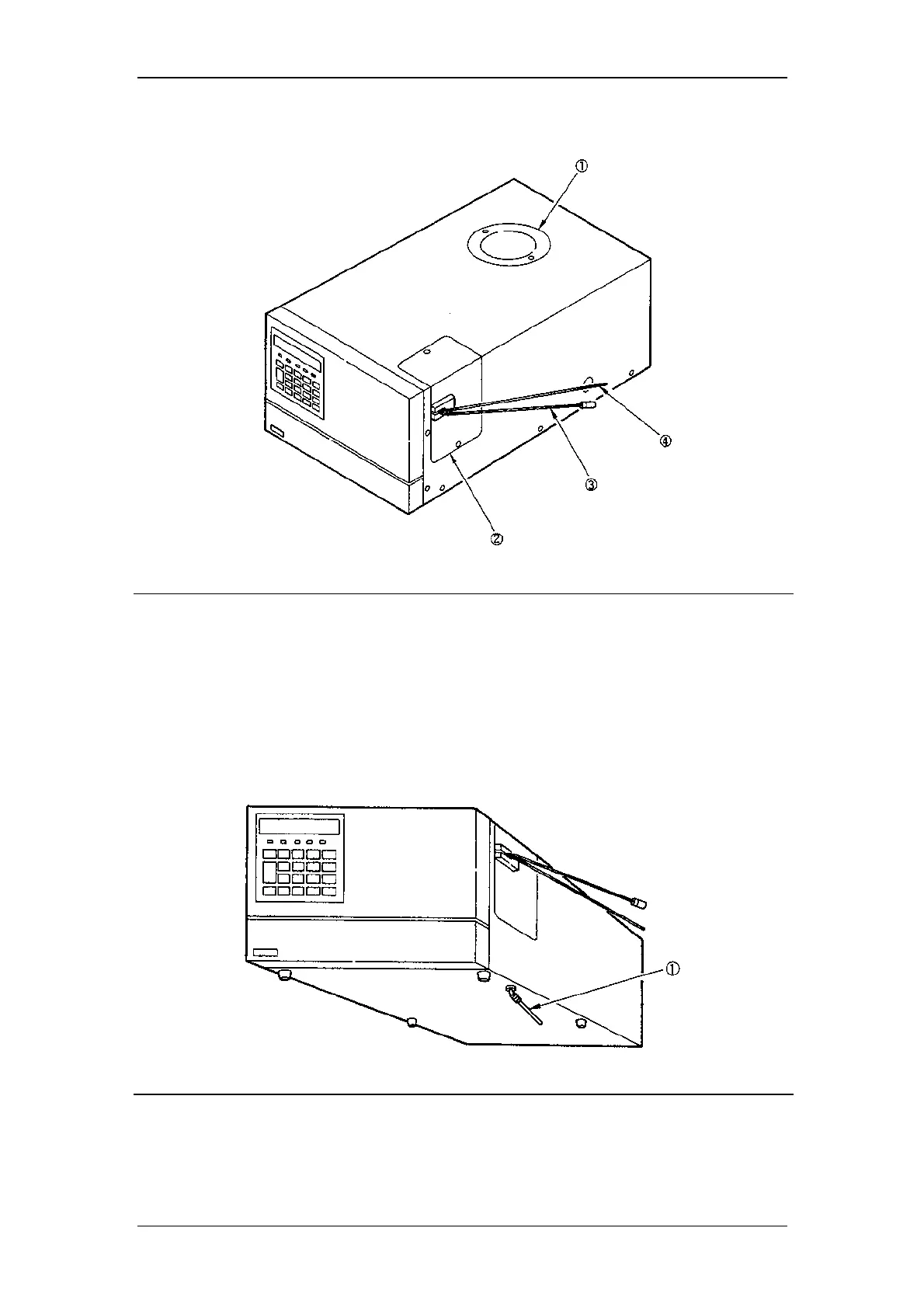

3.2 Top Side and Right Side
No. Description Function
1 Light source chamber cover Remove this cover when replacing the
lamp.
2 Cell cover Remove this cover when replacing the
cell.
3 Cell inlet tubing Marked with blue cover tubing.
4 Cell outlet tubing
3.3 Bottom Side
No. Description Function
1 Drain tube for solvent leakage Drain tube is connected here.
