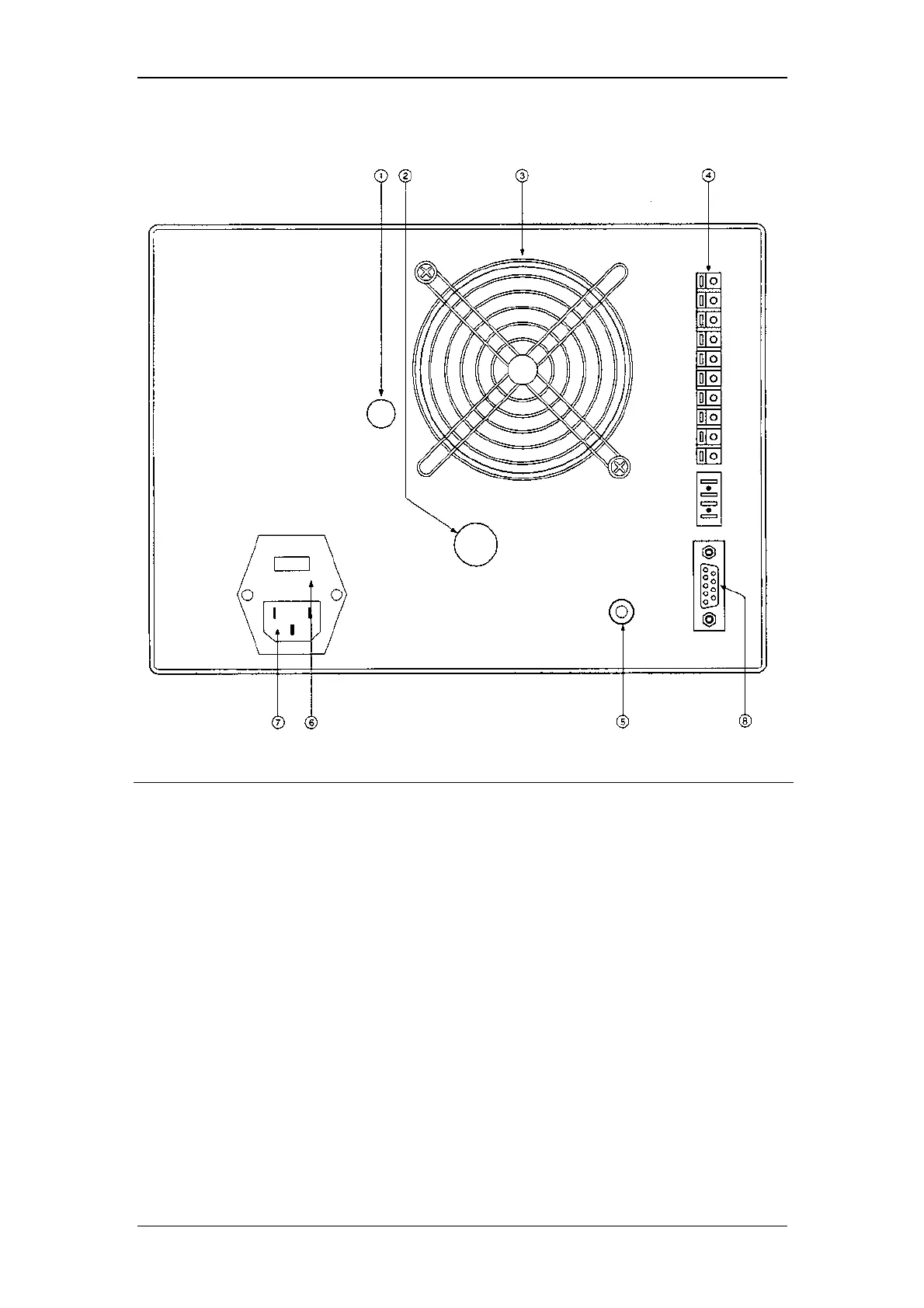

3.4 Rear View
No. Description Function
1 Horizontal direction adjusting
screw
Adjusts horizontal alignment of the lamp
on replacement.
2/upper Vertical direction adjusting screw Adjusts vertical alignment of the lamp on
replacement.
2/lower Lamp fixing screw Used to fix the lamp.
3 Fan Removes internal heat.
4 External input and output
terminals
Terminals used for connection with
external instruments.
5 Grounding terminal Grounding is made through this terminal.
6 Fuse holder Fuse is set in this holder.
7 Power supply connector Connector for power cable
8 RS-232C connector Connector for control by CHROMELEON
