Operating Instructions RF-2000
20
Warning:
• When the light source chamber cover shall be opened, be
sure to turn OFF the power switch and disconnect the power
cable from power supply.
• It is very dangerous to touch the lamp by any mistake
because high voltage, approx. 30kV, is applied to the + pole
of the xenon lamp when the lamp is lit on and 20V is applied
while the lamp is lit.
• The xenon lamp is still charged just after the power switch is
turned OFF. Leave more than 5 minutes after the power
switch is turned OFF before open the light source chamber
cover to avoid electric shocks.
• It is very high temperature right after the Xenon lamp is
turned OFF. Wait until it is cooled down sufficiently for
replacement. The time required for cooling down the lamp is
an hour when it is left with its power supply turned OFF,
while it is 30 minutes when the lamp is turned OFF with
"LAMP" of the AUX FUNC set at "0".
4.6.1 Installation procedure
(1) Remove the two mounting screws of the light source chamber cover with a
screwdriver and remove the light source chamber cover.

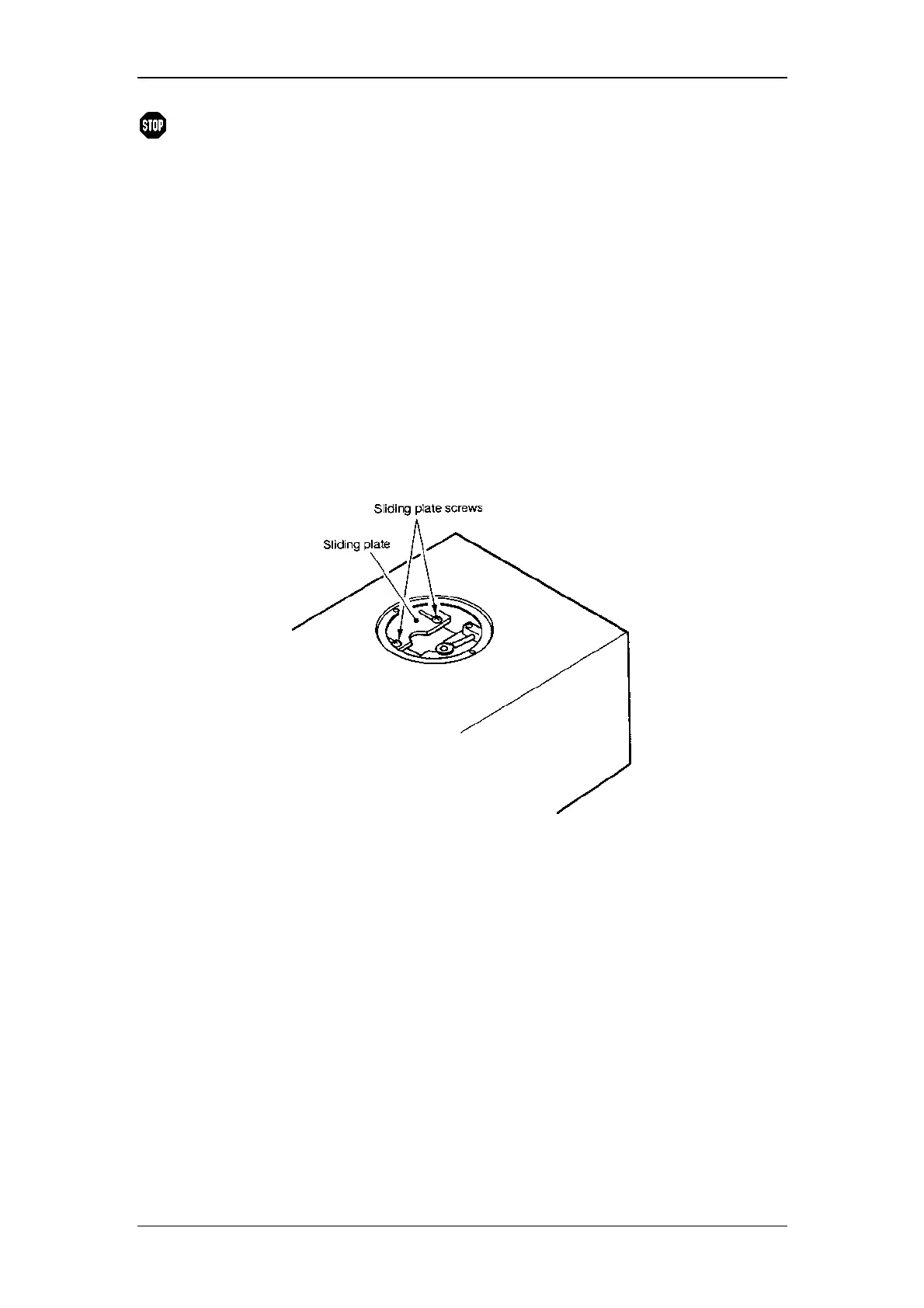

(2) Loosen the sliding plate screws and slide the sliding plate so that the inside of
the light source chamber case can be seen.
(3) Insert the supplied screwdriver in the hole for screwdriver for lamp fixing along
the guide and turn in counterclockwise to loosen the lamp fixing screw.
(4) Take the xenon lamp out of the case and remove the knurled screws at the
plus pole and the minus pole of the lamp.
(5) Turn the plus pole of Xenon lamp upward, and insert the xenon lamp into the
xenon lamp holder with the gas filling protrusion (tip off) of the xenon lamp
faced to the opposite side of the beam-condensing mirror.
To Next Page
