4 Installing an ODU AIM User’s Manual
44

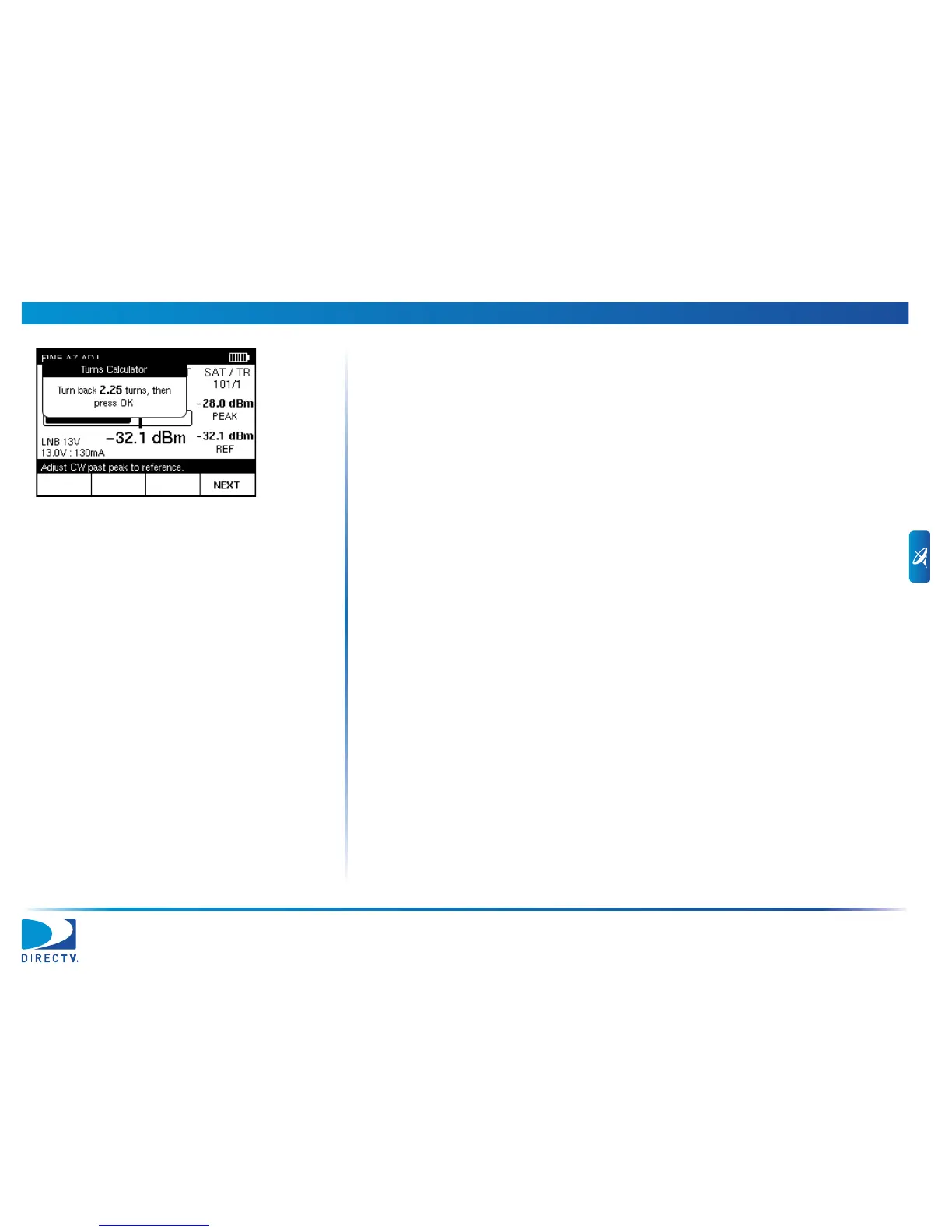

8 Refer to the AIM screen and turn the azimuth jack screw counterclockwise the
number of turns indicated on the AIM screen.
9 Tighten the azimuth lock-down screws.
10 Press OK and then NEXT to continue.
