4 Installing an ODU AIM User’s Manual
39
Task A. Installation Setup
To perform the installation setup:
1 Start the job for the installation (“Starting a Job” on page31).
2 From the HOME screen, press INSTALL.

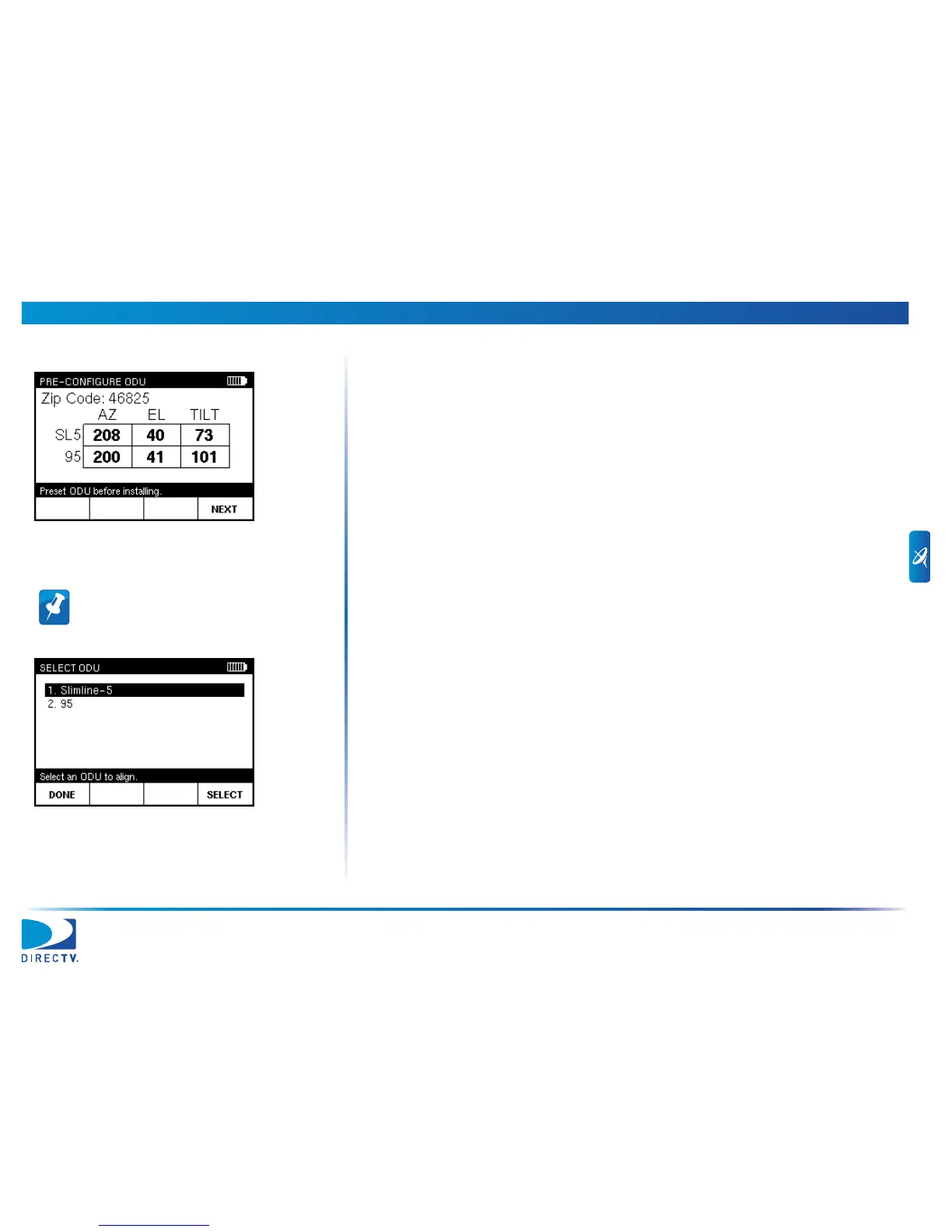

The PRE-CONFIGURE ODU screen appears showing the default azimuth and
elevation coordinates for the job. If appropriate, the default tilt coordinate also
appears.
3 Perform the ODU site survey. Using the AIM azimuth and elevation coordinates,
confirm that the selected location has a clear line-of-sight to the supported
orbital slots (see “ODU Installation Tasks” on page38).
4 Install the ODU according to the DIRECTV procedure.
5 Connect the AIM’s ODU F Connector to the ODU’s LNB output.
6 Press NEXT on the PRE CONFIGURE ODU screen.
If the installation includes two ODUs, the SELECT ODU screen appears.
Use c or d to highlight the ODU to align and press SELECT to continue.
Note: The default coordinates for the job are
based on the ODU type and zip code selected
for the job.
To Next Page
