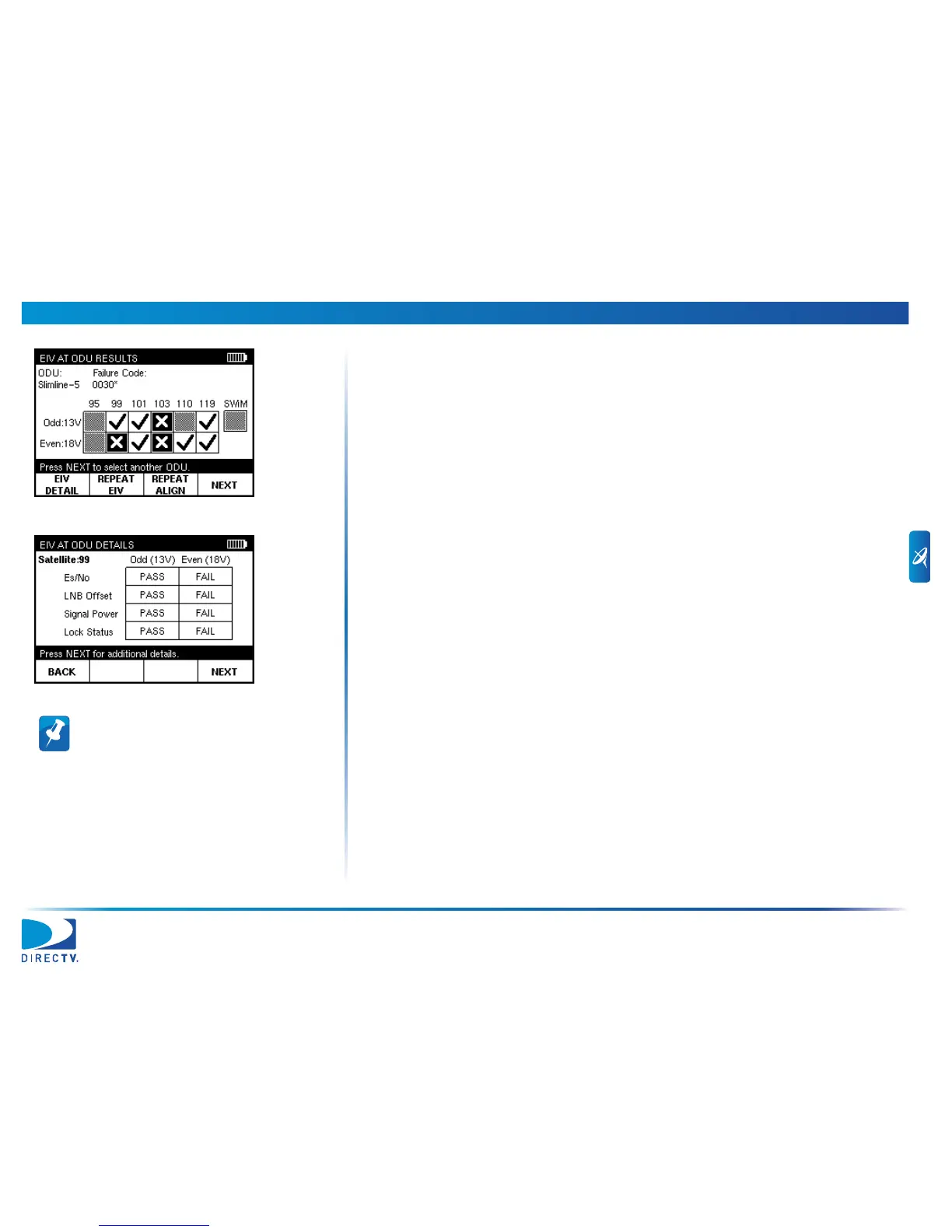

2 On the EIV AT ODU RESULTS screen, review the results for all supported orbital
slots and SWiM channels (if applicable). A satisfactory result is indicated by 9.
A problem is indicated by X.
If 9 appears for all supported orbital slots, the ODU alignment is acceptable.
If X appears for an orbital slot, perform the following steps:
a Press REPEAT EIV to confirm the problem.
b If X appears again for one or more orbital slots, you can press EIV DETAIL to
determine which tests failed. Troubleshoot any failures following the
instructions provided by DIRECTV.
c To repeat the alignment process, press REPEAT ALIGN.
3 When you have finished reviewing EIV results on the EIV AT ODU RESULTS
screen, you can press DONE to return to the HOME screen.
If the installation includes two ODUs, you can press NEXT to return to the
SELECT ODU screen and align the other ODU.
Note: On the EIV AT ODU DETAILS screen, you
can press NEXT to view the details for another
orbital slot, or press BACK to scroll back
through the details to the EIV AT ODU
RESULTS screen.
