6 Performing Other Network Tests AIM User’s Manual
64

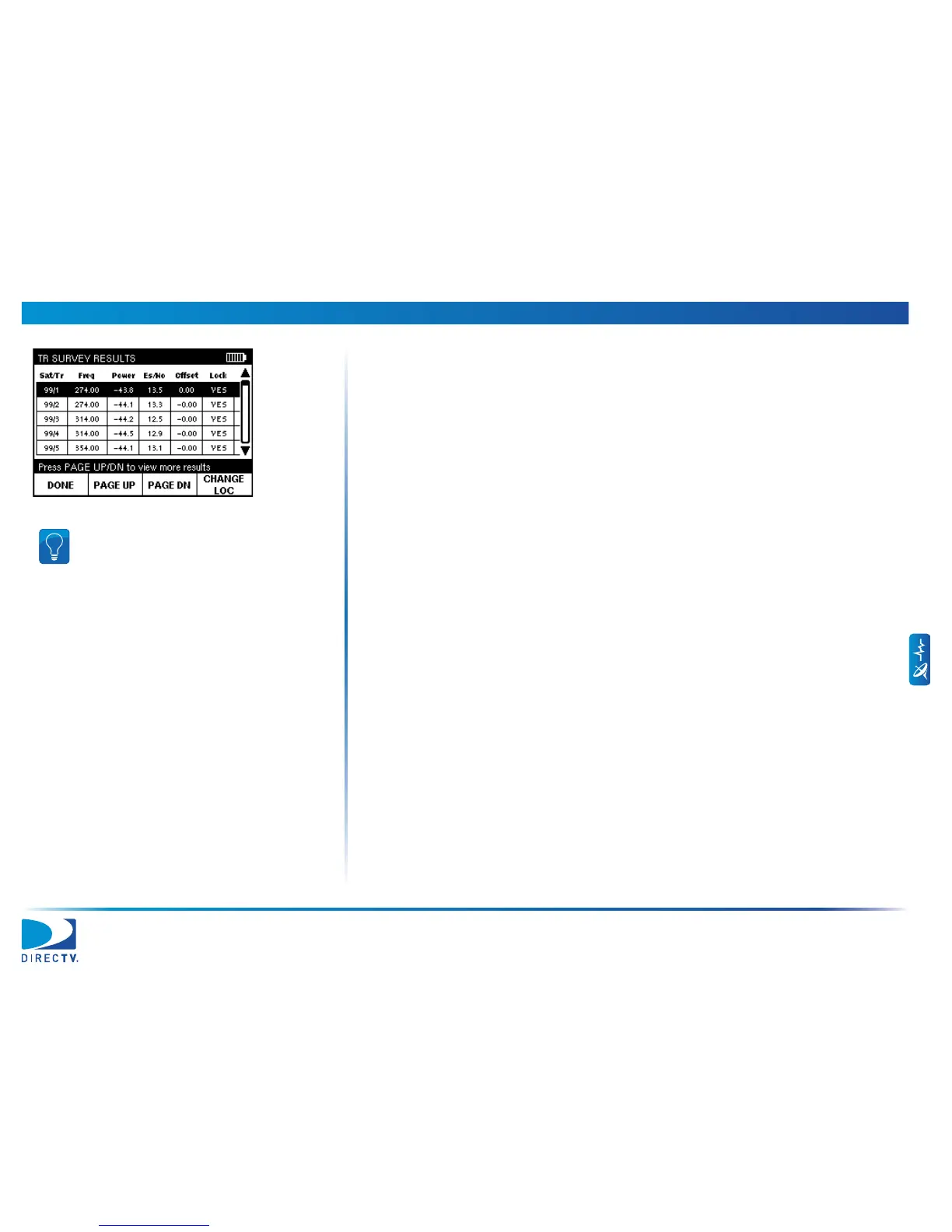

11 Use c or dto review the results of the test. The screen shows the following
information for each transponder:
– Power of the transponder signal (in dBm—power ratio in decibels of the
measured power referenced to one milliwatt).
– Measurement of the carrier-to-noise ratio, expressed as Es/No in decibels.
–Frequency offset of the transponder signal from its expected frequency (in
megahertz)
– Indication whether the transponder signal is above the power lock threshold.
– Voltage supplied (in volts).
– Current supplied (in milliamps).
– ODU used.
– SWiM channel used.
12 Troubleshoot any problems following the instructions provided by DIRECTV.
To repeat the test at a different location, press CHANGE LOC.
13 Press DONE to return to the TEST screen.
Tip: Use PAGE UP and PAGE DN to scroll
quickly through test results.
