Chapter 2: Installation
Operation Manual: Evolution Series

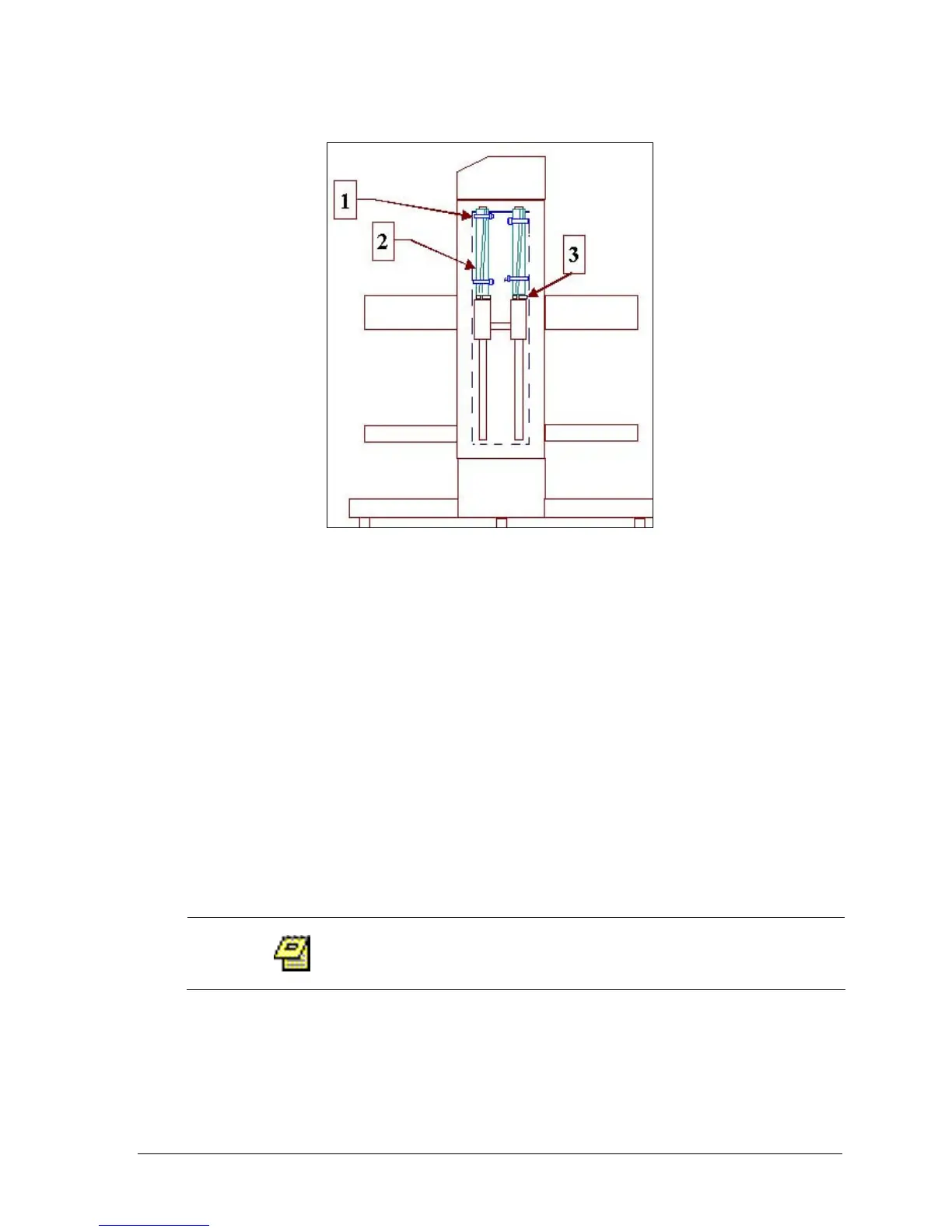

Figure 2-1: Rear View - Inside
Leveling the Evolution System
To level the unit on the bench:
1. Trained personnel should lift the unit onto the bench and slide it into
position.
2. Make certain the two stabilizers under the rear of the base are not touching
the bench.
3. Loosen locking nuts on the front leveling feet using the appropriate (1/2”)
wrench.
4. Observe the permanently mounted circular level on vessel support plate.
Level unit from front to back and side to side by adjusting the two front
leveling feet under the instrument base. See Figure 2-2.
5. Required Action: Tighten the locking nut on each foot at this time.
6. After leveling, adjust the two stabilizers under the rear of the instrument
base so that they just touch the bench.
7. Mark the location of the leveling feet on the bench to prevent changes in
level due to moving the unit. Check the level after completing installation,
Do not loosen the rear levelling foot. Level the
unit by adjusting the front levelling feet.
