Chapter 1: Introduction
Operation Manual: Evolution Series
General Instrument Overview

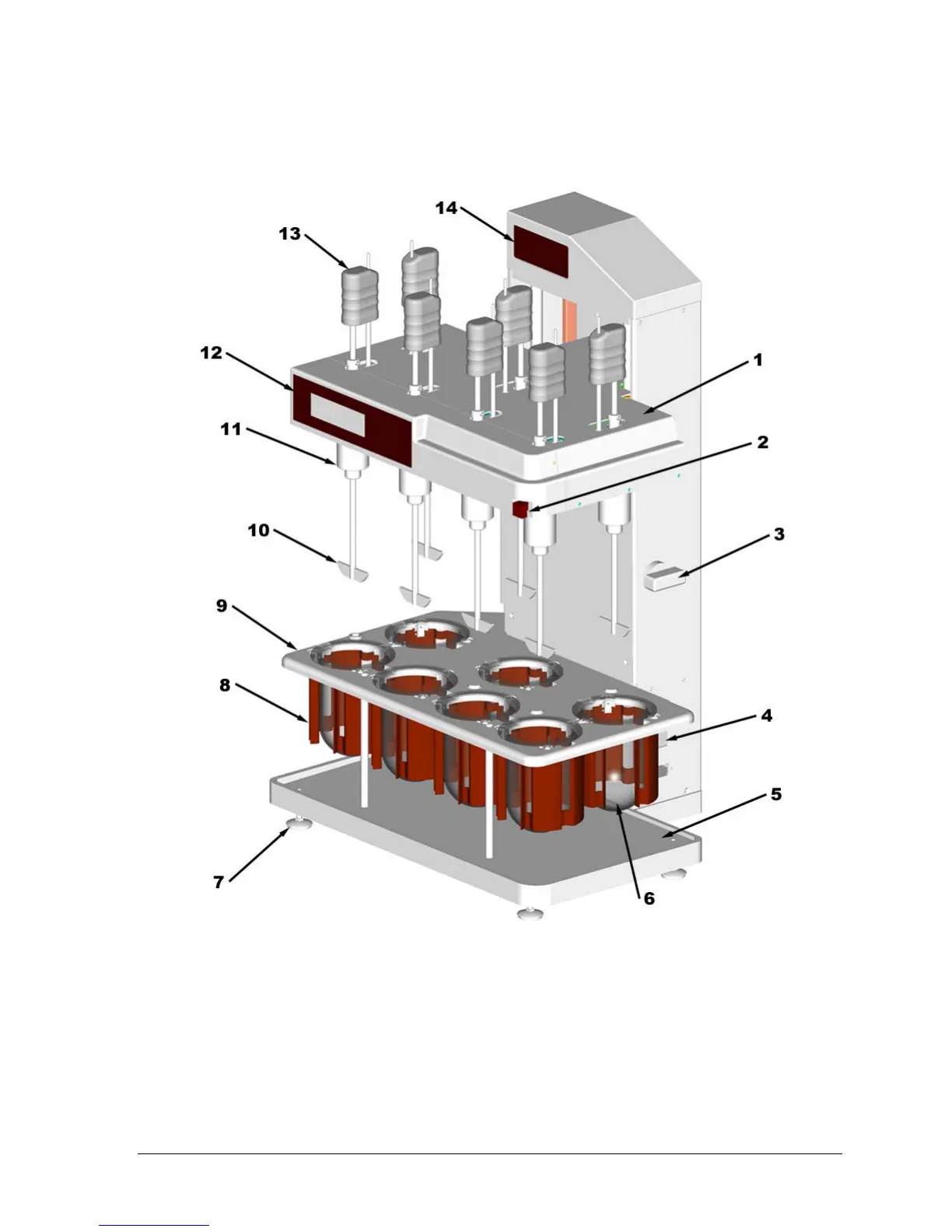

Figure 1-1: Distek Evolution 6100
1. Drive Unit 6. Glass Vessel 11. Spindle Assembly
2. Brake Release 7. Leveling Feet 12. Front LCD Display
3. Height Adjustment Knob 8. Heater Assembly 13. Shaft Handle
4. Power Switch 9. Vessel Support Plate 14. Top LED Display
5. Base Plate 10. Paddle Blade
