Chapter 2: Installation
Operation Manual: Evolution Series

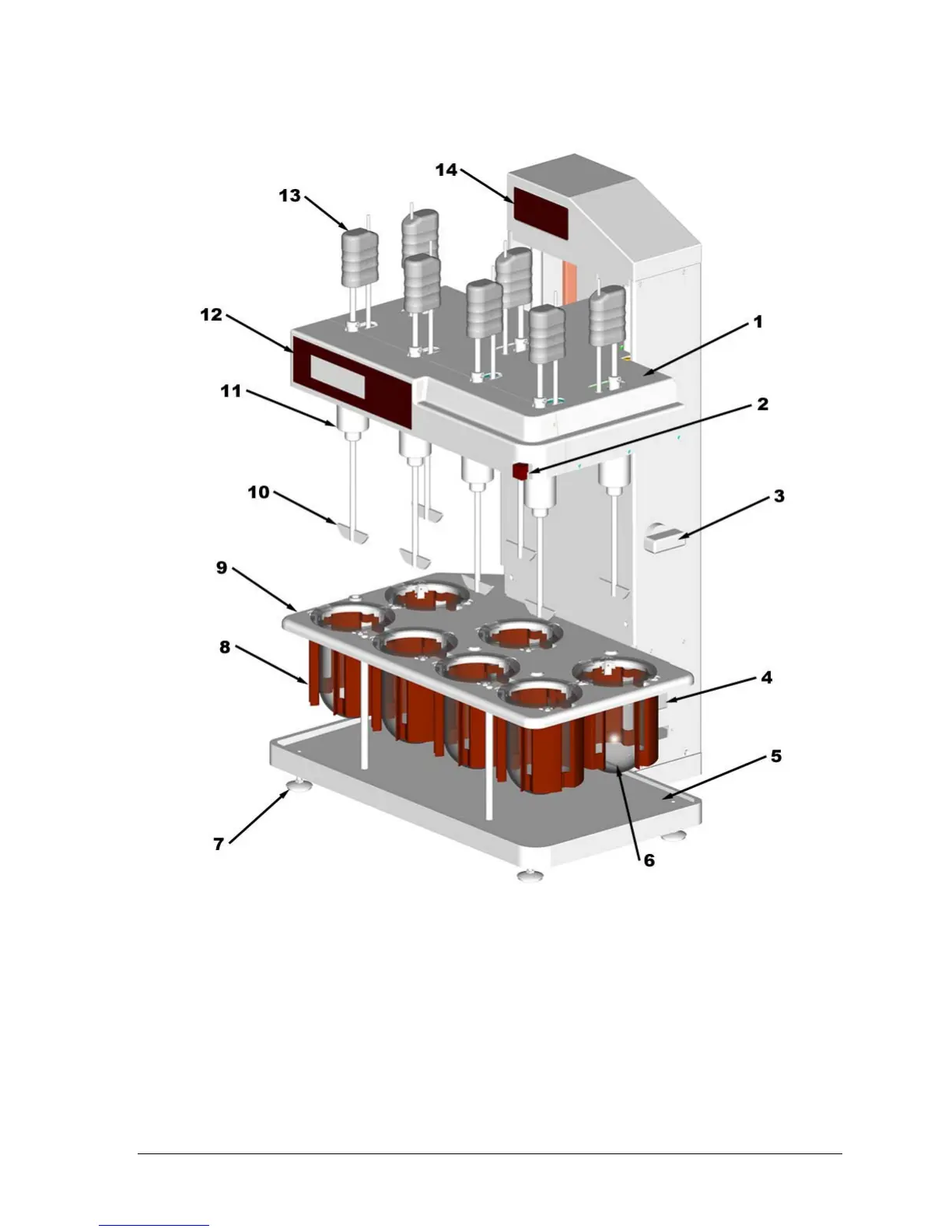

Figure 2-3: Evolution Dissolution System
1. Drive Unit 6. Glass Vessel 11. Spindle Assembly
2. Brake Release 7. Leveling Feet 12. Front LCD Display
3. Height Adjustment Knob 8. Heater Assembly 13. Shaft Handle
4. Power Switch 9. Vessel Support Plate 14. Top LED Display
5. Base Plate 10. Paddle Blade
