Transport - 114 JT40/JT40 All Terrain Operator’s Manual
Lift
Lift
This machine is not configured for lifting. If the machine must be lifted, load machine into a container or
onto a platform appropriate for lifting. See “Specifications” for weight of machine.
Pipe Box Lifting Procedure

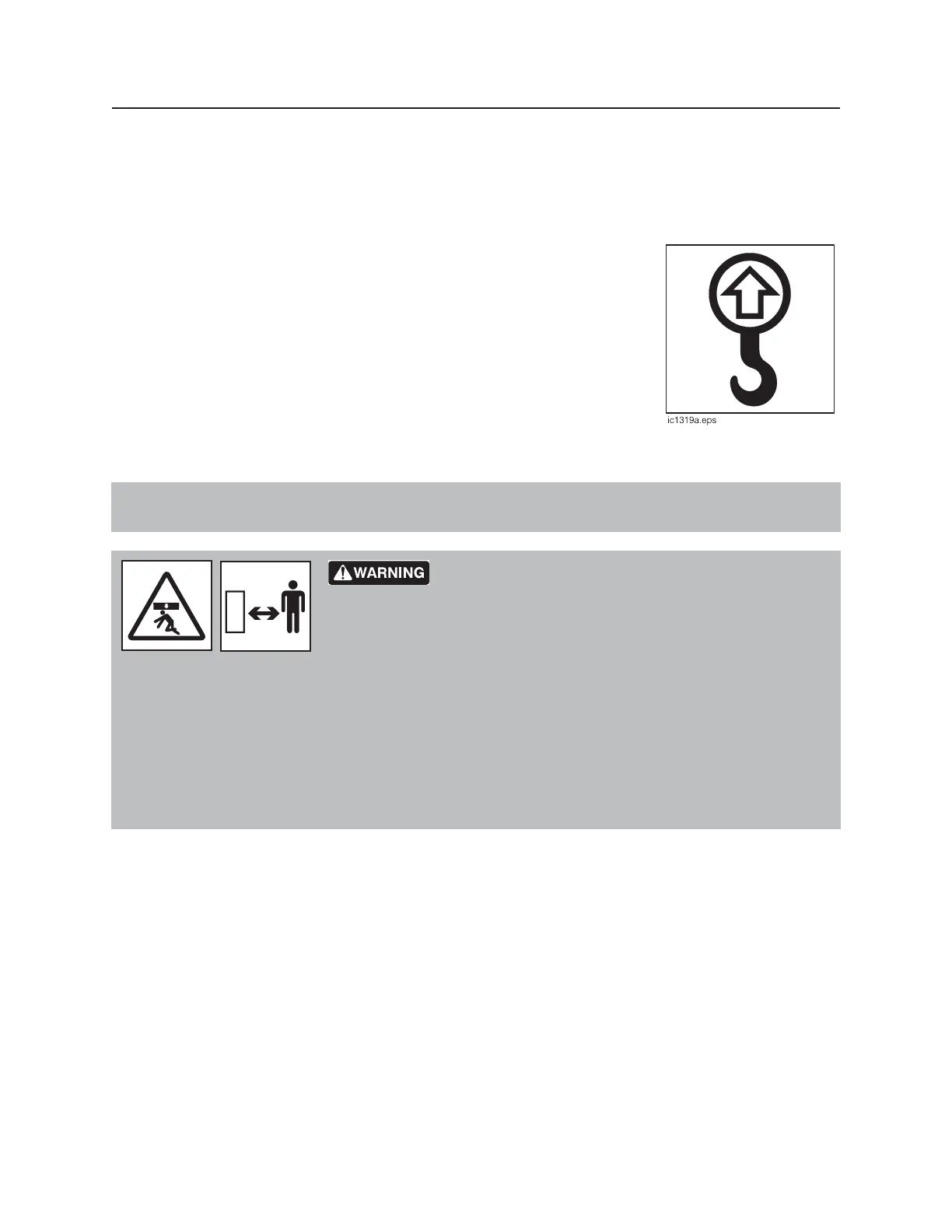

Pipe box lifting points are identified by lifting decals. Lifting at other points is
unsafe and can damage machinery.
See “Remove/Install Pipe Box” on page 175.
Load
1. Start drilling unit engine.
2. Select “loading and unloading mode (low).”
3. Move drilling unit to rear of trailer and align with ramps.
4. Slowly drive unit onto trailer.
5. Lower stabilizers to trailer floor.
6. Lower drill frame to trailer floor.
7. Stop engine when unit is safely positioned on trailer bed for proper tongue weight.
8. Attach tiedowns to drilling unit where indicated on page 115.
9. Ensure that all covers are properly secured.
NOTICE: Machine should be loaded using wireless remote controller. See “Wireless Remote Controller”
on page 24.
Crushing weight could cause death or serious injury. Stay
away.
275-326
To help avoid injury:
• Attach trailer to tow vehicle before loading or unloading.
• Load and unload trailer on level ground.
• Block trailer wheels.
• Prevent trailer sway by loading ten to fifteen percent of total vehicle weight (equipment plus trailer)
on tongue.
