Controls - 44 JT40/JT40 All Terrain Operator’s Manual

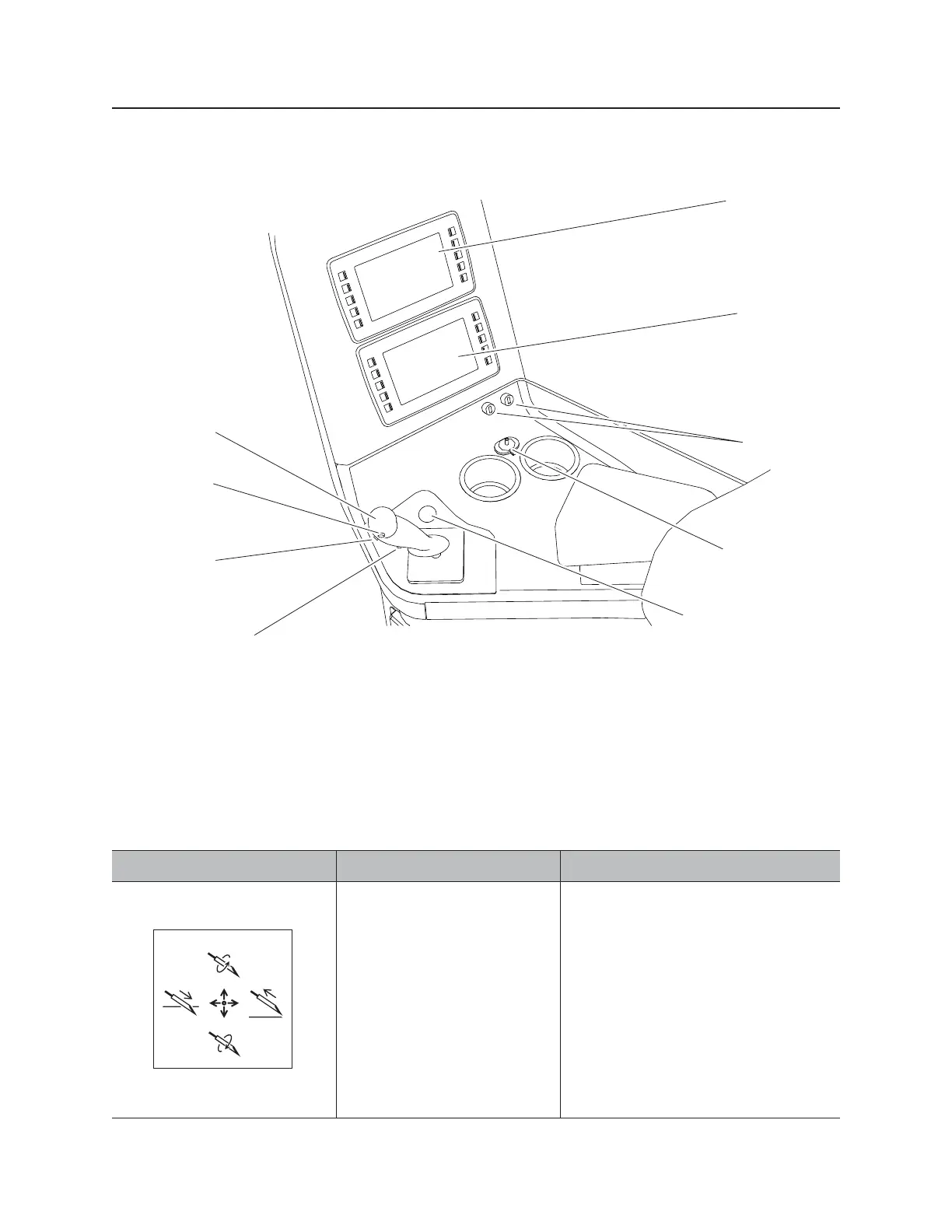

Right Control Console
Right Control Console
1. Carriage control joystick
2. Drilling fluid quick fill switch
3. Remote engine stop switch
4. Drilling fluid pump switch
5. Multi-use button
6. USB port
7. Lower/Remote* display
8. Upper display
9. Auxiliary outlet
*See tracker manual
Item Description Notes
1. Carriage control
joystick
To move carriage forward,
push.
To move carriage backward,
pull.
To rotate spindle
counterclockwise (breakout),
move right.
To rotate spindle clockwise
(makeup), move left.
IMPORTANT: See “Operate Carriage
Control” on page 123 for more
information.
