Pipeloader
Prepare

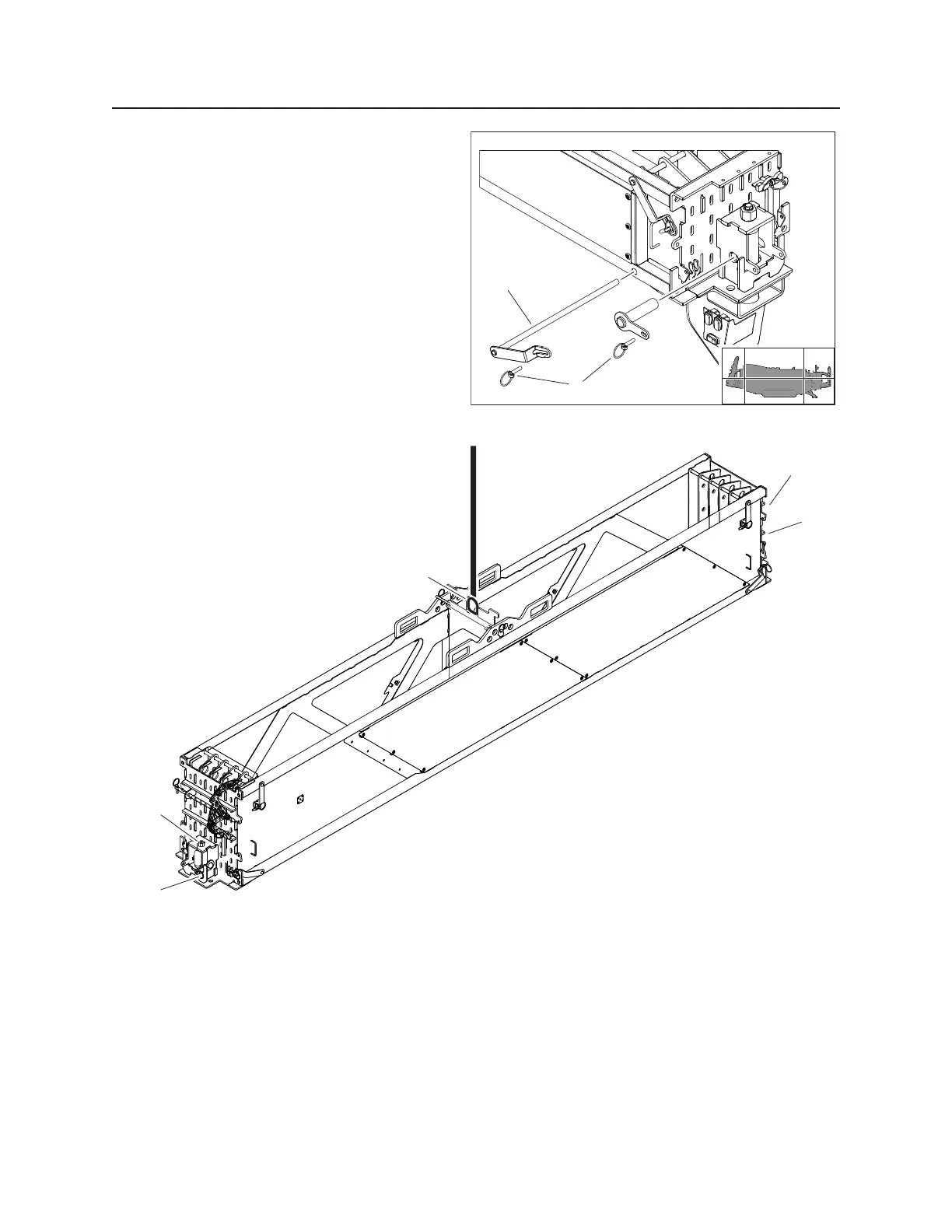

1. Lift pipe and remove pins (2) and support
bars (1) from pipe box storage pockets.
2. Insert each support bar (1) into opening and
retain with pin through tab.
3. Press pipe lower switch to lower pipes onto
support bars.
Remove Pipe Box
1. Install lift block (4) and secure with lift block support bar and pins. Adjust to match drill frame angle.
2. Remove threaded caps (1) from pins.
3. Remove pins (2).
4. Move pipe box off of drill frame.
