Right Control Console

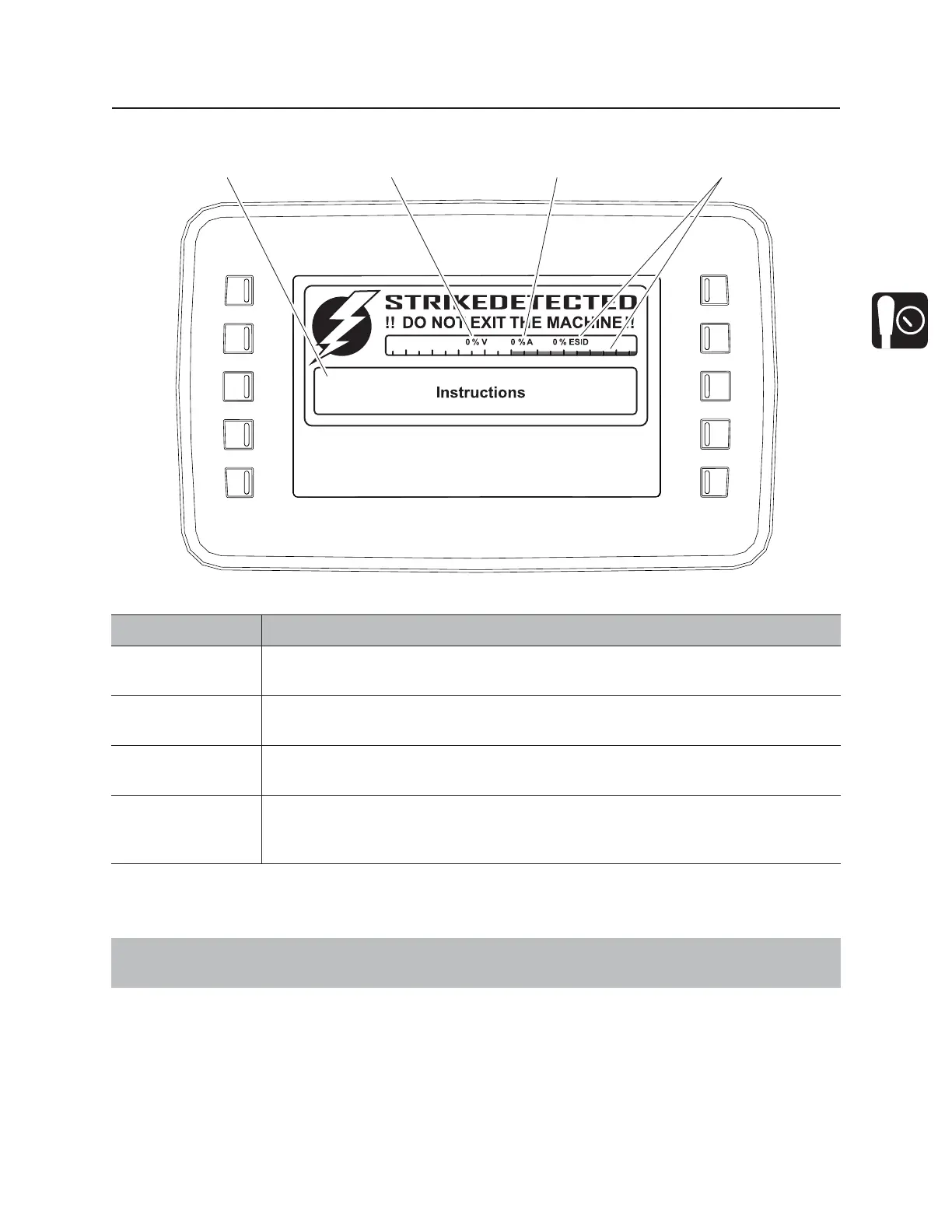

ESID Strike Display
The above screen is displayed when an electrical strike is detected. For more information, See “Electric
Strike System” on page 152.
Item Description
1. Instruction
display
Follow the instructions on the screen when a strike is detected.
2. Voltage
indicator
Indicates percentage of voltage difference detected between voltage limiter and
unit. 30 volts will display as 100%.
3. Current
indicator
Indicates percentage of current being detected at the current transformer. 300
milliamps will display as 100%.
4. Strike
condition
indicator
Indicates the total combined percentage of detected voltage and current and
displays it graphically. An alarm condition occurs when the total combined
percentage is equal to or greater than 100%.
IMPORTANT: The ESID does not indicate proximity to electric lines. System will activate only when
voltage and/or amperage detected at the drilling unit are above threshold minimum limits.
