35
IP2246EN
EN
NOTE: make adjustments gradually and only after performing at least three complete
operations to allow the control panel to be set correctly and detect any friction during
operations.

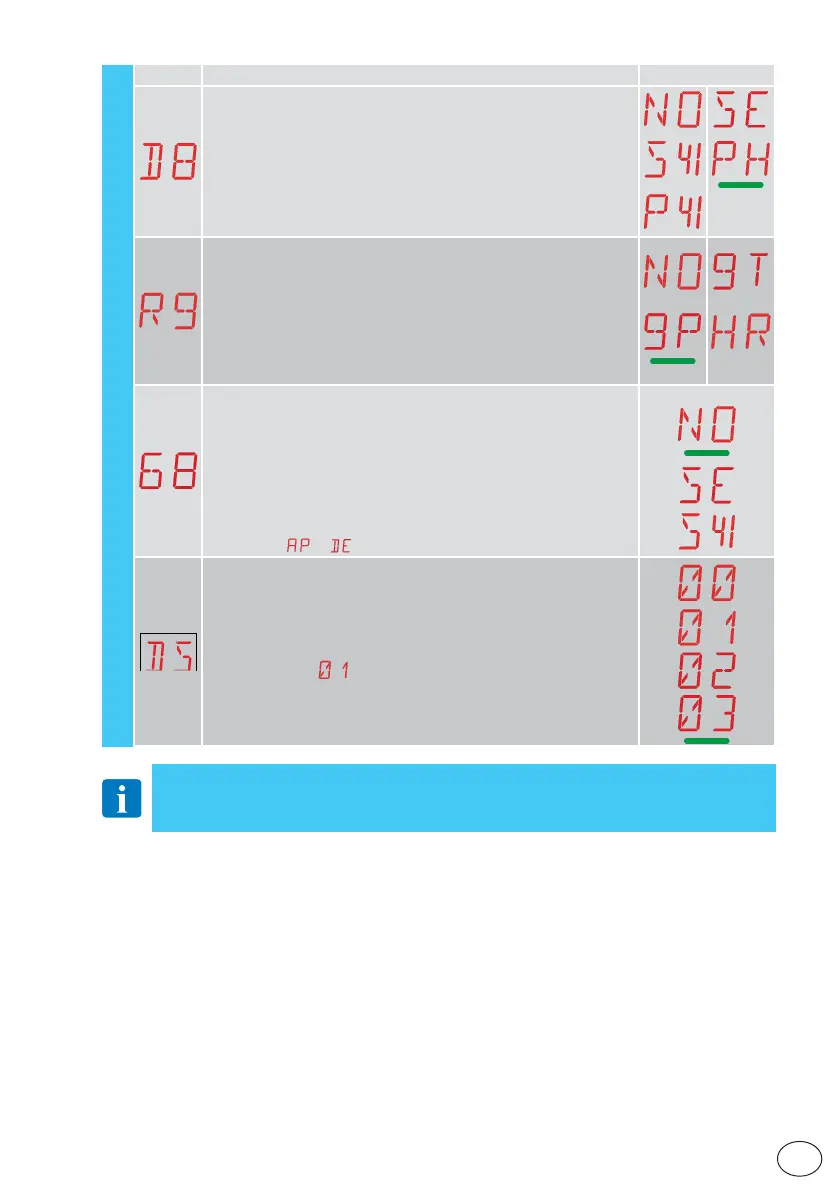

Display Description Selections available
D8 - Selection of device connected to terminals 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
PH - Photocells
P41 - Photocells with safety test
R9 - Configuration of input 30-9
NO - Disabled
9P - The opening of the input causes a permanent stop
9T - The opening of the input causes a temporary stop. When the con-
tact closes, the automatic closure time is activated (if enabled)
HR - With the input open, the automation operates in "operator pres-
ent" mode
68 - Selection of the device simultaneously connected to terminals
1-6 and 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
If different from NO, the simultaneous opening of inputs 1-6 and 1-8
causes:
- movement stop and reversal during a closing operation
- movement stop and disengagement of a duration depending on the
selection
during an opening operation
DS - Setting of display visualisation mode
00 - No visualisation
01 - Commands and safety devices with radio test. Display of count-
down to automatic closing
02 - Automation status (see paragraph 13.1)
03 - Commands and safety devices (see paragraph 13.2)
NOTE: the setting
allows you to see when a radio transmission is
received, for range checks.
AP - Advanced parameters
