DITEC LCU40H User Manual

37
IP2246EN
EN

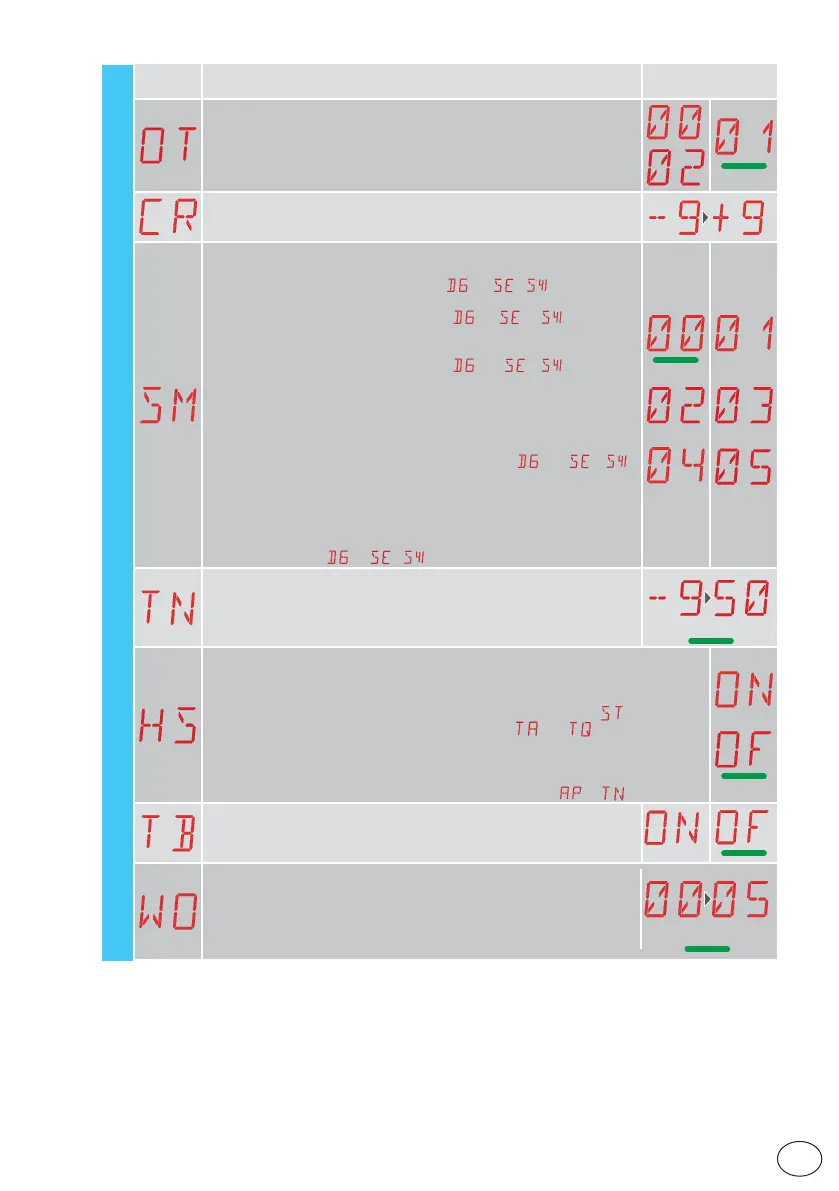

Display Description
Selections
available
OT - Selection of type of obstacle
00 - Overcurrent or gate stopped
01 - Overcurrent
02 - Door stopped
CR - Stroke estimate correction [%]
DO NOT USE (diagnostic purposes only)
SM - Selection of operating mode of device connected to terminals 1-6
00 - During the operation, the opening of the safety contact stops the
movement (with disengagement if
→ / ).
01 - During the operation, the opening of the safety contact stops the
movement (with disengagement if
→ / ). When the
contact closes again, the interrupted operation is resumed.
02 - During the operation, the opening of the safety contact stops the
movement (with disengagement if
→ / ). When the
contact closes again, an opening operation is performed.
03 - During the closing operation, the opening of the safety contact
reverses the movement. During the opening operation, the safety
device is ignored.
04 - During the opening operation, the opening of the safety contact
stops the movement (with disengagement if
→ / ).
When the contact closes again, the interrupted opening operation is
resumed. During the closing operation, the safety device is ignored.
05 - During the closing operation, the opening of the safety contact
stops and reverses the movement. During the opening operation,
the opening of the safety contact stops the movement (with dis-
engagement if
→ / ).
TN - Setting of intervention temperature for NIO electronic an-
ti-freeze system and automatic HS ramps [°C]
This value does not refer to the ambient temperature, but to the internal
control panel temperature.
10
HS - Automatic ramp adjustment
ON - Enabled
OF - Disabled
When enabled (ON), at low ambient temperatures the start time
increases up
to the maximum value and the acceleration time
and diminishes to the
minimum value.
NOTE: for correct operation, the control panel must be exposed to the same am-
bient temperature as the motors.
The intervention temperature can be set via the selection
→ .
TB - Permanent display of the internal control panel temperature [°C]
WO - Setting of pre-flashing time on opening [s]
Adjustment of the lead time for the switch-on of the flashing light, in
relation to the start of the opening operation from a voluntary command.
00 - Minimum
05 - Maximum
00
AP - Advanced parameters
