Phantom 4 RTK User Manual

Aircraft Status Indicators

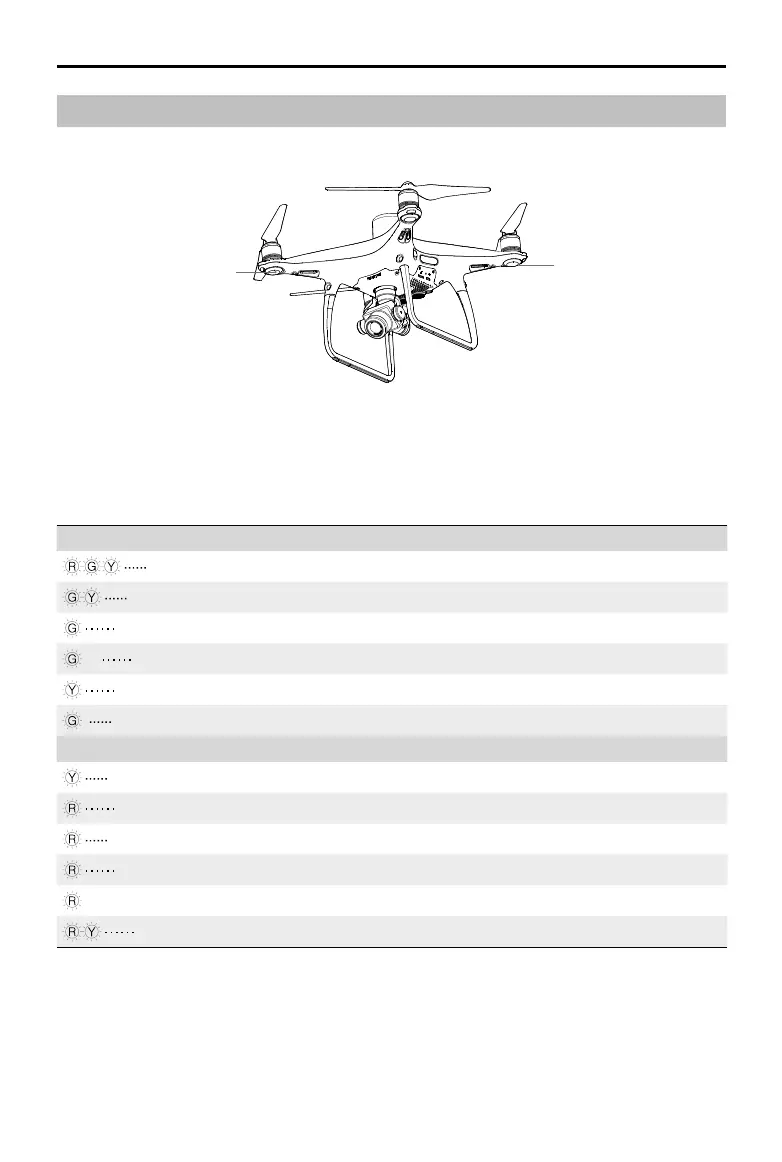

The Phantom 4 RTK has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are shown

in the gure below:

Front LEDs

Aircraft Status Indicators

Aircraft Status Indicator Description

Normal

Alternate red, green and yellow ashing Turning On and Self Diagnostic Testing

Alternate green and yellow ashing Warming Up

Slow green ashing P-mode with GNSS or RTK

×2 Two green ashes P-mode with Vision System

Slow yellow ashing A-mode but No GNSS or Vision System

Fast green ashing Braking

Warning

Fast yellow ashing Remote Controller Signal Lost

Slow red ashing Low Battery Warning

Fast red ashing Critical Battery Warning

Red ashing Uneven Placement or Large Sensors Bias

—

Solid red Critical Error

Alternate red and yellow ashing Compass Calibration Required

The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is turned

on to indicate the front (or nose) of the aircraft. The Aircraft Status Indicators communicate the system sta-

tus of the ight controller. Refer to the table below for more information about the Aircraft Status Indicators.
