Phantom 4 RTK User Manual
Aircraft Overview

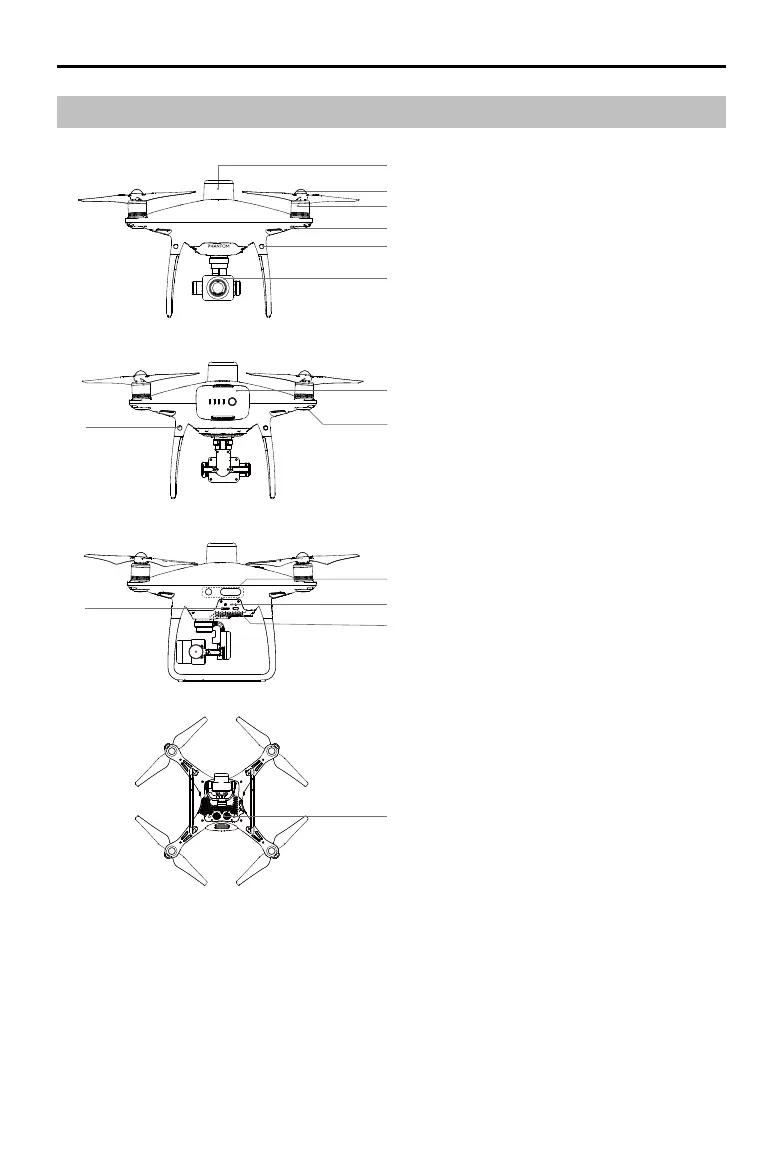

1. Onboard D-RTK Antenna
2. Propellers
3. Motors
4. Front LEDs
5. Forward Vision System
6. Gimbal and Camera
7. Intelligent Flight Battery
8. Aircraft Status Indicator
9. Rear Vision System
10. Infrared Sensing System
11. Camera / Linking Status Indicator and
Link Button
12. Micro USB Port
13. Camera microSD Card Slot
14. Downward Vision System
1
2
3
4
5
6
7
8
11
10
14
12
13
9
