Gimbal and Camera
Camera
Prole
The Phantom 4 RTK camera uses a 1-inch CMOS sensor with eective pixels of 20 M and a 24 mm (35 mm
format equivalent) wide-angle lens. It is equipped with a blue glass lter to deliver enhanced picture quality
and a UV lens for additional protection. An ND lter can be used when the operating environment is too
bright.
The Phantom 4 RTK supports the capture of 4K at 30fps and a maximum video bitrate of 100 Mbps.
The 20 megapixel photos taken by Phantom 4 RTK is the result of the application of advanced image
processing technique. A mechanical shutter with a 1/2000 max speed eliminates rolling shutter distortion
when capturing stills of fast moving objects.
Camera Micro SD Card Slot

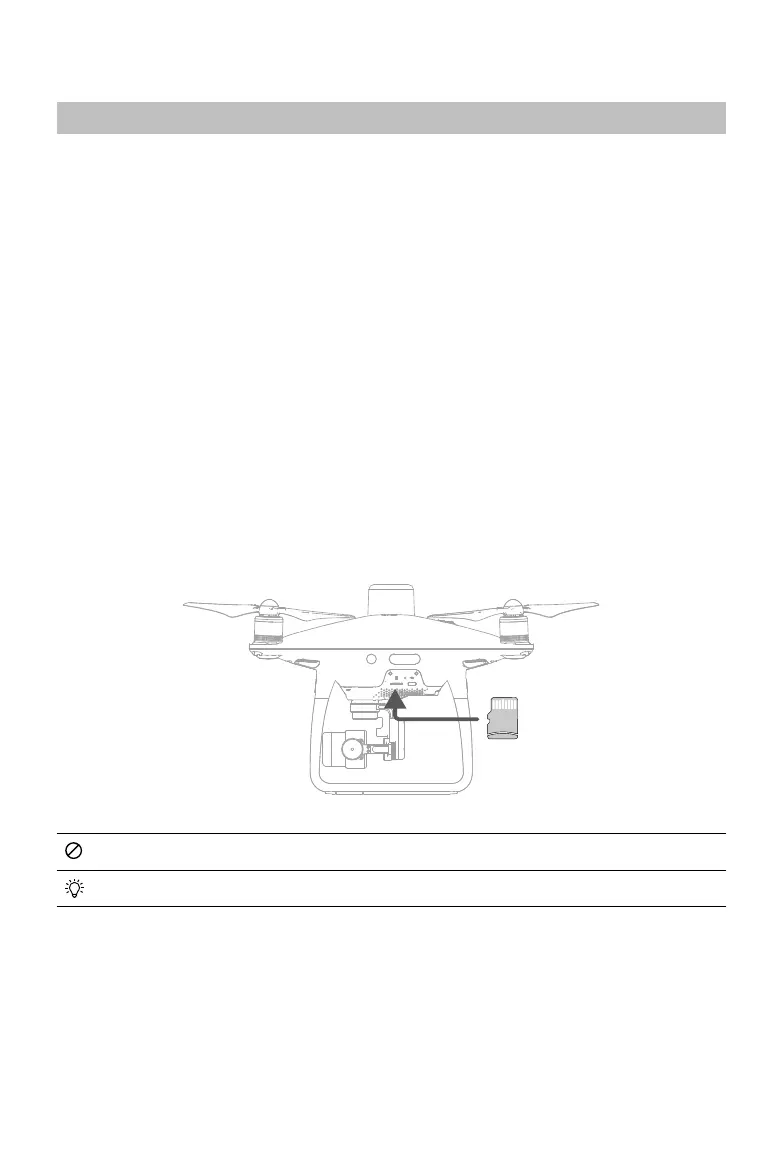

To store your photos and videos, insert the microSD card into the slot as shown below before turning on the
aircraft. The Phantom 4 RTK comes with a 16 GB microSD card and supports microSD cards up to 128 GB.
A UHS-1 and above microSD card is recommended due to their fast read and write speeds that support
high-resolution video data. Users can read the photos and videos, and the raw satellite observations during
Photogrammetry and Waypoint Flight operations from the microSD card.
Do not remove the microSD card from the aircraft when it is shooting.
To ensure the stability of the camera system, single video recordings are capped at 30 minutes.

dji Phantom 4 RTK Specifications

General

Type	Quadcopter
Product color	White
Construction type	Ready-to-fly (RTF)
Suitable for outdoor use	Yes
Maximum speed	16.1 m/s
Frequency band	2.4 - 2.483 GHz
Number of rotors	- rotors
Maximum flight time	30 min
Maximum ascent speed	6 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Horizontal hover accuracy	0.1 m
Maximum operating distance	- m
Megapixel	20 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Camera shutter speed	8 - 1/8000 s
Image formats supported	JPEG
Video formats supported	H.264
Maximum image resolution	5472 x 3648 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	84 °
Built-in processor	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Number of waypoints	199
Moving control functions	Downward, Forward
Operating frequency	2400 - 2483/5725 - 5850 MHz
Battery voltage	15.2 V
Battery capacity	5870 mAh
Transmitter battery capacity	6000 mAh
Output power	160 W
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, Micro-USB, USB Type-C
Memory card included	MicroSD
Included memory card size	16 GB

Weight and Dimensions

Battery weight	468 g
