Phantom 4 RTK User Manual
Camera Operation
Use the Shutter and Video Recording buttons on the remote controller or in the DJI GS RTK app to shoot
the photos or videos.

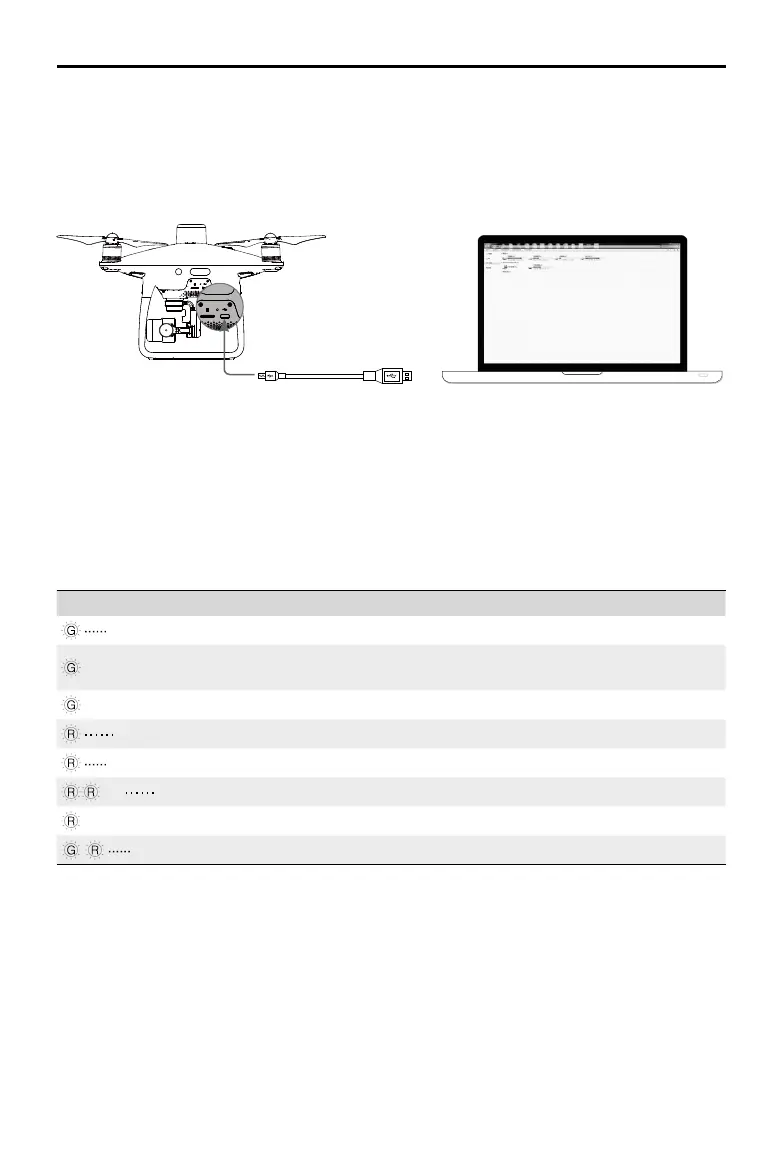

Camera Status LED Indicator Descriptions
The Camera LED Indicator lights up after the ight battery is powered on. It provides information on the
working status of the camera.
Camera LED Indicator Camera status
Green Fast Blink System is warming up
— Solid Green
The system is warmed up, the microSD card is inserted and
working properly
Green Blink Once Taking a single picture
Slow Red Blink Recording
Fast Red Blink microSD card error
×2 Double Red Blink Overheated Camera
—— Solid Red System error
Green and Red Blink Firmware Upgrading
Micro USB Port
Turn on the aircraft and connect a Micro USB cable to the Micro USB Port to update rmware,
read the photos and videos, and the raw satellite observations during Photogrammetry and
Waypoint Flight operations.

dji Phantom 4 RTK Specifications

General

Type	Quadcopter
Product color	White
Construction type	Ready-to-fly (RTF)
Suitable for outdoor use	Yes
Maximum speed	16.1 m/s
Frequency band	2.4 - 2.483 GHz
Number of rotors	- rotors
Maximum flight time	30 min
Maximum ascent speed	6 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Horizontal hover accuracy	0.1 m
Maximum operating distance	- m
Megapixel	20 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Camera shutter speed	8 - 1/8000 s
Image formats supported	JPEG
Video formats supported	H.264
Maximum image resolution	5472 x 3648 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	84 °
Built-in processor	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Number of waypoints	199
Moving control functions	Downward, Forward
Operating frequency	2400 - 2483/5725 - 5850 MHz
Battery voltage	15.2 V
Battery capacity	5870 mAh
Transmitter battery capacity	6000 mAh
Output power	160 W
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, Micro-USB, USB Type-C
Memory card included	MicroSD
Included memory card size	16 GB

Weight and Dimensions

Battery weight	468 g
