(11) Remove the cowl plenum cover/grille panel
from the vehicle.
(12) Remove the three screws that secure the vac-
uum reservoir to the underside of the cowl plenum
cover/grille panel.
(13) Remove the vacuum reservoir from the cowl
plenum cover/grille panel.
(14) Reverse the removal procedures to install.
Tighten the vacuum reservoir mounting screws to 2.2
N·m (20 in. lbs.).
ADJUSTMENTS
TEMPERATURE CONTROL CABLE
Any time the heater-A/C control or the tempera-
ture control cable are removed and/or replaced, the
following procedure must be performed.
(1) The temperature control cable housing and core
must be installed at both the heater-A/C control and
the heater-A/C housing ends, and the heater-A/C con-
trol must be installed in the instrument panel. See
Heater-A/C Control and Temperature Control Cable

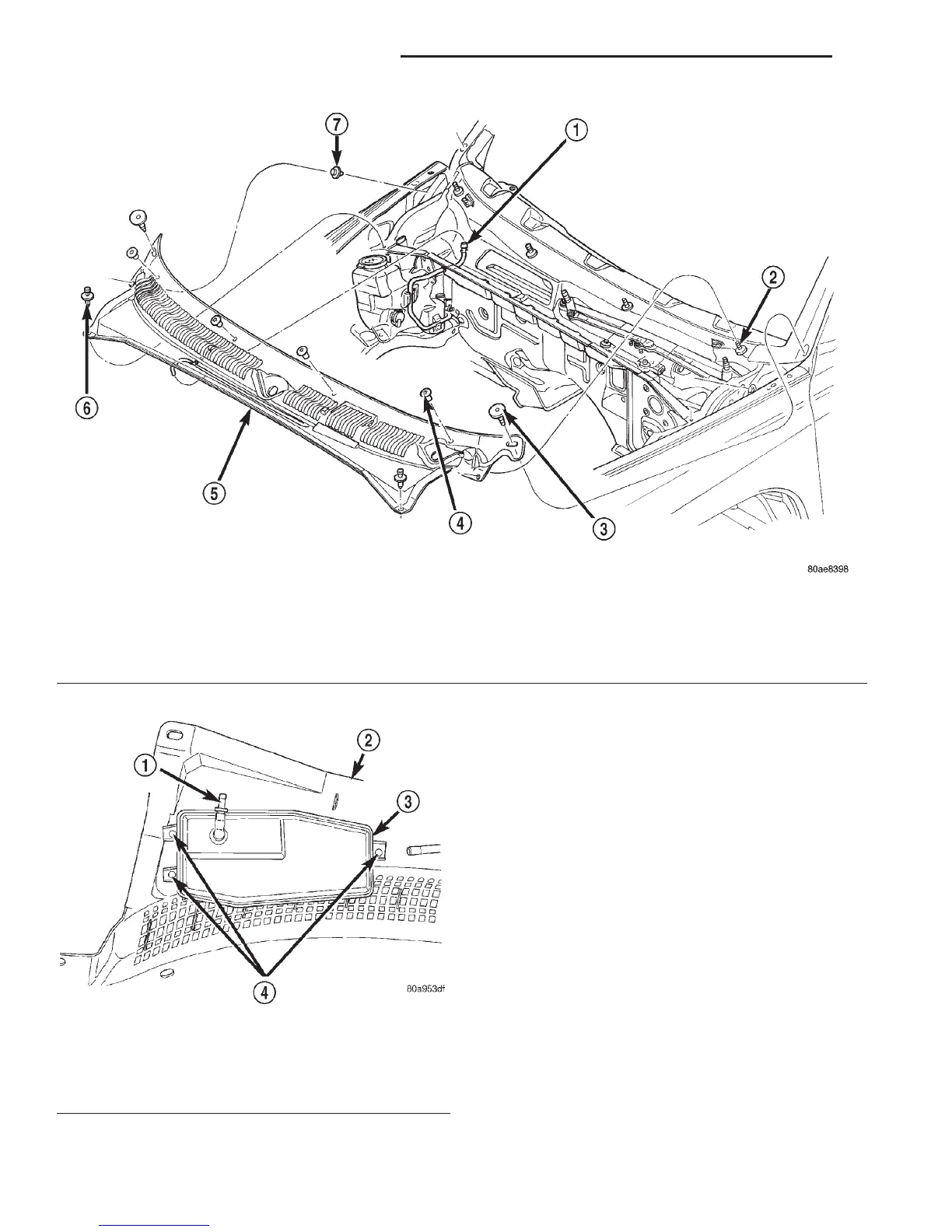

Fig. 90 Cowl Plenum Cover/Grille Panel Remove/Install
1 – IN-LINE WASHER SUPPLY HOSE CONNECTOR
2 – STUD
3 – PUSH-IN PLASTIC RETAINER
4 – PLASTIC NUT
5 – COWL PLENUM COVER/GRILLE PANEL
6 – PLASTIC RIVET
7 – ADHESIVE-BACKED SNAP FASTENER
Fig. 91 Vacuum Reservoir
1 – VACUUM SUPPLY CONNECTOR
2 – COWL PLENUM COVER/GRILLE PANEL
3 – VACUUM RESERVOIR
4 – SCREWS
24 - 72 HEATING AND AIR CONDITIONING DN
REMOVAL AND INSTALLATION (Continued)
