(12) Loosen the Forcing Screw C-4487-2 in small
increments until the clutch pack tension is relieved
and the differential case can be turned using Turning
Bar C-4487-4.
(13) Rotate differential case until the pinion gears
can be removed.
(14) Remove pinion gears from differential case.
(15) Remove Forcing Screw C-4487-2, Step Plate
8139–2, and Threaded Adapter 8139-1.
(16) Remove top side gear, clutch pack retainer,
and clutch pack. Keep plates in correct order during
removal (Fig. 65).
(17) Remove differential case from Side Gear Hold-
ing Tool 8136. Remove side gear, clutch pack retainer,

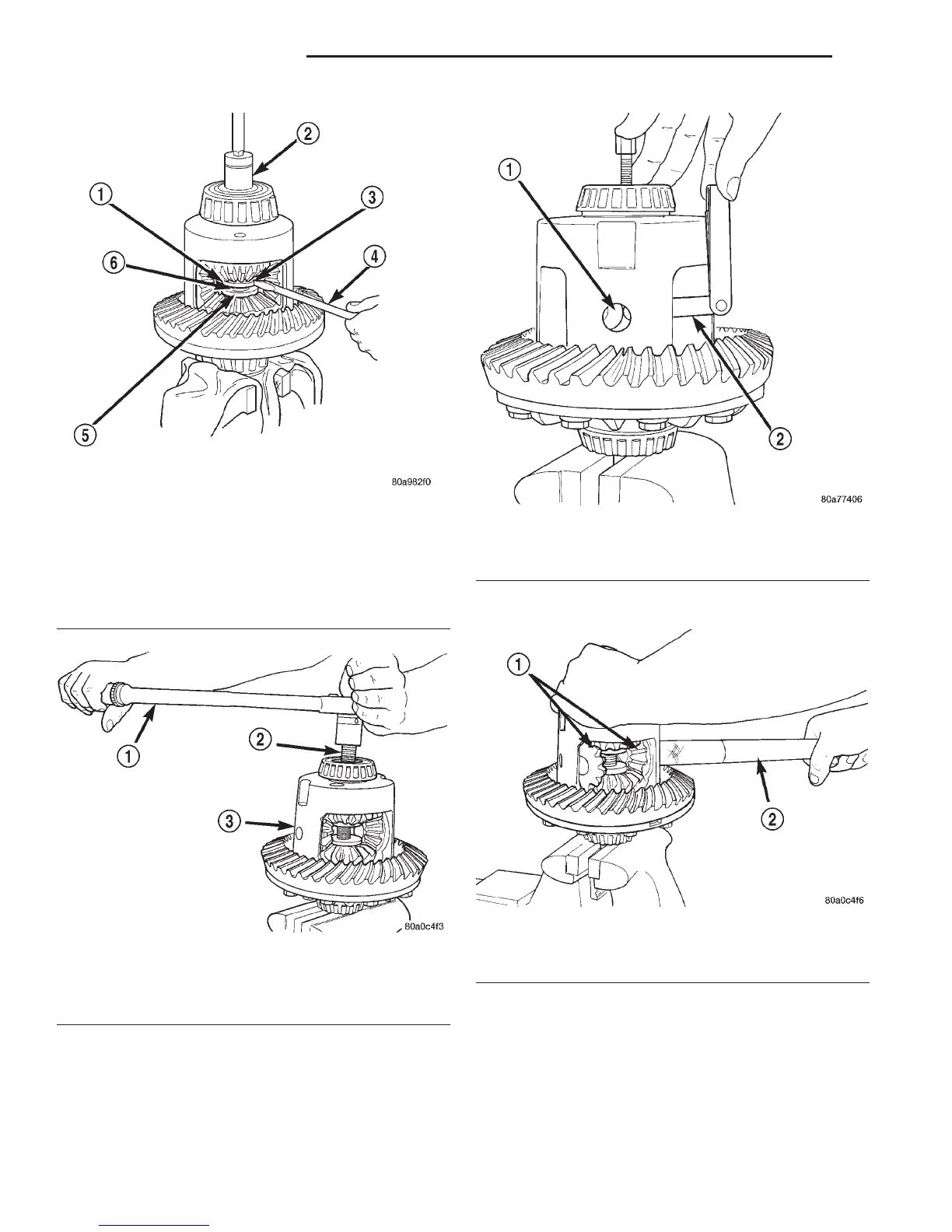

Fig. 61 Threaded Adapter Installation
1 – THREADED ADAPTER DISC 8139–1
2 – SOCKET
3 – SLOT IN ADAPTER
4 – SCREWDRIVER
5 – DISC 8139–2
6 – THREADED ROD C-4487–2
Fig. 62 Tighten Belleville Spring Compressor Tool
1 – TORQUE WRENCH
2 – TOOL ASSEMBLED
3 – DIFFERENTIAL CASE
Fig. 63 Remove Pinion Gear Thrust Washer
1 – THRUST WASHER
2 – FEELER GAUGE
Fig. 64 Pinion Gear Removal
1 – PINION GEARS
2–TOOL
3 - 88 8 1/4 AND 9 1/4 AXLE DN
DISASSEMBLY AND ASSEMBLY (Continued)
To Next Page
