8 1/4 and 9 1/4 INCH AXLE
DESCRIPTION TORQUE
Diff. Cover Bolt ............. 41N·m(30ft.lbs.)
Bearing Cap Bolt—8 1/4 Axle . . 95 N·m (70 ft. lbs.)
Bearing Cap Bolt—9 1/4 Axle .......... 136N·m
(100 ft. lbs.)
Pinion Nut ............... 285N·m(210 ft. lbs.)
Ring Gear Bolt—8 1/4 Axle . . . 102 N·m (75 ft. lbs.)
Ring Gear Bolt—9 1/4 Axle . . 157 N·m (115 ft. lbs.)
Backing Plate Bolt .......... 64N·m(48ft.lbs.)
RWAL/ABS Sensor Bolt ...... 24N·m(18. ft. lbs.)
Threaded Adjuster Lock Screw . . 10 N·m (90 in. lbs.)

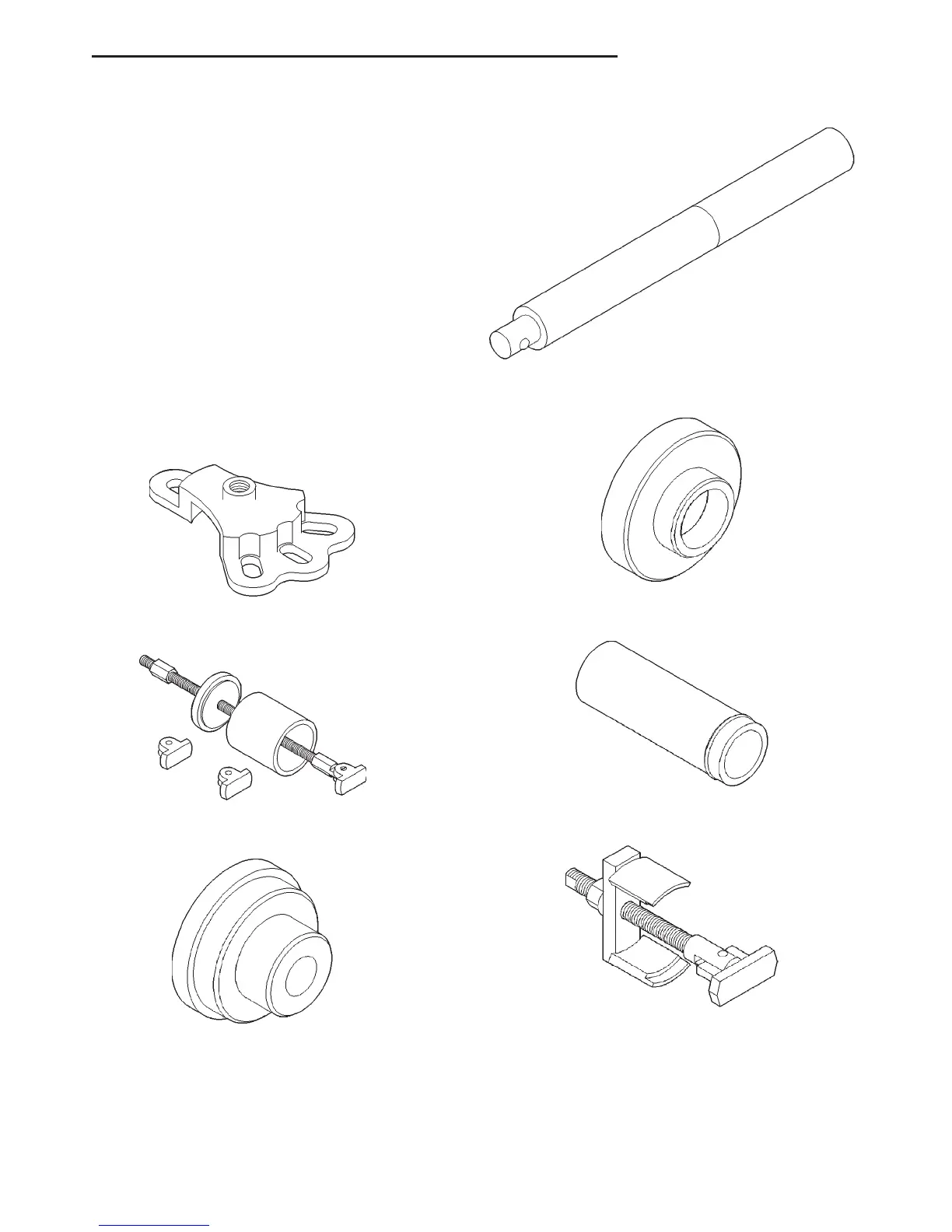

SPECIAL TOOLS
8 1/4 AND 9 1/4 AXLES
Puller, Hub—6790
Remover, Bearing—6310
Installer—C-4198
Handle—C-4171
Installer—C-4076-B
Handle—C-4735-1
Remover—C-4828
DN 8 1/4 AND 9 1/4 AXLE 3 - 99
