(5) On 4.7L engines only, remove the nut and
washer that secures the right engine-to-body ground
strap eyelet terminal and the wire harness grounds
to the weld stud on the right front fender wheelhouse
inner panel (Fig. 19).
(6) On 4.7L engines only, remove the screw and
washer that secures the right engine-to-body ground
strap eyelet terminal to the transmission at the right
rear corner of the engine block (Fig. 20).
(7) On 5.2L and 5.9L engines only, remove the nut
and washer that secures the right engine-to-body
ground strap eyelet terminal to the inboard rear
valve cover stud of the right cylinder head (Fig. 18).
(8) Remove the engine-to-body ground strap(s)
from the engine compartment.
EXHAUST SYSTEM-TO-BODY GROUND STRAP - 4.7L ENGINE
ONLY
(1) Raise and support the vehicle.
(2) Remove the nut and washer that secures the
exhaust system-to-body ground strap eyelet terminal
to the exhaust pipe clamp (Fig. 21).
(3) Remove the screw that secures the exhaust
system-to-body ground strap eyelet terminal to the
right body sill panel.

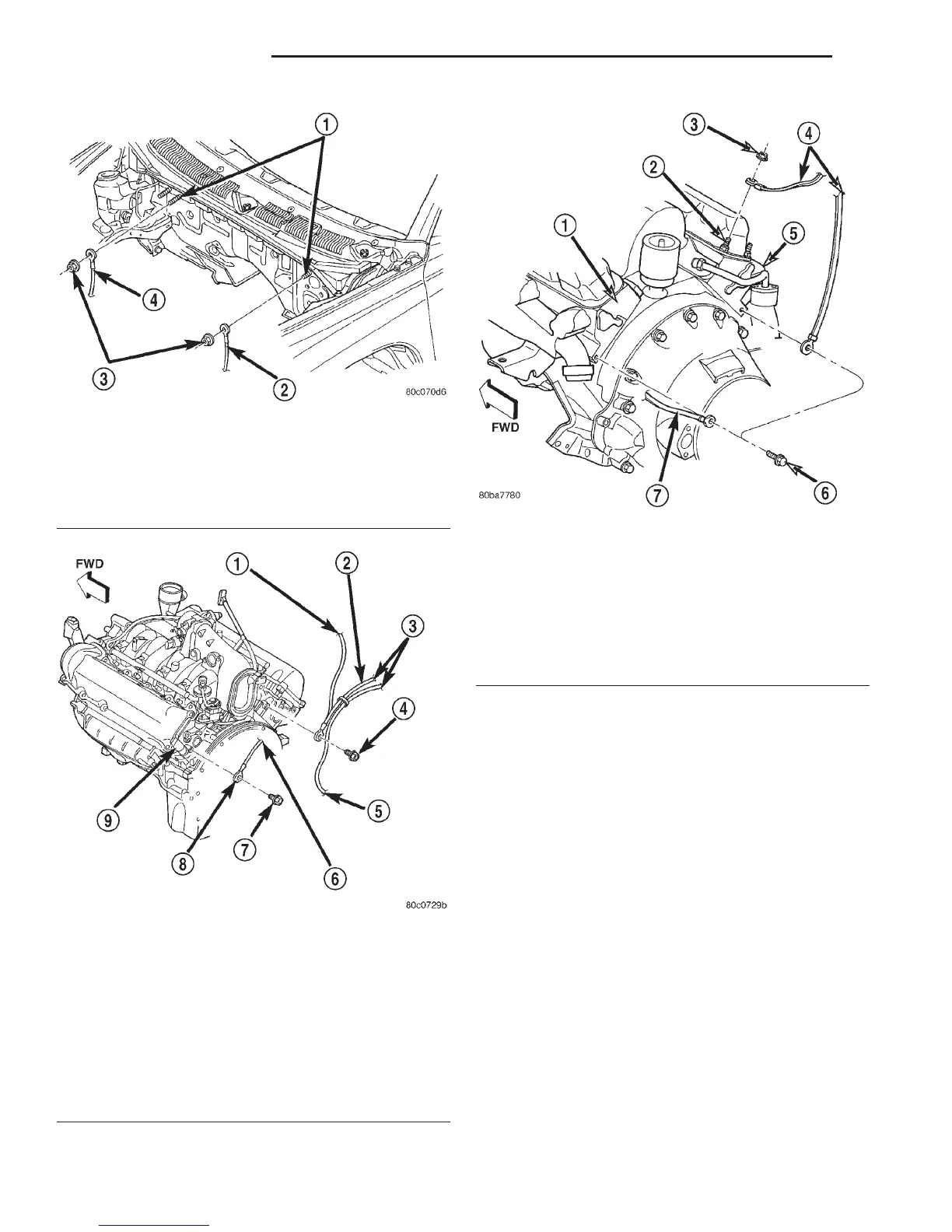

Fig. 16 Engine-To-Body Ground Strap Remove/
Install - Typical
1 – WELD STUDS
2 – LEFT GROUND STRAP
3 – NUT AND WASHER (2)
4 – RIGHT GROUND STRAP
Fig. 17 Engine-To-Body Ground Strap Remove/
Install - 4.7L Engine Only
1 – TO RIGHT COWL STUD
2 – RIGHT GROUND STRAP
3 – TO RIGHT FENDER STUD
4 – SCREW
5 – TO TRANSMISSION
6 – TO LEFT COWL STUD
7 – SCREW
8 – LEFT GROUND STRAP
9 – LEFT CYLINDER HEAD
Fig. 18 Engine-To-Body Ground Strap Remove/
Install - 5.2L & 5.9L Engine Only
1 – LEFT CYLINDER HEAD
2 – STUD
3 – NUT
4 – RIGHT GROUND STRAP
5 – RIGHT CYLINDER HEAD
6 – SCREW (2)
7 – LEFT GROUND STRAP
